Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CJP1000J100RJCJP 1000W 100R 5% LEAD |
6,420 |
|
Datasheet |
CJP | Rectangular, Wire Leads | Box | Active | 100 Ohms | ±5% | 1000W | Wirewound | ±200ppm/°C | -25°C ~ 250°C | - | Aluminum | Flanges | 15.748" L x 2.362" W (400.00mm x 60.00mm) | 1.220" (31.00mm) | Wire Leads | - | - | - |
|
TE1500B1K5JRES CHAS MNT 1.5K OHM 5% 1500W |
3,694 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.5 kOhms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
TE1500B27RJRES CHAS MNT 27 OHM 5% 1500W |
2,266 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 27 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
TE1500B82RJRES CHAS MNT 82 OHM 5% 1500W |
9,148 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 82 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
502BA104KDG210W 700J 100K OHMS 10% SLAB |
2,802 |
|
Datasheet |
500 | Radial, Flat Oval | Box | Active | 100 kOhms | ±10% | 10W | Ceramic | 0/ -2000ppm/°C | -55°C ~ 230°C | Moisture Resistant, Non-Inductive, Pulse Withstanding | - | Brackets (not included) | 2.000" L x 0.252" W (50.80mm x 6.40mm) | 1.500" (38.10mm) | Solder Lugs | - | - | - |
|
|
TE1500B18RJRES CHAS MNT 18 OHM 5% 1500W |
8,266 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 18 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
TE1500B470RJRES CHAS MNT 470 OHM 5% 1500W |
2,922 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 470 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
|
TE1500B1K0JRES CHAS MNT 1K OHM 5% 1500W |
4,504 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1 kOhms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
HCH165J22RJHCH165 200W 22R 5% LEAD |
4,916 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 22 Ohms | ±5% | 200W | Wirewound | ±200ppm/°C | 320°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 6.496" L x 2.362" W (165.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
RBEF03007R000KFB00RES CHAS MNT 7 OHM 10% 300W |
3,058 |
|
Datasheet |
RBEF | Radial, Tubular | Bulk | Active | 7 Ohms | ±10% | 300W | Wirewound | - | -55°C ~ 415°C | Pulse Withstanding | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 8.500" L (28.58mm x 215.90mm) | - | Solder Lugs | - | - | - |
|
BAB11601R00KE1 OHMS 10% 500 WATT CASE |
7,216 |
|
Datasheet |
BA | Radial, Rectangular Case | Bulk | Active | 1 Ohms | ±10% | 500W | Wirewound | - | - | - | Aluminum | Flanges | 6.299" L x 3.740" W (160.00mm x 95.00mm) | 1.181" (30.00mm) | Wire Leads | - | - | - |
|
|
BAB1160R500KERES CHAS MNT 0.5 OHM 10% 500W |
9,900 |
|
Datasheet |
BA | Radial, Rectangular Case | Bulk | Active | 500 mOhms | ±10% | 500W | Wirewound | - | - | - | Aluminum | Flanges | 6.299" L x 3.740" W (160.00mm x 95.00mm) | 1.181" (30.00mm) | Wire Leads | - | - | - |
|
SHL1-1K0C075DERES CHAS MNT 75 UOHM 0.5% |
6,204 |
|
Datasheet |
S | Rectangular Case - Open | Bulk | Active | 75 µOhms | ±0.5% | 75W | Metal Element | - | -25°C ~ 85°C | Current Sense | - | Flanges | 6.693" L x 2.362" W (170.00mm x 60.00mm) | 1.614" (41.00mm) | 4-Terminal | - | - | - |
|
|
TE1500B2R7JRES CHAS MNT 2.7 OHM 5% 1500W |
6,174 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 2.7 Ohms | ±5% | 1500W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|
RTOP200V4R70JBSFERNICE FIXED RESISTORS |
9,124 |
|
Datasheet |
RTOP | SOT-227-4 | Box | Active | 4.7 Ohms | ±5% | 200W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | Non-Inductive | Aluminum | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.508" (12.90mm) | M4 Threaded | - | - | - |
|

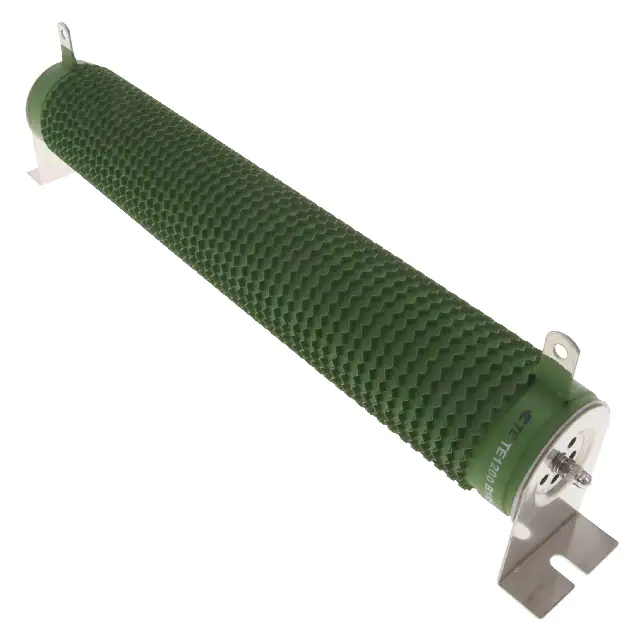

TE1200B1R5JRES CHAS MNT 1.5 OHM 5% 1200W |
2,508 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 1.5 Ohms | ±5% | 1200W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 16.339" L (60.00mm x 415.00mm) | - | Solder Lugs | - | - | - |
|

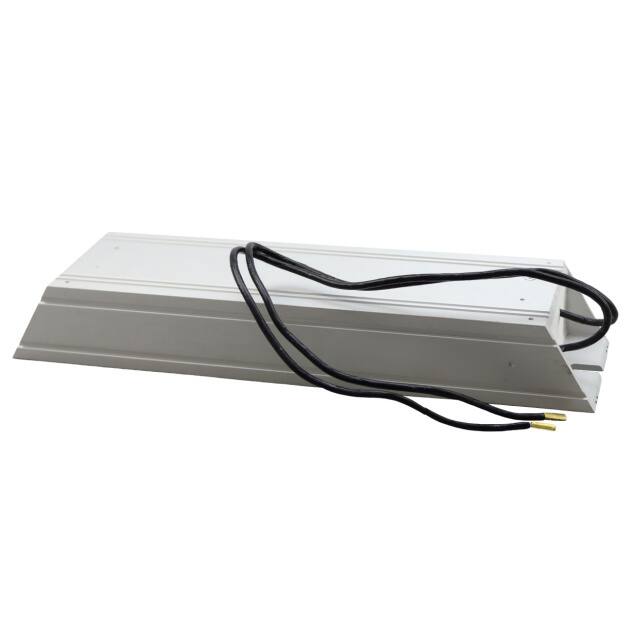

HCH265J33RJHCH265 400W 33R 5% LEAD |
9,164 |
|
Datasheet |
HCH | Rectangular Case | Box | Active | 33 Ohms | ±5% | 400W | Wirewound | ±200ppm/°C | 350°C | Pulse Withstanding, IP54 | Aluminum | Flanges | 10.433" L x 2.362" W (265.00mm x 60.00mm) | 1.260" (32.00mm) | Wire Leads | - | - | - |
|
|
510SP101KG2150W 1400J 100 OHMS 10% SLAB |
8,062 |
|
Datasheet |
500 | Radial, Flat Oval | Box | Active | 100 Ohms | ±10% | 150W | Ceramic | 0/ -800ppm/°C | -55°C ~ 350°C | Moisture Resistant, Non-Inductive, Pulse Withstanding | - | Brackets (not included) | 10.000" L x 0.252" W (254.00mm x 6.40mm) | 1.500" (38.10mm) | Solder Lugs | - | - | - |
|
TE2000B120RJRES CHAS MNT 120 OHM 5% 2000W |
8,480 |
|
Datasheet |
TE, CGS | Radial, Tubular | Bulk | Active | 120 Ohms | ±5% | 2000W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 2.362" Dia x 20.079" L (60.00mm x 510.00mm) | - | Solder Lugs | - | - | - |
|
LPSA800H1R00JBLPSA 800 H 1U 5% BO15 E |
5,396 |
|
Datasheet |
LPS 800 | Box | Box | Active | 1 Ohms | ±5% | 800W | Thick Film | ±500ppm/°C | -55°C ~ 175°C | Non-Inductive | - | Screw Holes | 2.362" L x 2.244" W (60.00mm x 57.00mm) | 1.055" (26.80mm) | M4 Threaded | - | Automotive | AEC-Q200 |
