    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    807-041-431-112

    807-041-431-112

    CONN EDGE SGL FML 41POS 0.156

    EDAC Inc.

    		 9,894
    RFQ
    		807-041-431-112

    Datasheet

         		807 Bulk Active Non Specified - Single Edge Female 41 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Copper Alloy Tin - Semi Bellows Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-039-558-102

    857-039-558-102

    CONN EDGE SGL FMALE 39POS 0.156

    EDAC Inc.

    		 8,116
    RFQ
    		857-039-558-102

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 39 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-018-421-101

    807-018-421-101

    CONN EDGE DUAL FMALE 36POS 0.156

    EDAC Inc.

    		 8,902
    RFQ
    		807-018-421-101

    Datasheet

         		807 Bulk Active Non Specified - Dual Edge Female 18 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Copper Alloy Tin - Semi Bellows Green - -40°C ~ 125°C
    857-039-558-104

    857-039-558-104

    CONN EDGE SGL FMALE 39POS 0.156

    EDAC Inc.

    		 2,156
    RFQ
    		857-039-558-104

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 39 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    807-041-445-112

    807-041-445-112

    CONN EDGE SGL FML 41POS 0.156

    EDAC Inc.

    		 6,080
    RFQ
    		807-041-445-112

    Datasheet

         		807 Bulk Active Non Specified - Single Edge Female 41 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Tin - Semi Bellows Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-039-559-104

    857-039-559-104

    CONN EDGE SGL FMALE 39POS 0.156

    EDAC Inc.

    		 5,932
    RFQ
    		857-039-559-104

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 39 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    842-043-540-108

    842-043-540-108

    CONN EDGE SINGLE FML 43POS 0.100

    EDAC Inc.

    		 9,420
    RFQ
    		842-043-540-108

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 43 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    842-043-524-107

    842-043-524-107

    CONN EDGE SINGLE FML 43POS 0.100

    EDAC Inc.

    		 3,304
    RFQ
    		842-043-524-107

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 43 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C

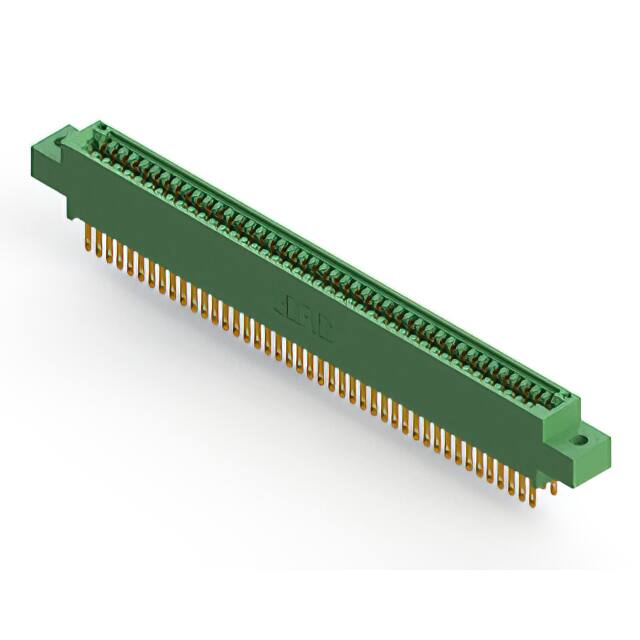

    845-086-500-802

    845-086-500-802

    CONN EDGE DUAL FMALE 86POS 0.100

    EDAC Inc.

    		 2,260
    RFQ
    		845-086-500-802

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 43 86 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    842-043-544-103

    842-043-544-103

    842 HIGH TEMP' SERIES (.100" (2.

    EDAC Inc.

    		 7,388
    RFQ
    		842-043-544-103

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 43 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    842-043-542-103

    842-043-542-103

    CONN EDGE SINGLE FML 43POS 0.100

    EDAC Inc.

    		 4,164
    RFQ
    		842-043-542-103

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 43 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    842-043-523-107

    842-043-523-107

    CONN EDGE SINGLE FML 43POS 0.100

    EDAC Inc.

    		 4,654
    RFQ
    		842-043-523-107

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 43 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    842-043-544-107

    842-043-544-107

    CONN EDGE SINGLE FML 43POS 0.100

    EDAC Inc.

    		 8,780
    RFQ
    		842-043-544-107

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 43 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    842-043-523-103

    842-043-523-103

    CONN EDGE SINGLE FML 43POS 0.100

    EDAC Inc.

    		 3,938
    RFQ
    		842-043-523-103

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 43 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    842-043-520-107

    842-043-520-107

    CONN EDGE SINGLE FML 43POS 0.100

    EDAC Inc.

    		 7,350
    RFQ
    		842-043-520-107

    Datasheet

         		842 Box Active Non Specified - Single Edge Female 43 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    892-054-541-108

    892-054-541-108

    CONN EDGE SINGLE FML 54POS 0.100

    EDAC Inc.

    		 6,940
    RFQ
    		892-054-541-108

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 54 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    892-054-544-107

    892-054-544-107

    CONN EDGE SINGLE FML 54POS 0.100

    EDAC Inc.

    		 2,650
    RFQ
    		892-054-544-107

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 54 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    892-054-523-103

    892-054-523-103

    CONN EDGE SINGLE FML 54POS 0.100

    EDAC Inc.

    		 6,428
    RFQ
    		892-054-523-103

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 54 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    892-054-540-108

    892-054-540-108

    CONN EDGE SGL FMALE 54POS 0.100

    EDAC Inc.

    		 6,190
    RFQ
    		892-054-540-108

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 54 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    892-054-542-107

    892-054-542-107

    CONN EDGE SINGLE FML 54POS 0.100

    EDAC Inc.

    		 9,670
    RFQ
    		892-054-542-107

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 54 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    Total 619256 Record«Prev1... 3041830419304203042130422304233042430425...30963Next»
