    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    857-048-456-207

    857-048-456-207

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 7,484
    RFQ
    		857-048-456-207

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    857-034-527-102

    857-034-527-102

    CONN EDGE SGL FMALE 34POS 0.156

    EDAC Inc.

    		 9,906
    RFQ
    		857-034-527-102

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 34 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-029-459-101

    857-029-459-101

    CONN EDGE SGL FML 29POS 0.156

    EDAC Inc.

    		 9,078
    RFQ
    		857-029-459-101

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 29 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black - -40°C ~ 125°C
    887-080-555-203

    887-080-555-203

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 5,670
    RFQ
    		887-080-555-203

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    857-048-458-207

    857-048-458-207

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 7,120
    RFQ
    		857-048-458-207

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    857-034-445-101

    857-034-445-101

    CONN EDGE SGL FML 34POS 0.156

    EDAC Inc.

    		 8,592
    RFQ
    		857-034-445-101

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 34 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Tin - Semi Bellows Black - -40°C ~ 125°C
    887-080-556-203

    887-080-556-203

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 3,602
    RFQ
    		887-080-556-203

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    887-080-558-803

    887-080-558-803

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 6,230
    RFQ
    		887-080-558-803

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C

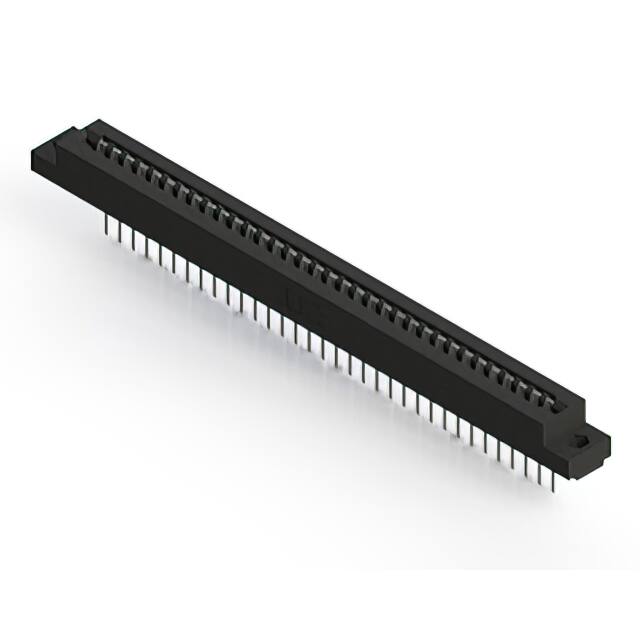

    857-034-447-104

    857-034-447-104

    CONN EDGE SGL FML 34POS 0.156

    EDAC Inc.

    		 2,352
    RFQ
    		857-034-447-104

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 34 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    857-048-556-203

    857-048-556-203

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 7,064
    RFQ
    		857-048-556-203

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    857-048-560-207

    857-048-560-207

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 2,270
    RFQ
    		857-048-560-207

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    857-029-458-104

    857-029-458-104

    CONN EDGE SGL FML 29POS 0.156

    EDAC Inc.

    		 4,160
    RFQ
    		857-029-458-104

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 29 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    857-034-547-102

    857-034-547-102

    CONN EDGE SGL FMALE 34POS 0.156

    EDAC Inc.

    		 3,986
    RFQ
    		857-034-547-102

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 34 34 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-048-459-207

    857-048-459-207

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 5,456
    RFQ
    		857-048-459-207

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    887-080-555-207

    887-080-555-207

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 5,318
    RFQ
    		887-080-555-207

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    887-080-556-803

    887-080-556-803

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 8,230
    RFQ
    		887-080-556-803

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    887-080-558-208

    887-080-558-208

    CONN EDGE DUAL FMALE 80POS 0.156

    EDAC Inc.

    		 7,190
    RFQ
    		887-080-558-208

    Datasheet

         		887 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    857-048-460-208

    857-048-460-208

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 9,264
    RFQ
    		857-048-460-208

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    857-048-560-203

    857-048-560-203

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 6,748
    RFQ
    		857-048-560-203

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    857-048-455-208

    857-048-455-208

    CONN EDGE DUAL FMALE 48POS 0.156

    EDAC Inc.

    		 3,946
    RFQ
    		857-048-455-208

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 24 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    Total 619256 Record«Prev1... 2967929680296812968229683296842968529686...30963Next»
