Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSC65DTEFCONN EDGE DUAL FML 130POS 0.100 |
3,546 |
|
Datasheet |
- | Tube | Active | Non Specified - Dual Edge | Female | 65 | 130 | 0.062" (1.57mm) | 2 | 0.100" (2.54mm) | Dual | - | Panel Mount | Solder Eyelet(s) | Beryllium Copper | Gold | 10.0µin (0.25µm) | Full Bellows | Blue | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -65°C ~ 125°C |
|
807-064-455-207CONN EDGE DUAL FMALE 64POS 0.156 |
3,062 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 32 | 64 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|

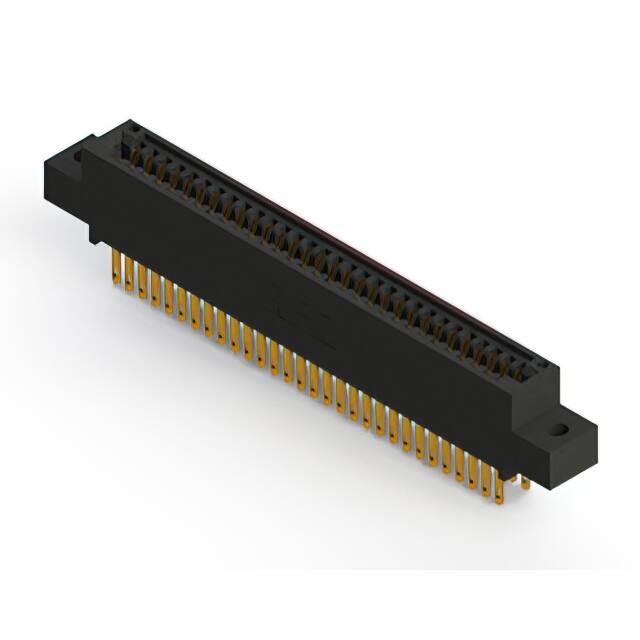

895-060-500-502CONN EDGE DUAL FMALE 60POS 0.100 |
2,678 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 30 | 60 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

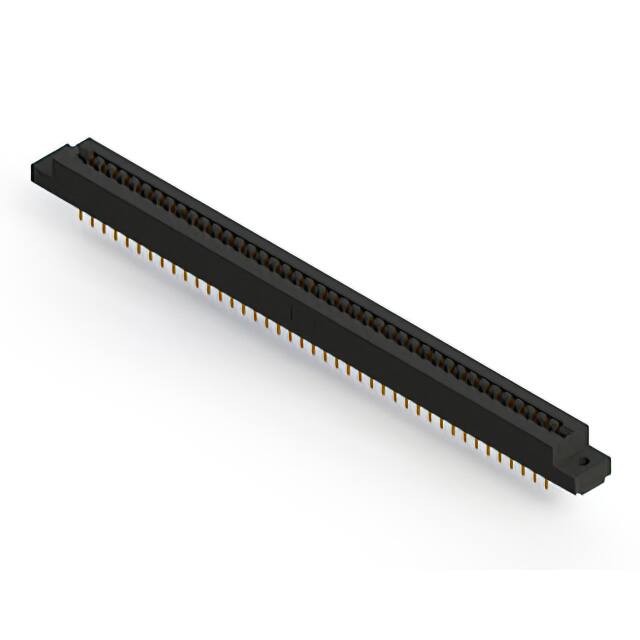

857-082-520-202CONN EDGE DUAL FMALE 82POS 0.156 |
2,200 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
895-060-500-504CONN EDGE DUAL FMALE 60POS 0.100 |
8,970 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 30 | 60 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
807-084-440-201CONN EDGE DUAL FMALE 84POS 0.156 |
4,254 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Green | - | -40°C ~ 125°C |
|

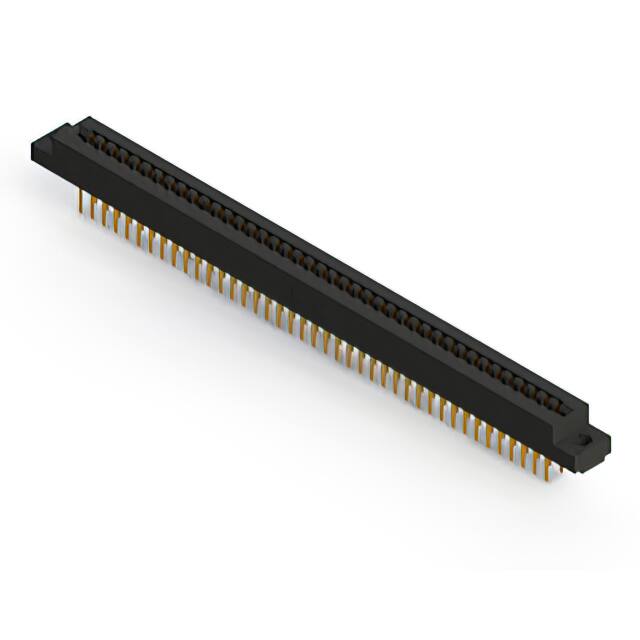

857-082-540-204CONN EDGE DUAL FMALE 82POS 0.156 |
8,358 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
895-035-500-101CONN EDGE SINGLE FML 35POS 0.100 |
3,030 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Single Edge | Female | 35 | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
807-076-442-212CONN EDGE DUAL FMALE 76POS 0.156 |
4,074 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 38 | 76 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Green | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
895-060-500-802CONN EDGE DUAL FMALE 60POS 0.100 |
9,280 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 30 | 60 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

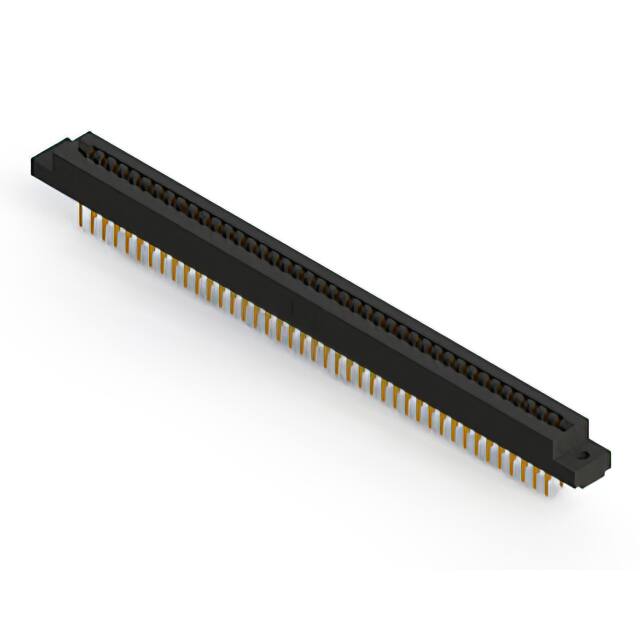

857-082-522-202CONN EDGE DUAL FMALE 82POS 0.156 |
8,182 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-076-440-212CONN EDGE DUAL FMALE 76POS 0.156 |
3,074 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 38 | 76 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Green | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-084-422-204CONN EDGE DUAL FMALE 84POS 0.156 |
4,818 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-082-420-201CONN EDGE DUAL FMALE 82POS 0.156 |
4,876 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|

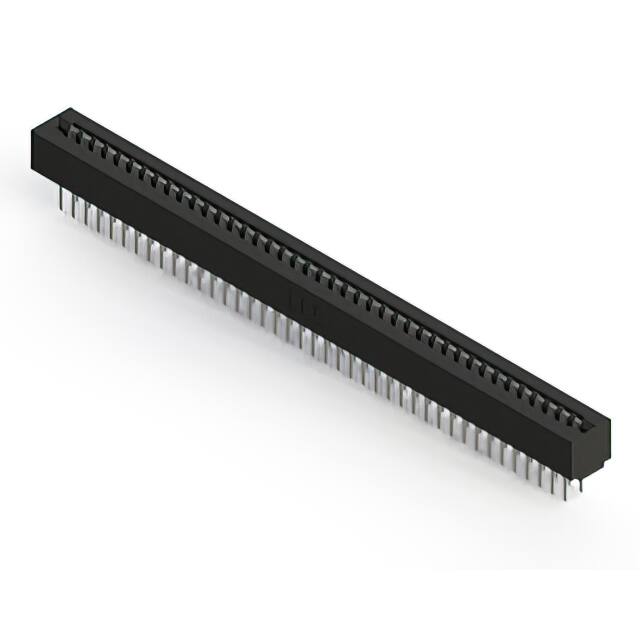

857-082-442-201CONN EDGE DUAL FMALE 82POS 0.156 |
7,924 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
807-076-420-212CONN EDGE DUAL FMALE 76POS 0.156 |
6,996 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 38 | 76 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-084-442-204CONN EDGE DUAL FMALE 84POS 0.156 |
9,206 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
807-084-422-202CONN EDGE DUAL FMALE 84POS 0.156 |
7,042 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-084-420-202CONN EDGE DUAL FMALE 84POS 0.156 |
5,592 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

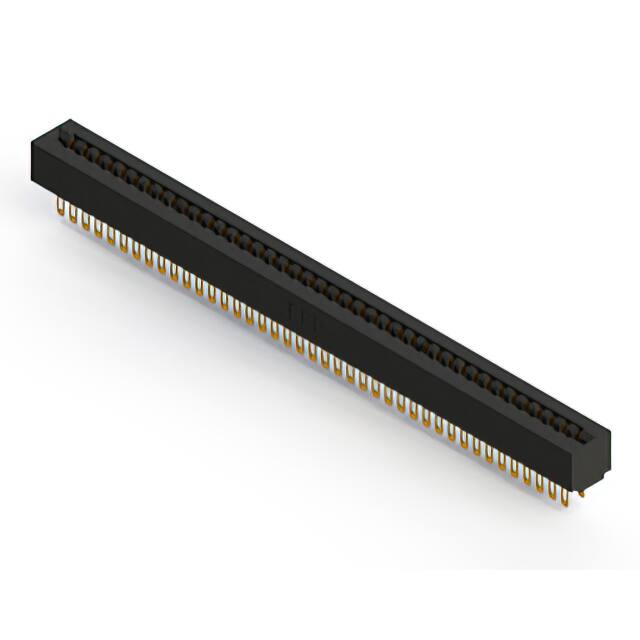

857-082-500-201CONN EDGE DUAL FMALE 82POS 0.156 |
4,838 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
