    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    845-106-555-512

    845-106-555-512

    CONN EDGE DUAL FML 106POS 0.100

    EDAC Inc.

    		 9,000
    RFQ
    		845-106-555-512

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 53 106 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    842-114-542-202

    842-114-542-202

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 5,182
    RFQ
    		842-114-542-202

    Datasheet

         		842 Box Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

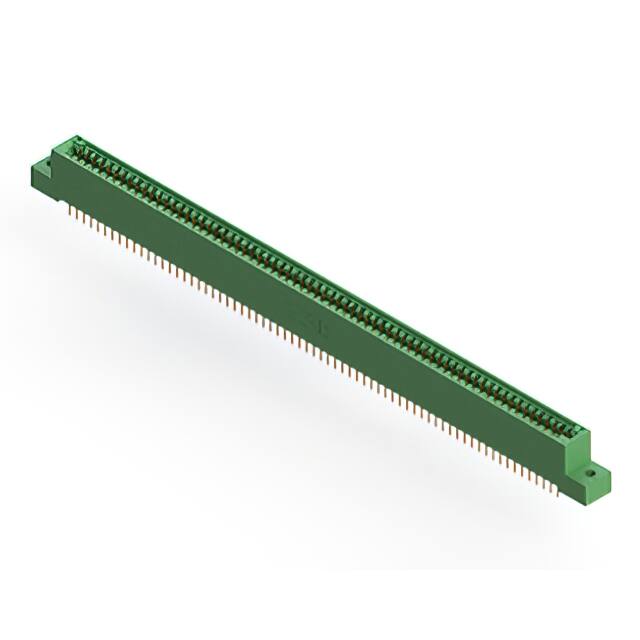

    845-138-524-202

    845-138-524-202

    CONN EDGE DUAL FML 138POS 0.100

    EDAC Inc.

    		 4,908
    RFQ
    		845-138-524-202

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 69 138 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-138-521-504

    845-138-521-504

    CONN EDGE DUAL FML 138POS 0.100

    EDAC Inc.

    		 6,996
    RFQ
    		845-138-521-504

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 69 138 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    845-138-520-504

    845-138-520-504

    CONN EDGE DUAL FML 138POS 0.100

    EDAC Inc.

    		 2,254
    RFQ
    		845-138-520-504

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 69 138 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    845-106-556-812

    845-106-556-812

    CONN EDGE DUAL FML 106POS 0.100

    EDAC Inc.

    		 4,288
    RFQ
    		845-106-556-812

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 53 106 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-106-559-212

    845-106-559-212

    CONN EDGE DUAL FML 106POS 0.100

    EDAC Inc.

    		 4,682
    RFQ
    		845-106-559-212

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 53 106 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

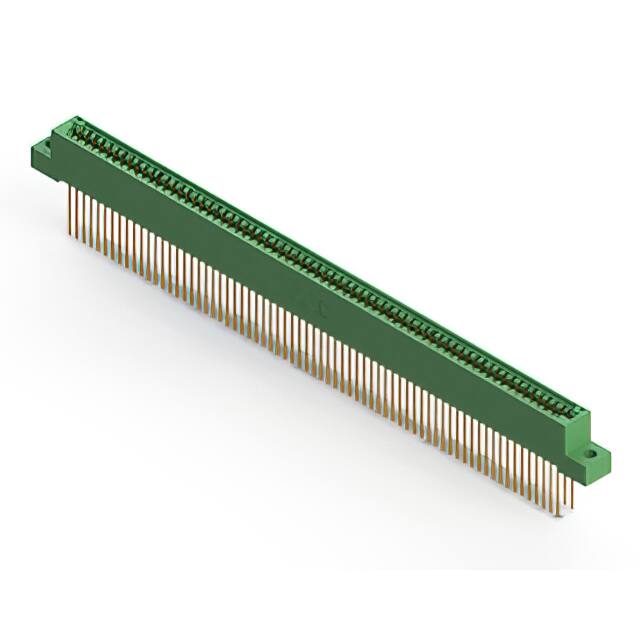

    845-138-542-204

    845-138-542-204

    CONN EDGE DUAL FML 138POS 0.100

    EDAC Inc.

    		 8,540
    RFQ
    		845-138-542-204

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 69 138 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    845-138-541-802

    845-138-541-802

    CONN EDGE DUAL FML 138POS 0.100

    EDAC Inc.

    		 2,658
    RFQ
    		845-138-541-802

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 69 138 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    896-080-500-212

    896-080-500-212

    CONN EDGE DUAL FMALE 80POS 0.125

    EDAC Inc.

    		 9,668
    RFQ
    		896-080-500-212

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 40 80 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-024-459-107

    807-024-459-107

    CONN EDGE SGL FML 24POS 0.156

    EDAC Inc.

    		 6,366
    RFQ
    		807-024-459-107

    Datasheet

         		807 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Green Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C

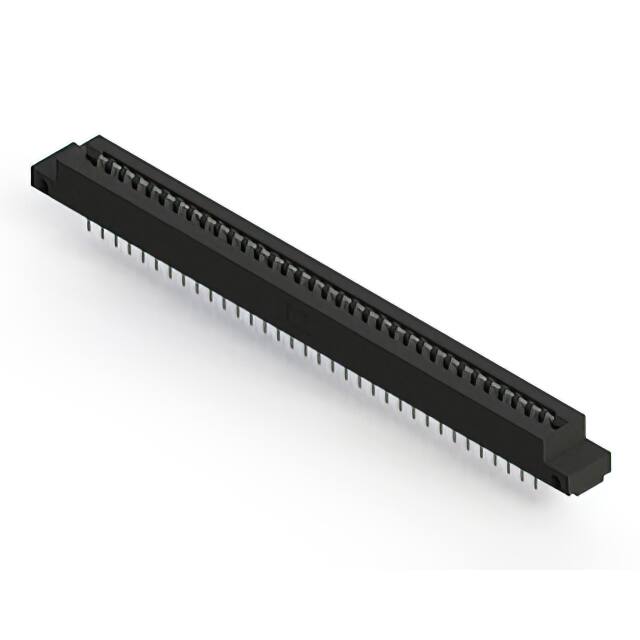

    857-068-420-212

    857-068-420-212

    CONN EDGE DUAL FMALE 68POS 0.156

    EDAC Inc.

    		 8,834
    RFQ
    		857-068-420-212

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 34 68 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Copper Alloy Tin - Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

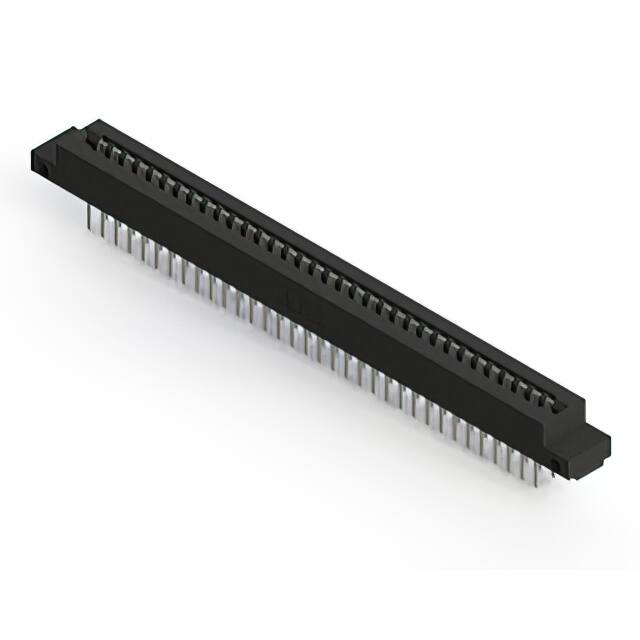

    857-068-442-212

    857-068-442-212

    CONN EDGE DUAL FMALE 68POS 0.156

    EDAC Inc.

    		 7,066
    RFQ
    		857-068-442-212

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 34 68 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Wire Wrap Copper Alloy Tin - Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-008-453-108

    807-008-453-108

    CONN EDGE DUAL FMALE 16POS 0.156

    EDAC Inc.

    		 6,830
    RFQ
    		807-008-453-108

    Datasheet

         		807 Bulk Active Non Specified - Dual Edge Female 8 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Green Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    857-068-500-212

    857-068-500-212

    CONN EDGE DUAL FMALE 68POS 0.156

    EDAC Inc.

    		 2,954
    RFQ
    		857-068-500-212

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 34 68 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-068-440-212

    857-068-440-212

    CONN EDGE DUAL FMALE 68POS 0.156

    EDAC Inc.

    		 8,278
    RFQ
    		857-068-440-212

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 34 68 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Wire Wrap Copper Alloy Tin - Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

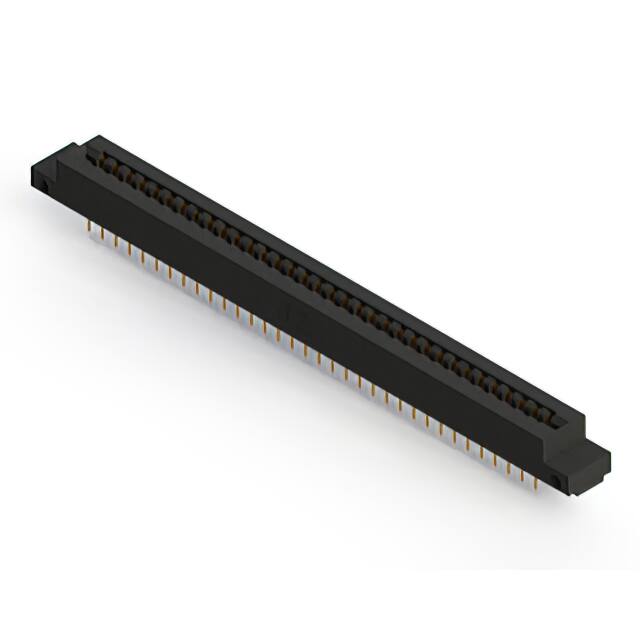

    857-068-524-212

    857-068-524-212

    CONN EDGE DUAL FMALE 68POS 0.156

    EDAC Inc.

    		 6,532
    RFQ
    		857-068-524-212

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 34 68 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-024-458-108

    807-024-458-108

    CONN EDGE SGL FML 24POS 0.156

    EDAC Inc.

    		 5,826
    RFQ
    		807-024-458-108

    Datasheet

         		807 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Green Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    807-008-453-103

    807-008-453-103

    CONN EDGE DUAL FMALE 16POS 0.156

    EDAC Inc.

    		 7,532
    RFQ
    		807-008-453-103

    Datasheet

         		807 Bulk Active Non Specified - Dual Edge Female 8 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C

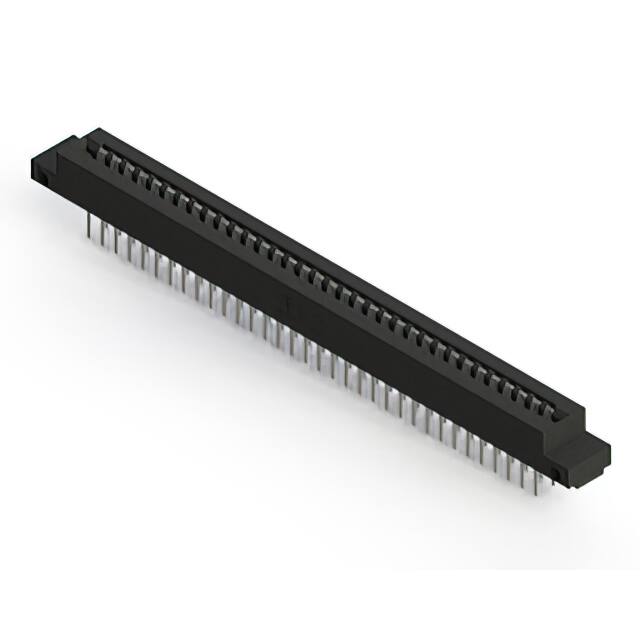

    857-068-422-212

    857-068-422-212

    CONN EDGE DUAL FMALE 68POS 0.156

    EDAC Inc.

    		 2,182
    RFQ
    		857-068-422-212

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 34 68 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Solder Copper Alloy Tin - Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    Total 619256 Record«Prev1... 2954029541295422954329544295452954629547...30963Next»
