    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    895-060-520-612

    895-060-520-612

    CONN EDGE SINGLE FML 60POS 0.100

    EDAC Inc.

    		 9,024
    RFQ
    		895-060-520-612

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 60 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-060-523-412

    895-060-523-412

    CONN EDGE SINGLE FML 60POS 0.100

    EDAC Inc.

    		 3,374
    RFQ
    		895-060-523-412

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 60 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-060-521-412

    895-060-521-412

    CONN EDGE SINGLE FML 60POS 0.100

    EDAC Inc.

    		 3,794
    RFQ
    		895-060-521-412

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 60 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-060-525-112

    845-060-525-112

    CONN EDGE SINGLE FML 60POS 0.100

    EDAC Inc.

    		 6,848
    RFQ
    		845-060-525-112

    Datasheet

         		845 Bulk Active Non Specified - Single Edge Female 60 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    892-024-500-102

    892-024-500-102

    CONN EDGE SINGLE FML 24POS 0.100

    EDAC Inc.

    		 4,862
    RFQ
    		892-024-500-102

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-058-500-202

    895-058-500-202

    CONN EDGE DUAL FMALE 58POS 0.100

    EDAC Inc.

    		 9,770
    RFQ
    		895-058-500-202

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 29 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-058-500-204

    895-058-500-204

    CONN EDGE DUAL FMALE 58POS 0.100

    EDAC Inc.

    		 8,258
    RFQ
    		895-058-500-204

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 29 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    895-060-540-612

    895-060-540-612

    CONN EDGE SINGLE FML 60POS 0.100

    EDAC Inc.

    		 9,986
    RFQ
    		895-060-540-612

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 60 60 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    892-024-500-101

    892-024-500-101

    CONN EDGE SINGLE FML 24POS 0.100

    EDAC Inc.

    		 7,154
    RFQ
    		892-024-500-101

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black - -40°C ~ 125°C

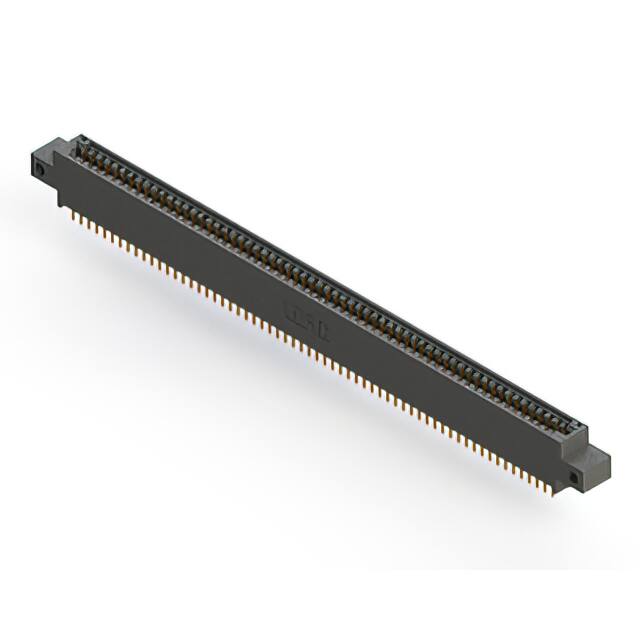

    895-124-521-812

    895-124-521-812

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 3,816
    RFQ
    		895-124-521-812

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-124-541-512

    895-124-541-512

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 3,620
    RFQ
    		895-124-541-512

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    896-096-560-812

    896-096-560-812

    CONN EDGE DUAL FMALE 96POS 0.125

    EDAC Inc.

    		 4,650
    RFQ
    		896-096-560-812

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 48 96 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

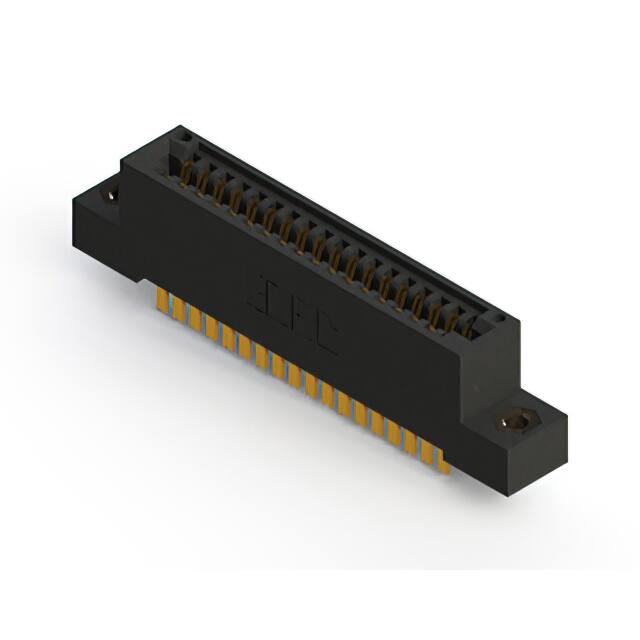

    895-036-500-207

    895-036-500-207

    CONN EDGE DUAL FMALE 36POS 0.100

    EDAC Inc.

    		 2,390
    RFQ
    		895-036-500-207

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 18 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    896-096-555-212

    896-096-555-212

    CONN EDGE DUAL FMALE 96POS 0.125

    EDAC Inc.

    		 4,002
    RFQ
    		896-096-555-212

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 48 96 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual Card Extender Board Edge, Straddle Mount Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-032-547-101

    857-032-547-101

    CONN EDGE SGL FMALE 32POS 0.156

    EDAC Inc.

    		 2,838
    RFQ
    		857-032-547-101

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 32 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black - -40°C ~ 125°C
    895-054-500-503

    895-054-500-503

    CONN EDGE DUAL FMALE 54POS 0.100

    EDAC Inc.

    		 8,190
    RFQ
    		895-054-500-503

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 27 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    857-032-505-104

    857-032-505-104

    CONN EDGE SGL FMALE 32POS 0.156

    EDAC Inc.

    		 6,438
    RFQ
    		857-032-505-104

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 32 32 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    896-096-556-812

    896-096-556-812

    CONN EDGE DUAL FMALE 96POS 0.125

    EDAC Inc.

    		 5,616
    RFQ
    		896-096-556-812

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 48 96 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    896-096-556-212

    896-096-556-212

    CONN EDGE DUAL FMALE 96POS 0.125

    EDAC Inc.

    		 6,768
    RFQ
    		896-096-556-212

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 48 96 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-124-525-812

    845-124-525-812

    CONN EDGE DUAL FML 124POS 0.100

    EDAC Inc.

    		 6,990
    RFQ
    		845-124-525-812

    Datasheet

         		845 Bulk Active Non Specified - Dual Edge Female 62 124 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    Total 619256 Record«Prev1... 2945429455294562945729458294592946029461...30963Next»
