Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
857-078-458-202CONN EDGE DUAL FMALE 78POS 0.156 |
4,224 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-078-459-201CONN EDGE DUAL FMALE 78POS 0.156 |
6,512 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-034-427-112CONN EDGE SGL FML 34POS 0.156 |
9,886 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 34 | 34 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-078-558-204CONN EDGE DUAL FMALE 78POS 0.156 |
3,900 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-078-556-202CONN EDGE DUAL FMALE 78POS 0.156 |
3,842 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-078-556-201CONN EDGE DUAL FMALE 78POS 0.156 |
5,506 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
|
892-017-500-107CONN EDGE SINGLE FML 17POS 0.100 |
6,010 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 17 | 17 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
857-029-559-112CONN EDGE SGL FMALE 29POS 0.156 |
3,532 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-078-460-202CONN EDGE DUAL FMALE 78POS 0.156 |
5,626 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-078-555-202CONN EDGE DUAL FMALE 78POS 0.156 |
7,542 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
ASC43DTEHCONN EDGE DUAL FMALE 86POS 0.100 |
2,828 |
|
Datasheet |
- | Tube | Active | Non Specified - Dual Edge | Female | 43 | 86 | 0.062" (1.57mm) | 2 | 0.100" (2.54mm) | Dual | - | Panel Mount | Solder Eyelet(s) | Beryllium Copper | Gold | 10.0µin (0.25µm) | Full Bellows | Green | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | -65°C ~ 150°C |
|
887-084-559-202CONN EDGE DUAL FMALE 84POS 0.156 |
5,520 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-030-405-102CONN EDGE SGL FML 30POS 0.156 |
9,116 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 30 | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-030-427-102CONN EDGE SGL FML 30POS 0.156 |
3,024 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 30 | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-030-427-101CONN EDGE SGL FML 30POS 0.156 |
9,770 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 30 | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | - | -40°C ~ 125°C |
|
807-030-431-102CONN EDGE SGL FML 30POS 0.156 |
5,776 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 30 | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

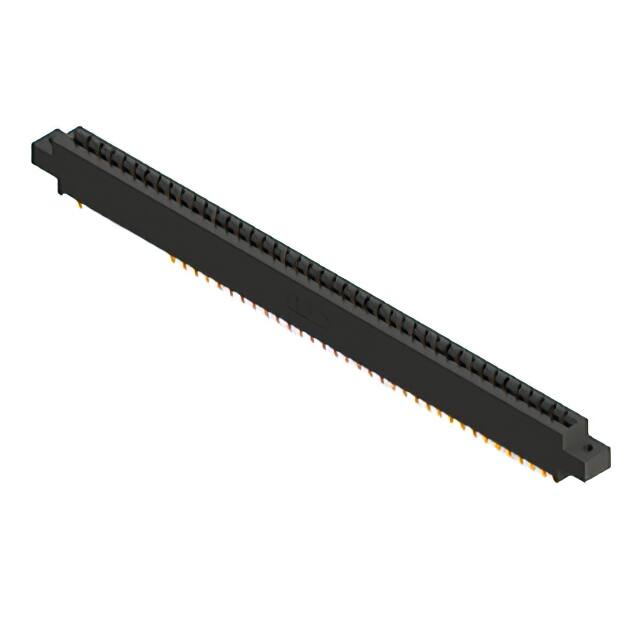

887-084-560-802CONN EDGE DUAL FMALE 84POS 0.156 |
5,572 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
887-084-555-802CONN EDGE DUAL FMALE 84POS 0.156 |
8,530 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

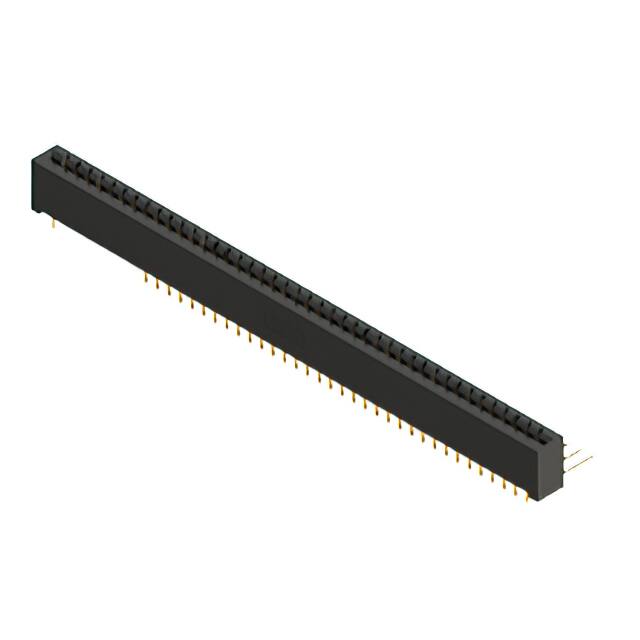

887-084-558-201CONN EDGE DUAL FMALE 84POS 0.156 |
7,938 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
887-084-558-204CONN EDGE DUAL FMALE 84POS 0.156 |
4,100 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
