    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    857-007-557-112

    857-007-557-112

    CONN EDGE DUAL FMALE 14POS 0.156

    EDAC Inc.

    		 8,960
    RFQ
    		857-007-557-112

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 7 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    896-098-522-203

    896-098-522-203

    CONN EDGE DUAL FMALE 98POS 0.125

    EDAC Inc.

    		 3,298
    RFQ
    		896-098-522-203

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    896-098-522-808

    896-098-522-808

    CONN EDGE DUAL FMALE 98POS 0.125

    EDAC Inc.

    		 3,610
    RFQ
    		896-098-522-808

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C

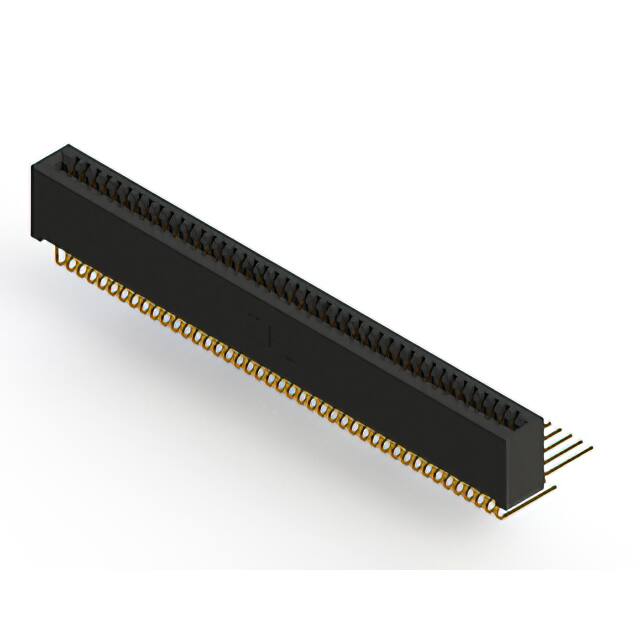

    892-086-559-201

    892-086-559-201

    CONN EDGE DUAL FMALE 86POS 0.100

    EDAC Inc.

    		 6,154
    RFQ
    		892-086-559-201

    Datasheet

         		892 Bulk Active Non Specified - Dual Edge Female 43 86 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black - -40°C ~ 125°C
    896-098-541-803

    896-098-541-803

    CONN EDGE DUAL FMALE 98POS 0.125

    EDAC Inc.

    		 9,944
    RFQ
    		896-098-541-803

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    857-007-457-112

    857-007-457-112

    CONN EDGE DUAL FMALE 14POS 0.156

    EDAC Inc.

    		 5,254
    RFQ
    		857-007-457-112

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 7 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    896-098-540-208

    896-098-540-208

    CONN EDGE DUAL FMALE 98POS 0.125

    EDAC Inc.

    		 2,446
    RFQ
    		896-098-540-208

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    896-086-559-812

    896-086-559-812

    CONN EDGE DUAL FMALE 86POS 0.125

    EDAC Inc.

    		 2,466
    RFQ
    		896-086-559-812

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 43 86 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    892-086-556-202

    892-086-556-202

    CONN EDGE DUAL FMALE 86POS 0.100

    EDAC Inc.

    		 2,990
    RFQ
    		892-086-556-202

    Datasheet

         		892 Bulk Active Non Specified - Dual Edge Female 43 86 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-007-454-112

    857-007-454-112

    CONN EDGE DUAL FMALE 14POS 0.156

    EDAC Inc.

    		 5,558
    RFQ
    		857-007-454-112

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 7 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    892-086-560-204

    892-086-560-204

    CONN EDGE DUAL FMALE 86POS 0.100

    EDAC Inc.

    		 8,822
    RFQ
    		892-086-560-204

    Datasheet

         		892 Bulk Active Non Specified - Dual Edge Female 43 86 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C

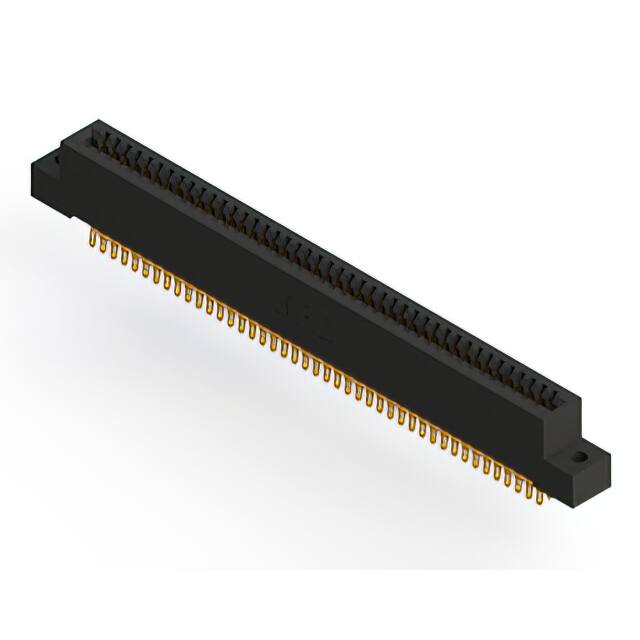

    892-086-555-202

    892-086-555-202

    CONN EDGE DUAL FMALE 86POS 0.100

    EDAC Inc.

    		 9,432
    RFQ
    		892-086-555-202

    Datasheet

         		892 Bulk Active Non Specified - Dual Edge Female 43 86 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-042-500-203

    845-042-500-203

    CONN EDGE DUAL FMALE 42POS 0.100

    EDAC Inc.

    		 2,698
    RFQ
    		845-042-500-203

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 21 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    845-042-500-807

    845-042-500-807

    CONN EDGE DUAL FMALE 42POS 0.100

    EDAC Inc.

    		 7,190
    RFQ
    		845-042-500-807

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 21 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, M3 -40°C ~ 125°C
    845-042-500-508

    845-042-500-508

    CONN EDGE DUAL FMALE 42POS 0.100

    EDAC Inc.

    		 9,860
    RFQ
    		845-042-500-508

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 21 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    846-088-500-208

    846-088-500-208

    CONN EDGE DUAL FMALE 88POS 0.125

    EDAC Inc.

    		 9,732
    RFQ
    		846-088-500-208

    Datasheet

         		846 Box Active Non Specified - Dual Edge Female 44 88 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    845-042-500-507

    845-042-500-507

    CONN EDGE DUAL FMALE 42POS 0.100

    EDAC Inc.

    		 9,084
    RFQ
    		845-042-500-507

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 21 42 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, M3 -40°C ~ 125°C
    846-088-500-808

    846-088-500-808

    CONN EDGE DUAL FMALE 88POS 0.125

    EDAC Inc.

    		 6,222
    RFQ
    		846-088-500-808

    Datasheet

         		846 Box Active Non Specified - Dual Edge Female 44 88 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    837-023-500-112

    837-023-500-112

    CONN EDGE SGL FMALE 23POS 0.156

    EDAC Inc.

    		 9,860
    RFQ
    		837-023-500-112

    Datasheet

         		837 Box Active Non Specified - Single Edge Female 23 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    833-023-500-112

    833-023-500-112

    CONN EDGE SGL FMALE 23POS 0.156

    EDAC Inc.

    		 4,636
    RFQ
    		833-023-500-112

    Datasheet

         		833 Box Active Non Specified - Single Edge Female 23 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    Total 619256 Record«Prev1... 2911229113291142911529116291172911829119...30963Next»
