Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
857-088-422-204CONN EDGE DUAL FMALE 88POS 0.156 |
6,948 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-088-422-201CONN EDGE DUAL FMALE 88POS 0.156 |
9,814 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-088-420-204CONN EDGE DUAL FMALE 88POS 0.156 |
2,224 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-088-522-202CONN EDGE DUAL FMALE 88POS 0.156 |
3,682 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-088-540-201CONN EDGE DUAL FMALE 88POS 0.156 |
9,740 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
|

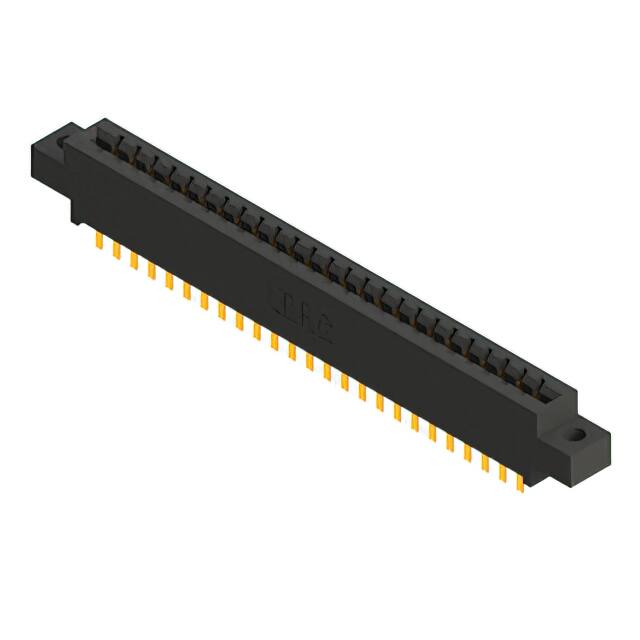

887-050-500-804CONN EDGE DUAL FMALE 50POS 0.156 |
3,654 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 25 | 50 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
895-124-544-804CONN EDGE DUAL FML 124POS 0.100 |
3,052 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 62 | 124 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
895-124-544-504CONN EDGE DUAL FML 124POS 0.100 |
2,302 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 62 | 124 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
892-072-500-201CONN EDGE DUAL FMALE 72POS 0.100 |
8,350 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Dual Edge | Female | 36 | 72 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
895-042-500-812CONN EDGE DUAL FMALE 42POS 0.100 |
8,842 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 21 | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
895-124-544-202CONN EDGE DUAL FML 124POS 0.100 |
9,166 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 62 | 124 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-088-440-204CONN EDGE DUAL FMALE 88POS 0.156 |
9,306 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-088-442-202CONN EDGE DUAL FMALE 88POS 0.156 |
9,036 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-088-422-202CONN EDGE DUAL FMALE 88POS 0.156 |
7,258 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-088-424-204CONN EDGE DUAL FMALE 88POS 0.156 |
7,182 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-088-542-202CONN EDGE DUAL FMALE 88POS 0.156 |
4,136 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-088-542-201CONN EDGE DUAL FMALE 88POS 0.156 |
5,134 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-088-522-204CONN EDGE DUAL FMALE 88POS 0.156 |
3,262 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-088-500-201CONN EDGE DUAL FMALE 88POS 0.156 |
6,908 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-088-440-201CONN EDGE DUAL FMALE 88POS 0.156 |
6,760 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 44 | 88 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
