    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    845-053-525-402

    845-053-525-402

    CONN EDGE SINGLE FML 53POS 0.100

    EDAC Inc.

    		 4,492
    RFQ
    		845-053-525-402

    Datasheet

         		845 Bulk Active Non Specified - Single Edge Female 53 53 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-024-558-101

    857-024-558-101

    CONN EDGE SGL FMALE 24POS 0.156

    EDAC Inc.

    		 5,480
    RFQ
    		857-024-558-101

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black - -40°C ~ 125°C

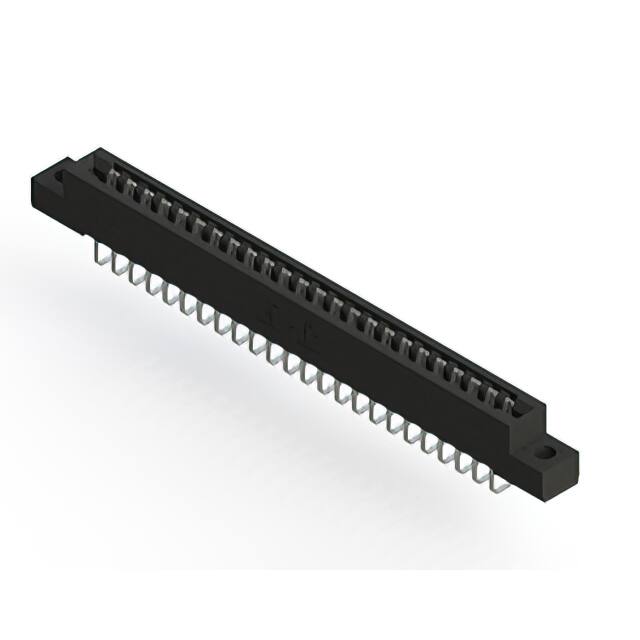

    857-024-459-102

    857-024-459-102

    CONN EDGE SGL FML 24POS 0.156

    EDAC Inc.

    		 3,924
    RFQ
    		857-024-459-102

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-049-525-408

    845-049-525-408

    CONN EDGE SINGLE FML 49POS 0.100

    EDAC Inc.

    		 9,182
    RFQ
    		845-049-525-408

    Datasheet

         		845 Bulk Active Non Specified - Single Edge Female 49 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C

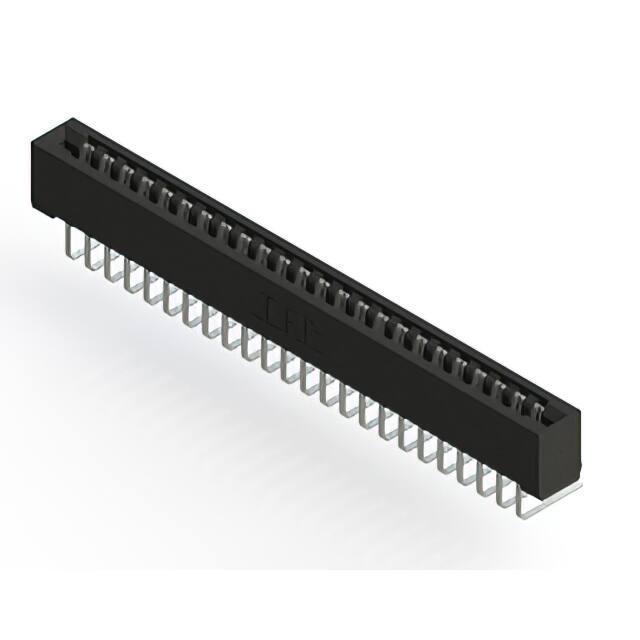

    857-024-458-101

    857-024-458-101

    CONN EDGE SGL FML 24POS 0.156

    EDAC Inc.

    		 8,136
    RFQ
    		857-024-458-101

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black - -40°C ~ 125°C
    845-049-525-603

    845-049-525-603

    CONN EDGE SINGLE FML 49POS 0.100

    EDAC Inc.

    		 3,136
    RFQ
    		845-049-525-603

    Datasheet

         		845 Bulk Active Non Specified - Single Edge Female 49 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    895-049-544-408

    895-049-544-408

    CONN EDGE SINGLE FML 49POS 0.100

    EDAC Inc.

    		 5,274
    RFQ
    		895-049-544-408

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 49 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C

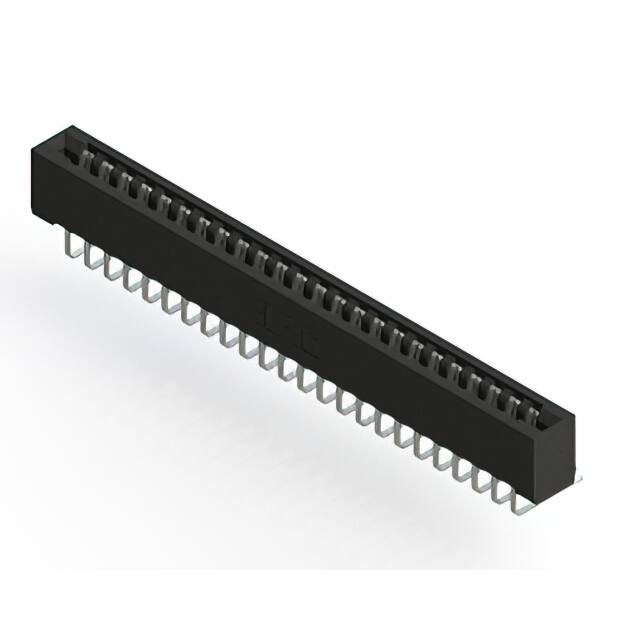

    857-024-459-101

    857-024-459-101

    CONN EDGE SGL FML 24POS 0.156

    EDAC Inc.

    		 6,960
    RFQ
    		857-024-459-101

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black - -40°C ~ 125°C
    895-049-544-607

    895-049-544-607

    CONN EDGE SINGLE FML 49POS 0.100

    EDAC Inc.

    		 8,984
    RFQ
    		895-049-544-607

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 49 49 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, M3 -40°C ~ 125°C
    857-024-458-102

    857-024-458-102

    CONN EDGE SGL FML 24POS 0.156

    EDAC Inc.

    		 6,040
    RFQ
    		857-024-458-102

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    842-108-555-202

    842-108-555-202

    CONN EDGE DUAL FML 108POS 0.100

    EDAC Inc.

    		 9,246
    RFQ
    		842-108-555-202

    Datasheet

         		842 Box Active Non Specified - Dual Edge Female 54 108 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-132-560-802

    845-132-560-802

    CONN EDGE DUAL FML 132POS 0.100

    EDAC Inc.

    		 2,114
    RFQ
    		845-132-560-802

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 66 132 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    833-021-500-112

    833-021-500-112

    CONN EDGE SGL FMALE 21POS 0.156

    EDAC Inc.

    		 4,834
    RFQ
    		833-021-500-112

    Datasheet

         		833 Box Active Non Specified - Single Edge Female 21 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-052-559-412

    845-052-559-412

    CONN EDGE SINGLE FML 52POS 0.100

    EDAC Inc.

    		 7,832
    RFQ
    		845-052-559-412

    Datasheet

         		845 Box Active Non Specified - Single Edge Female 52 52 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    842-108-558-204

    842-108-558-204

    CONN EDGE DUAL FML 108POS 0.100

    EDAC Inc.

    		 6,654
    RFQ
    		842-108-558-204

    Datasheet

         		842 Box Active Non Specified - Dual Edge Female 54 108 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    842-108-555-201

    842-108-555-201

    CONN EDGE DUAL FML 108POS 0.100

    EDAC Inc.

    		 7,776
    RFQ
    		842-108-555-201

    Datasheet

         		842 Box Active Non Specified - Dual Edge Female 54 108 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green - -40°C ~ 125°C
    845-132-558-502

    845-132-558-502

    CONN EDGE DUAL FML 132POS 0.100

    EDAC Inc.

    		 8,916
    RFQ
    		845-132-558-502

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 66 132 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-132-559-504

    845-132-559-504

    CONN EDGE DUAL FML 132POS 0.100

    EDAC Inc.

    		 3,254
    RFQ
    		845-132-559-504

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 66 132 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    845-132-560-502

    845-132-560-502

    CONN EDGE DUAL FML 132POS 0.100

    EDAC Inc.

    		 3,524
    RFQ
    		845-132-560-502

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 66 132 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    845-132-558-504

    845-132-558-504

    CONN EDGE DUAL FML 132POS 0.100

    EDAC Inc.

    		 5,856
    RFQ
    		845-132-558-504

    Datasheet

         		845 Box Active Non Specified - Dual Edge Female 66 132 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    Total 619256 Record«Prev1... 2880528806288072880828809288102881128812...30963Next»
