    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    845-055-525-612

    845-055-525-612

    CONN EDGE SINGLE FML 55POS 0.100

    EDAC Inc.

    		 2,488
    RFQ
    		845-055-525-612

    Datasheet

         		845 Bulk Active Non Specified - Single Edge Female 55 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    892-024-558-107

    892-024-558-107

    CONN EDGE SINGLE FML 24POS 0.100

    EDAC Inc.

    		 9,868
    RFQ
    		892-024-558-107

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    892-024-558-108

    892-024-558-108

    CONN EDGE SINGLE FML 24POS 0.100

    EDAC Inc.

    		 7,880
    RFQ
    		892-024-558-108

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    892-024-559-103

    892-024-559-103

    CONN EDGE SINGLE FML 24POS 0.100

    EDAC Inc.

    		 7,796
    RFQ
    		892-024-559-103

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    895-055-521-112

    895-055-521-112

    CONN EDGE SINGLE FML 55POS 0.100

    EDAC Inc.

    		 5,342
    RFQ
    		895-055-521-112

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 55 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    892-024-559-107

    892-024-559-107

    CONN EDGE SINGLE FML 24POS 0.100

    EDAC Inc.

    		 9,318
    RFQ
    		892-024-559-107

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    892-024-559-108

    892-024-559-108

    CONN EDGE SINGLE FML 24POS 0.100

    EDAC Inc.

    		 4,566
    RFQ
    		892-024-559-108

    Datasheet

         		892 Bulk Active Non Specified - Single Edge Female 24 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    895-055-520-112

    895-055-520-112

    CONN EDGE SINGLE FML 55POS 0.100

    EDAC Inc.

    		 8,880
    RFQ
    		895-055-520-112

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 55 55 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-045-524-107

    895-045-524-107

    CONN EDGE SINGLE FML 45POS 0.100

    EDAC Inc.

    		 4,700
    RFQ
    		895-045-524-107

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 45 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    895-045-525-408

    895-045-525-408

    CONN EDGE SINGLE FML 45POS 0.100

    EDAC Inc.

    		 2,864
    RFQ
    		895-045-525-408

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 45 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    896-037-500-608

    896-037-500-608

    CONN EDGE SGL FMALE 37POS 0.125

    EDAC Inc.

    		 6,218
    RFQ
    		896-037-500-608

    Datasheet

         		896 Bulk Active Non Specified - Single Edge Female 37 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.125" (3.18mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    896-088-520-203

    896-088-520-203

    CONN EDGE DUAL FMALE 88POS 0.125

    EDAC Inc.

    		 4,496
    RFQ
    		896-088-520-203

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 44 88 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    896-037-500-603

    896-037-500-603

    CONN EDGE SGL FMALE 37POS 0.125

    EDAC Inc.

    		 9,834
    RFQ
    		896-037-500-603

    Datasheet

         		896 Bulk Active Non Specified - Single Edge Female 37 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.125" (3.18mm) Single - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C

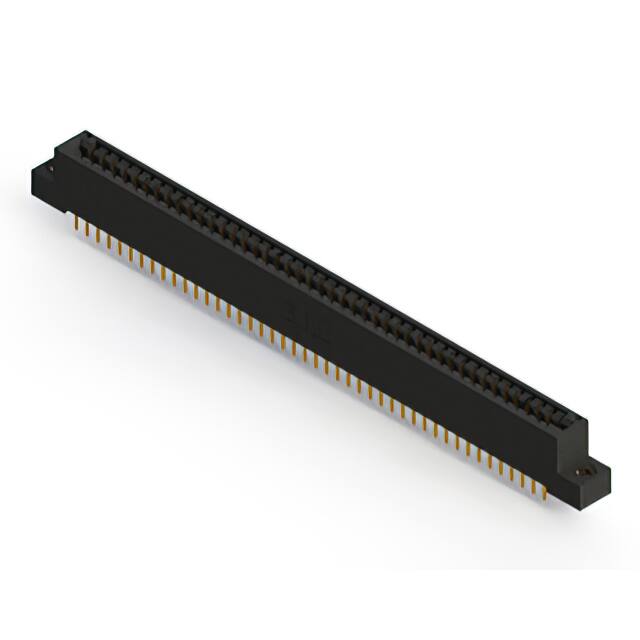

    896-088-521-207

    896-088-521-207

    CONN EDGE DUAL FMALE 88POS 0.125

    EDAC Inc.

    		 9,678
    RFQ
    		896-088-521-207

    Datasheet

         		896 Bulk Active Non Specified - Dual Edge Female 44 88 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C
    895-045-540-608

    895-045-540-608

    CONN EDGE SINGLE FML 45POS 0.100

    EDAC Inc.

    		 8,888
    RFQ
    		895-045-540-608

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 45 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    895-045-521-603

    895-045-521-603

    CONN EDGE SINGLE FML 45POS 0.100

    EDAC Inc.

    		 5,406
    RFQ
    		895-045-521-603

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 45 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C

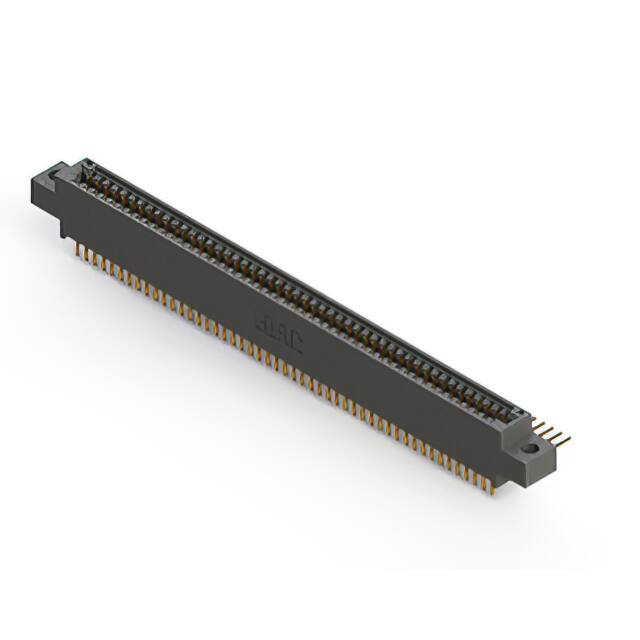

    895-098-558-804

    895-098-558-804

    CONN EDGE DUAL FMALE 98POS 0.100

    EDAC Inc.

    		 6,368
    RFQ
    		895-098-558-804

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 49 98 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia -40°C ~ 125°C
    895-045-544-408

    895-045-544-408

    CONN EDGE SINGLE FML 45POS 0.100

    EDAC Inc.

    		 5,620
    RFQ
    		895-045-544-408

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 45 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    895-045-544-603

    895-045-544-603

    CONN EDGE SINGLE FML 45POS 0.100

    EDAC Inc.

    		 7,002
    RFQ
    		895-045-544-603

    Datasheet

         		895 Bulk Active Non Specified - Single Edge Female 45 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.100" (2.54mm) Single - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    807-006-457-112

    807-006-457-112

    CONN EDGE DUAL FMALE 12POS 0.156

    EDAC Inc.

    		 8,146
    RFQ
    		807-006-457-112

    Datasheet

         		807 Bulk Active Non Specified - Dual Edge Female 6 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Green Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    Total 619256 Record«Prev1... 2862728628286292863028631286322863328634...30963Next»
