    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature
    857-046-455-208

    857-046-455-208

    CONN EDGE DUAL FMALE 46POS 0.156

    EDAC Inc.

    		 4,850
    RFQ
    		857-046-455-208

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 23 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    892-110-524-212

    892-110-524-212

    CONN EDGE DUAL FML 110POS 0.100

    EDAC Inc.

    		 6,298
    RFQ
    		892-110-524-212

    Datasheet

         		892 Bulk Active Non Specified - Dual Edge Female 55 110 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    892-110-544-212

    892-110-544-212

    CONN EDGE DUAL FML 110POS 0.100

    EDAC Inc.

    		 6,946
    RFQ
    		892-110-544-212

    Datasheet

         		892 Bulk Active Non Specified - Dual Edge Female 55 110 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    807-072-459-201

    807-072-459-201

    CONN EDGE DUAL FMALE 72POS 0.156

    EDAC Inc.

    		 5,838
    RFQ
    		807-072-459-201

    Datasheet

         		807 Bulk Active Non Specified - Dual Edge Female 36 72 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Green - -40°C ~ 125°C
    857-046-459-208

    857-046-459-208

    CONN EDGE DUAL FMALE 46POS 0.156

    EDAC Inc.

    		 6,348
    RFQ
    		857-046-459-208

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 23 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    857-046-455-203

    857-046-455-203

    CONN EDGE DUAL FMALE 46POS 0.156

    EDAC Inc.

    		 4,230
    RFQ
    		857-046-455-203

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 23 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual Card Extender Board Edge, Straddle Mount Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    857-046-458-208

    857-046-458-208

    CONN EDGE DUAL FMALE 46POS 0.156

    EDAC Inc.

    		 8,110
    RFQ
    		857-046-458-208

    Datasheet

         		857 Bulk Active Non Specified - Dual Edge Female 23 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C
    895-114-540-212

    895-114-540-212

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 9,856
    RFQ
    		895-114-540-212

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

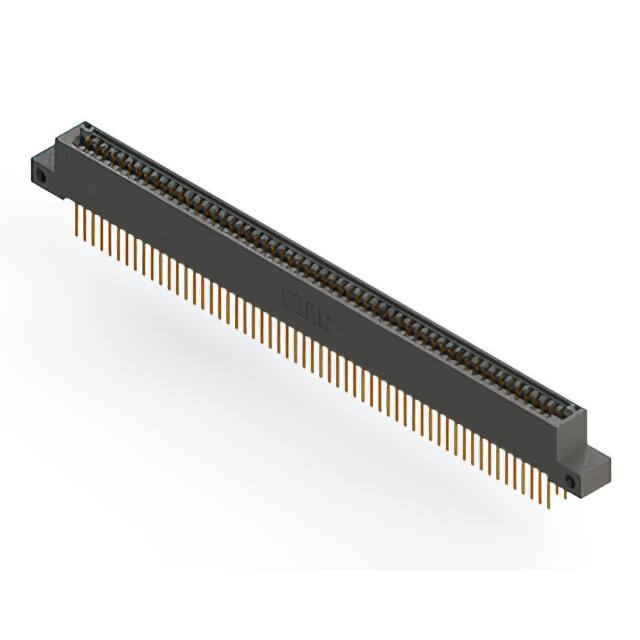

    895-114-523-212

    895-114-523-212

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 6,956
    RFQ
    		895-114-523-212

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-116-525-512

    895-116-525-512

    CONN EDGE DUAL FML 116POS 0.100

    EDAC Inc.

    		 3,212
    RFQ
    		895-116-525-512

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 58 116 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-054-500-502

    895-054-500-502

    CONN EDGE DUAL FMALE 54POS 0.100

    EDAC Inc.

    		 9,196
    RFQ
    		895-054-500-502

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 27 54 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Eyelet(s) Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    857-016-458-107

    857-016-458-107

    CONN EDGE SGL FML 16POS 0.156

    EDAC Inc.

    		 2,344
    RFQ
    		857-016-458-107

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 16 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, M3 -40°C ~ 125°C

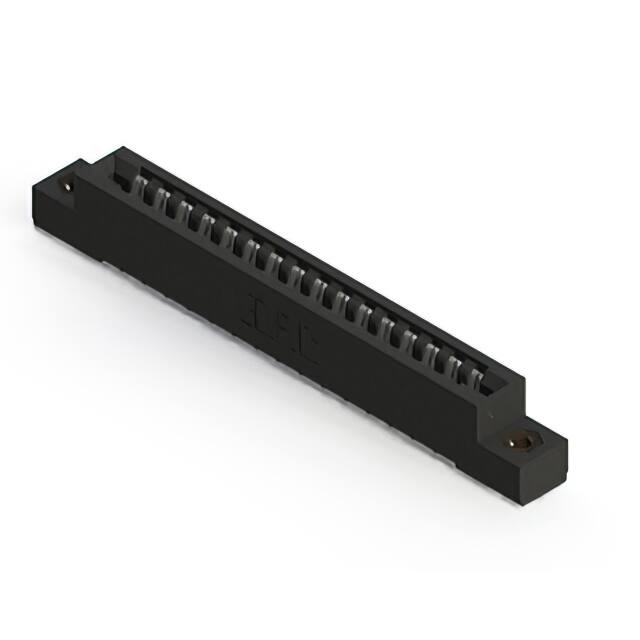

    857-016-459-108

    857-016-459-108

    CONN EDGE SGL FML 16POS 0.156

    EDAC Inc.

    		 6,128
    RFQ
    		857-016-459-108

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 16 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Tin - Semi Bellows Black Flush Mount, Top Opening, Threaded Insert, 4-40 -40°C ~ 125°C

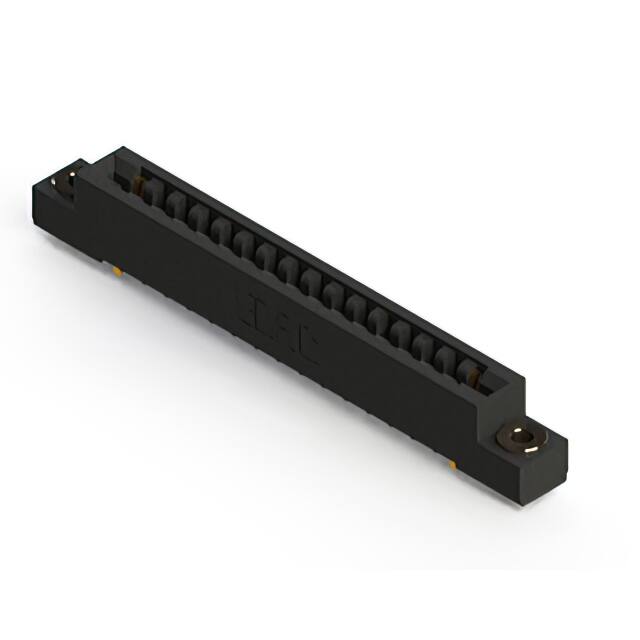

    857-016-559-103

    857-016-559-103

    CONN EDGE SGL FMALE 16POS 0.156

    EDAC Inc.

    		 5,616
    RFQ
    		857-016-559-103

    Datasheet

         		857 Bulk Active Non Specified - Single Edge Female 16 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 1 0.156" (3.96mm) Single - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia -40°C ~ 125°C
    895-114-540-812

    895-114-540-812

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 7,694
    RFQ
    		895-114-540-812

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-116-520-812

    895-116-520-812

    CONN EDGE DUAL FML 116POS 0.100

    EDAC Inc.

    		 3,620
    RFQ
    		895-116-520-812

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 58 116 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-114-541-812

    895-114-541-812

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 9,020
    RFQ
    		895-114-541-812

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-114-525-212

    895-114-525-212

    CONN EDGE DUAL FML 114POS 0.100

    EDAC Inc.

    		 8,246
    RFQ
    		895-114-525-212

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 57 114 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C

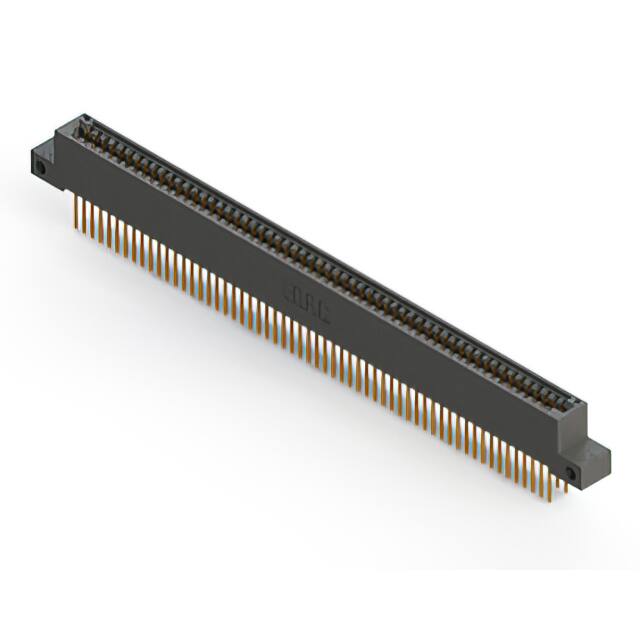

    895-116-540-212

    895-116-540-212

    CONN EDGE DUAL FML 116POS 0.100

    EDAC Inc.

    		 4,168
    RFQ
    		895-116-540-212

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 58 116 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    895-116-540-812

    895-116-540-812

    CONN EDGE DUAL FML 116POS 0.100

    EDAC Inc.

    		 2,104
    RFQ
    		895-116-540-812

    Datasheet

         		895 Bulk Active Non Specified - Dual Edge Female 58 116 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.100" (2.54mm) Dual - Through Hole Wire Wrap Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 125°C
    Total 619256 Record«Prev1... 2859228593285942859528596285972859828599...30963Next»
