Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
857-082-500-204CONN EDGE DUAL FMALE 82POS 0.156 |
2,660 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
895-035-500-104CONN EDGE SINGLE FML 35POS 0.100 |
7,056 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Single Edge | Female | 35 | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|

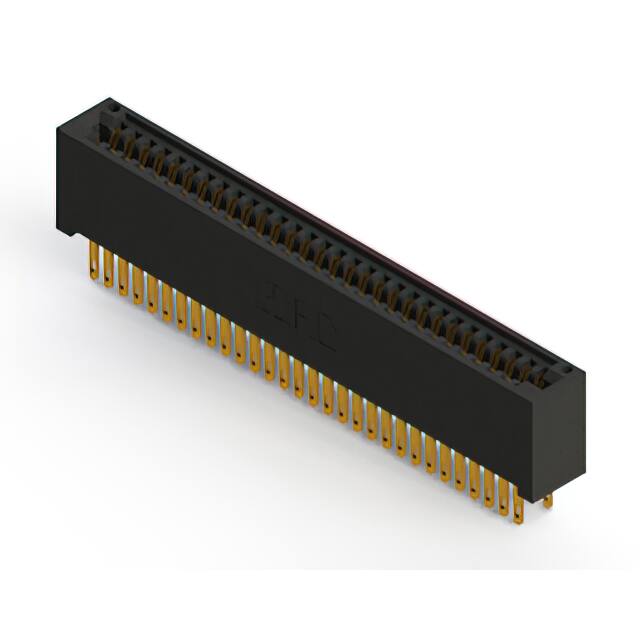

895-060-500-201CONN EDGE DUAL FMALE 60POS 0.100 |
9,300 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 30 | 60 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
895-060-500-804CONN EDGE DUAL FMALE 60POS 0.100 |
7,332 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Dual Edge | Female | 30 | 60 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
807-084-424-204CONN EDGE DUAL FMALE 84POS 0.156 |
6,764 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
807-084-440-204CONN EDGE DUAL FMALE 84POS 0.156 |
9,820 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
807-084-424-201CONN EDGE DUAL FMALE 84POS 0.156 |
2,808 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | - | -40°C ~ 125°C |
|
857-082-524-204CONN EDGE DUAL FMALE 82POS 0.156 |
6,578 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-082-540-202CONN EDGE DUAL FMALE 82POS 0.156 |
6,474 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-084-424-202CONN EDGE DUAL FMALE 84POS 0.156 |
2,636 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-082-542-202CONN EDGE DUAL FMALE 82POS 0.156 |
7,758 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-082-422-204CONN EDGE DUAL FMALE 82POS 0.156 |
4,882 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-082-440-202CONN EDGE DUAL FMALE 82POS 0.156 |
7,140 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

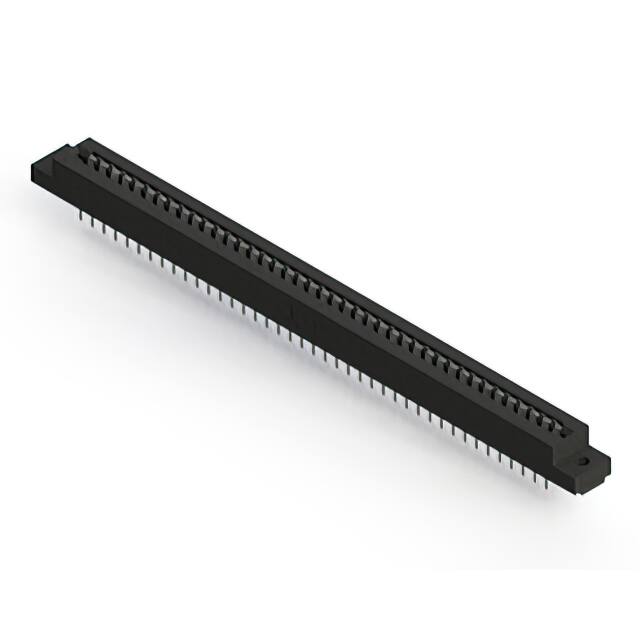

857-082-420-202CONN EDGE DUAL FMALE 82POS 0.156 |
3,054 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

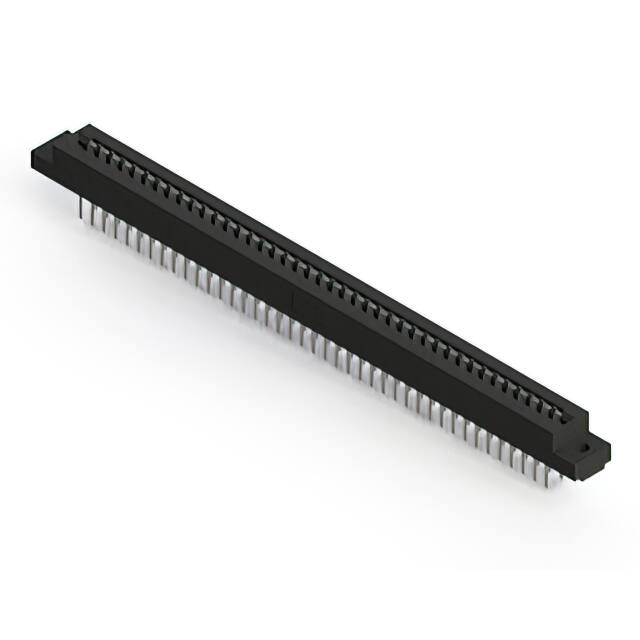

857-082-442-202CONN EDGE DUAL FMALE 82POS 0.156 |
7,848 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|

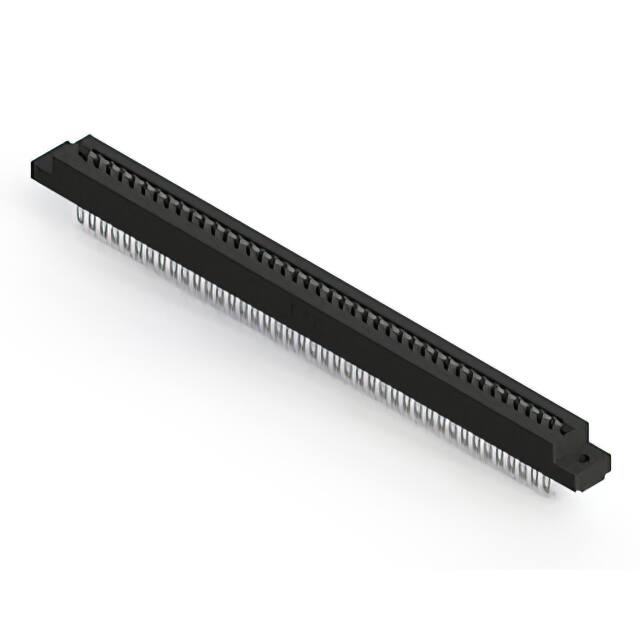

857-082-400-202CONN EDGE DUAL FMALE 82POS 0.156 |
4,080 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-084-422-201CONN EDGE DUAL FMALE 84POS 0.156 |
2,854 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | - | -40°C ~ 125°C |
|
857-082-440-204CONN EDGE DUAL FMALE 82POS 0.156 |
8,032 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|

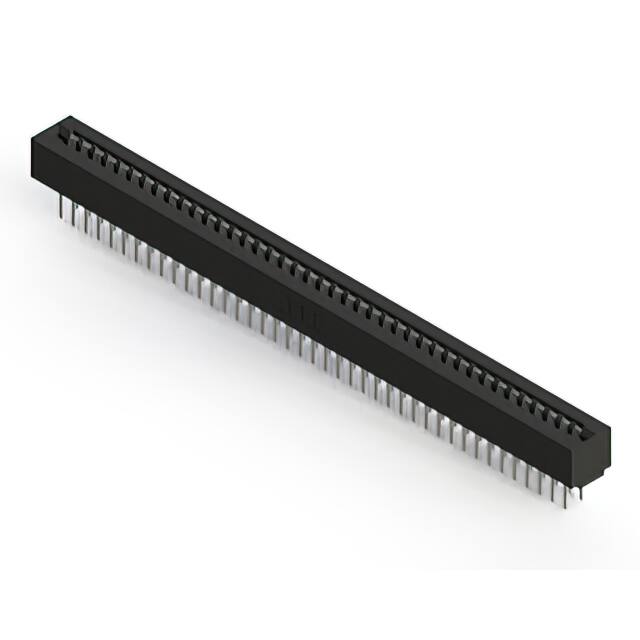

857-082-422-201CONN EDGE DUAL FMALE 82POS 0.156 |
5,596 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 41 | 82 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
807-076-424-212CONN EDGE DUAL FMALE 76POS 0.156 |
9,890 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 38 | 76 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
