    Home > Products  > Connectors, Interconnects > Card Edge Connectors > Edgeboard Connectors

    Edgeboard Connectors

    Photo Mfr. Part # Availability Price Quantity Datasheet Series Packaging Product Status Card Type Gender Number of Positions/Bay/Row Number of Positions Card Thickness Number of Rows Pitch Read Out Features Mounting Type Termination Contact Material Contact Finish Contact Finish Thickness Contact Type Color Flange Feature Operating Temperature

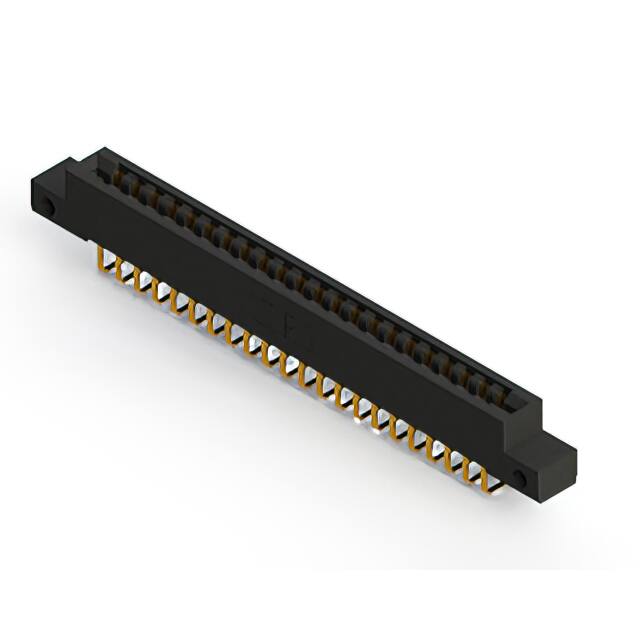

    357-044-559-212

    357-044-559-212

    CONN EDGE DUAL FMALE 44POS 0.156

    EDAC Inc.

    		 17,016
    RFQ
    		357-044-559-212

    Datasheet

         		357 Box Active Non Specified - Dual Edge Female 23 44 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole, Right Angle Solder Copper Alloy Gold 10.0µin (0.25µm) Semi Bellows Black Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia -40°C ~ 105°C
    737-016-522-206

    737-016-522-206

    CONN EDGE DUAL FMALE 16POS 0.156

    EDAC Inc.

    		 18,064
    RFQ
    		737-016-522-206

    Datasheet

         		737 Box Active Non Specified - Dual Edge Female 8 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Press-Fit Copper Alloy Gold 30.0µin (0.76µm) Cantilever Black - -40°C ~ 105°C
    737-016-522-201

    737-016-522-201

    CONN EDGE DUAL FMALE 16POS 0.156

    EDAC Inc.

    		 19,268
    RFQ
    		737-016-522-201

    Datasheet

         		737 Bulk Active Non Specified - Dual Edge Female 8 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Press-Fit Copper Alloy Gold 30.0µin (0.76µm) Cantilever Black - -40°C ~ 105°C
    717-016-525-201

    717-016-525-201

    CONN EDGE DUAL FMALE 16POS 0.156

    EDAC Inc.

    		 6,150
    RFQ
    		717-016-525-201

    Datasheet

         		717 Bulk Active Non Specified - Dual Edge Female 8 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.156" (3.96mm) Dual - Through Hole Press-Fit Copper Alloy Gold 30.0µin (0.76µm) Cantilever Black - -40°C ~ 105°C
    726-016-525-201

    726-016-525-201

    CONN EDGE DUAL FMALE 16POS 0.125

    EDAC Inc.

    		 16,952
    RFQ
    		726-016-525-201

    Datasheet

         		726 Bulk Active Non Specified - Dual Edge Female 8 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) 2 0.125" (3.18mm) Dual - Through Hole Press-Fit Copper Alloy Gold 30.0µin (0.76µm) Cantilever Black - -40°C ~ 105°C
    802-036-321-201

    802-036-321-201

    802 SERIES (.05" (1.27MM) CONTAC

    EDAC Inc.

    		 14,308
    RFQ
    		802-036-321-201

    Datasheet

         		802 Tube Active Non Specified - Dual Edge Female 18 36 0.051" ~ 0.071" (1.30mm ~ 1.80mm) 2 0.050" (1.27mm) Dual - Through Hole Solder Copper Alloy Gold 15.0µin (0.38µm) Cantilever Black - -55°C ~ 105°C
    MEC1-160-02-F-D-LC-K-TR

    MEC1-160-02-F-D-LC-K-TR

    CONN EDGE DUAL FML 120POS 0.039

    Samtec Inc.

    		 16,686
    RFQ

    -

    		 MEC1 Tape & Reel (TR) Active Non Specified - Dual Edge Female - 120 0.062" (1.57mm) 2 0.039" (1.00mm) Dual Board Lock, Pick and Place Surface Mount Solder Beryllium Copper Gold 3.00µin (0.076µm) Loop Bellows Black - -55°C ~ 125°C
    MEC1-160-02-FM-D-A-K-TR

    MEC1-160-02-FM-D-A-K-TR

    CONN EDGE DUAL FML 120POS 0.039

    Samtec Inc.

    		 4,504
    RFQ

    -

    		 MEC1 Tape & Reel (TR) Active Non Specified - Dual Edge Female - 120 0.062" (1.57mm) 2 0.039" (1.00mm) Dual Board Guide, Pick and Place Surface Mount Solder Beryllium Copper Gold 3.00µin (0.076µm) Loop Bellows Black - -55°C ~ 125°C
    PCIE-LP-08-01-S-DV-A-WT-TR

    PCIE-LP-08-01-S-DV-A-WT-TR

    1.00 MM PCI EXPRESS GEN 3 EDGE C

    Samtec Inc.

    		 16,466
    RFQ
    		PCIE-LP-08-01-S-DV-A-WT-TR

    Datasheet

         		PCI Express® (PCIe) Tape & Reel (TR) Active PCI Express™ Female 11; 38 98 0.062" (1.57mm) 2 0.039" (1.00mm) Dual Board Guide, Locking Ramp, Solder Retention Surface Mount Solder Phosphor Bronze Gold 30.0µin (0.76µm) Cantilever Black - -55°C ~ 125°C
    HTEC8-160-01-L-DV-A-K-TR

    HTEC8-160-01-L-DV-A-K-TR

    0.80 MM RUGGED HIGH-SPEED EDGE C

    Samtec Inc.

    		 16,816
    RFQ
    		HTEC8-160-01-L-DV-A-K-TR

    Datasheet

         		Edge Rate™ HTEC8 Tape & Reel (TR) Active PCI Express™ Female 60 120 0.062" (1.57mm) 2 0.031" (0.80mm) Dual Board Guide, Pick and Place Surface Mount Solder Copper Alloy Gold 10.0µin (0.25µm) Cantilever Black - -55°C ~ 125°C
    10146065-113B0LF

    10146065-113B0LF

    CONN PCI EXP FMALE 164POS 0.039

    Amphenol ICC (FCI)

    		 14,684
    RFQ
    		10146065-113B0LF

    Datasheet

         		- Tray Active PCI Express™ Female - 164 0.062" (1.57mm) 2 0.039" (1.00mm) Dual Board Guide, Locking Ramp, Pick and Place, Solder Retention Surface Mount Solder Copper Alloy Gold 30.0µin (0.76µm) - Black - -55°C ~ 105°C
    HSEC8-120-01-S-DV-A-WT-K

    HSEC8-120-01-S-DV-A-WT-K

    CONN EDGE DUAL FMALE 40POS 0.031

    Samtec Inc.

    		 18,974
    RFQ
    		HSEC8-120-01-S-DV-A-WT-K

    Datasheet

         		Edge Rate™ HSEC8 Tray Active Non Specified - Dual Edge Female 20 40 0.062" (1.57mm) 2 0.031" (0.80mm) Dual Board Guide, Solder Retention Surface Mount Solder Beryllium Copper Gold 30.0µin (0.76µm) Cantilever Black - -55°C ~ 125°C
    10121510-080412CLF

    10121510-080412CLF

    CONN EDGE DUAL FMALE 24POS GOLD

    Amphenol ICC (FCI)

    		 14,820
    RFQ
    		10121510-080412CLF

    Datasheet

         		HPCE® Tray Active Non Specified - Dual Edge Female 6; 6 24 (12 + 12 Power) 0.062" (1.57mm) 2 - Dual Board Lock Through Hole, Right Angle Solder Copper Alloy Gold or Gold, GXT™ - - Black - -55°C ~ 105°C
    EEC15DRAN

    EEC15DRAN

    CONN EDGE DUAL FMALE 30POS 0.100

    Sullins Connector Solutions

    		 13,182
    RFQ
    		EEC15DRAN

    Datasheet

         		- Tube Active Non Specified - Dual Edge Female 15 30 0.062" (1.57mm) 2 0.100" (2.54mm) Dual - Through Hole, Right Angle Solder Phosphor Bronze Tin 100.0µin (2.54µm) Full Bellows Blue - -65°C ~ 125°C
    EBC19DREN

    EBC19DREN

    CONN EDGE DUAL FMALE 38POS 0.100

    Sullins Connector Solutions

    		 17,448
    RFQ
    		EBC19DREN

    Datasheet

         		- Tray Active Non Specified - Dual Edge Female 19 38 0.062" (1.57mm) 2 0.100" (2.54mm) Dual - Free Hanging (In-Line) Solder Eyelet(s) Phosphor Bronze Gold 10.0µin (0.25µm) Full Bellows Blue - -65°C ~ 125°C
    ESC07DRTI

    ESC07DRTI

    CONN EDGE DUAL FMALE 14POS 0.100

    Sullins Connector Solutions

    		 11,698
    RFQ
    		ESC07DRTI

    Datasheet

         		- Tube Active Non Specified - Dual Edge Female 7 14 0.062" (1.57mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Phosphor Bronze Gold 10.0µin (0.25µm) Full Bellows Blue Top Mount Opening, Threaded Insert, 4-40 -65°C ~ 125°C
    EEC30DRTS

    EEC30DRTS

    CONN EDGE DUAL FMALE 60POS 0.100

    Sullins Connector Solutions

    		 18,148
    RFQ
    		EEC30DRTS

    Datasheet

         		- Tube Active Non Specified - Dual Edge Female 30 60 0.062" (1.57mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Phosphor Bronze Tin 100.0µin (2.54µm) Full Bellows Blue Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia -65°C ~ 125°C
    ECC10DRXI

    ECC10DRXI

    CONN EDGE DUAL FMALE 20POS 0.100

    Sullins Connector Solutions

    		 19,646
    RFQ
    		ECC10DRXI

    Datasheet

         		- Tray Active Non Specified - Dual Edge Female 10 20 0.062" (1.57mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Phosphor Bronze Gold 30.0µin (0.76µm) Full Bellows Blue Top Mount Opening, Threaded Insert, 4-40 -65°C ~ 125°C
    EEC28DRYH

    EEC28DRYH

    CONN EDGE DUAL FMALE 56POS 0.100

    Sullins Connector Solutions

    		 7,786
    RFQ
    		EEC28DRYH

    Datasheet

         		- Tube Active Non Specified - Dual Edge Female 28 56 0.062" (1.57mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Phosphor Bronze Tin 100.0µin (2.54µm) Full Bellows Blue Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia -65°C ~ 125°C
    EEC28DRYN

    EEC28DRYN

    CONN EDGE DUAL FMALE 56POS 0.100

    Sullins Connector Solutions

    		 7,990
    RFQ
    		EEC28DRYN

    Datasheet

         		- Tube Active Non Specified - Dual Edge Female 28 56 0.062" (1.57mm) 2 0.100" (2.54mm) Dual - Through Hole Solder Phosphor Bronze Tin 100.0µin (2.54µm) Full Bellows Blue - -65°C ~ 125°C
    Total 619256 Record«Prev1... 10861087108810891090109110921093...30963Next»
