Blade Type Power Connector Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Style | Connector Type | Number of Positions | Pitch | Mounting Type | Number of Rows | Termination | Wire Gauge | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DW4P001ZF2CONN PLUG 1POS IN-LINE SCREW |
8,944 |
|
- |
DW4 | Bulk | Active | Single Pole | Plug, Male Blades | 1 | - | Free Hanging (In-Line) | - | Screw | 4 AWG | - | Red |
|
|
PES-08-01-S-RA-LCCONN RCPT 8POS 6.35MM EDGE R/A |
9,580 |
|
Datasheet |
PowerStrip™ 40 PES | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.250" (6.35mm) | Board Edge, Through Hole, Right Angle | 1 | Solder | - | Board Lock | Black |
|
|
PES-08-02-S-RA-LCCONN RCPT 8POS 6.35MM EDGE R/A |
3,070 |
|
Datasheet |
PowerStrip™ 40 PES | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.250" (6.35mm) | Board Edge, Through Hole, Right Angle | 1 | Solder | - | Board Lock | Black |
|

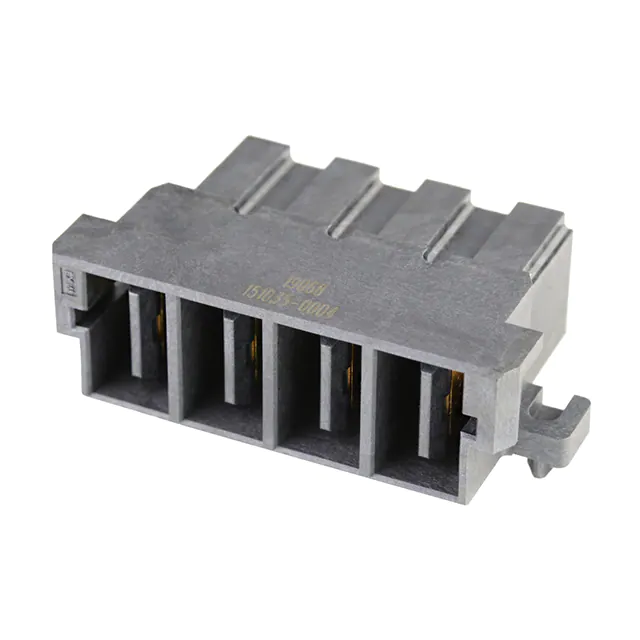

1510350004CONN PLUG 4POS 11.00MM R/A SLDR |
8,606 |
|
Datasheet |
EXTreme Guardian II 151035 | Tray | Active | - | Plug, Male Blades | 4 | 0.433" (11.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
|
1510350014CONN PLUG 4POS 11.00MM R/A SLDR |
7,826 |
|
Datasheet |
EXTreme Guardian II 151035 | Tray | Active | - | Plug, Male Blades | 4 | 0.433" (11.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
1510350024CONN PLUG 4POS 11.00MM R/A SLDR |
3,308 |
|
Datasheet |
EXTreme Guardian II 151035 | Tray | Active | - | Plug, Male Blades | 4 | 0.433" (11.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
|
PET-08-02-S-VT-LCCONN HDR 8POS 6.35MM PCB SLDR |
7,068 |
|
Datasheet |
PowerStrip™ 40 PET | Tray | Active | - | Header, Male Blades | 8 | 0.250" (6.35mm) | Through Hole | 1 | Solder | - | Board Lock | Black |
|
|
2332800-4CONN RCPT 10POS 2.50MM CRIMP |
7,414 |
|
Datasheet |
UMP | Box | Active | - | Receptacle, Female Blade Sockets | 10 | 0.098" (2.50mm) | Free Hanging (In-Line) | 4 | Crimp | 8 AWG | Board Guide | Orange |
|
|
1510351004CONN PLUG 4POS 11.00MM R/A SLDR |
5,872 |
|
Datasheet |
EXTreme Guardian II 151035 | Tray | Active | - | Plug, Male Blades | 4 | 0.433" (11.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
|
1510351014CONN PLUG 4POS 11.00MM R/A SLDR |
5,114 |
|
Datasheet |
EXTreme Guardian II 151035 | Tray | Active | - | Plug, Male Blades | 4 | 0.433" (11.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
|
1510351024CONN PLUG 4POS 11.00MM R/A SLDR |
5,960 |
|
Datasheet |
EXTreme Guardian II 151035 | Tray | Active | - | Plug, Male Blades | 4 | 0.433" (11.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide | Black |
|
|
2332801-7CONN PLUG 10POS 2.50MM CRIMP |
4,458 |
|
Datasheet |
UMP | Box | Active | - | Plug, Male Blades | 10 | 0.098" (2.50mm) | Free Hanging (In-Line) | 4 | Crimp | 10 AWG | Board Guide | Orange |
|
|
2332801-4CONN PLUG 10POS 2.50MM CRIMP |
2,406 |
|
Datasheet |
UMP | Box | Active | - | Plug, Male Blades | 10 | 0.098" (2.50mm) | Free Hanging (In-Line) | 4 | Crimp | 8 AWG | Board Guide | Orange |
|
|
PES-08-01-S-VTCONN RCPT 8POS 6.35MM PCB SLDR |
4,662 |
|
- |
PowerStrip™ 40 PES | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.250" (6.35mm) | Through Hole | 1 | Solder | - | - | Black |
|
|
2332801-8CONN PLUG 10POS 2.50MM CRIMP |
6,092 |
|
Datasheet |
UMP | Box | Active | - | Plug, Male Blades | 10 | 0.098" (2.50mm) | Free Hanging (In-Line) | 4 | Crimp | 8 AWG | Board Guide | Orange |
|
|
S-2406H-CCTCONN SOCKET 6POS IN-LINE SLDR |
6,478 |
|
Datasheet |
2400 | Bulk | Obsolete | - | Socket, Jones | 6 | - | Free Hanging (In-Line) | 2 | Solder Eyelet(s) | - | Hood, Cable Clamp | Black |
|
|
PES-08-02-S-VT-LCCONN RCPT 8POS 6.35MM PCB SLDR |
4,116 |
|
- |
PowerStrip™ 40 PES | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.250" (6.35mm) | Through Hole | 1 | Solder | - | Board Lock | Black |
|
|
PES-08-01-S-VT-LCCONN RCPT 8POS 6.35MM PCB SLDR |
7,144 |
|
Datasheet |
PowerStrip™ 40 PES | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.250" (6.35mm) | Through Hole | 1 | Solder | - | Board Lock | Black |
|

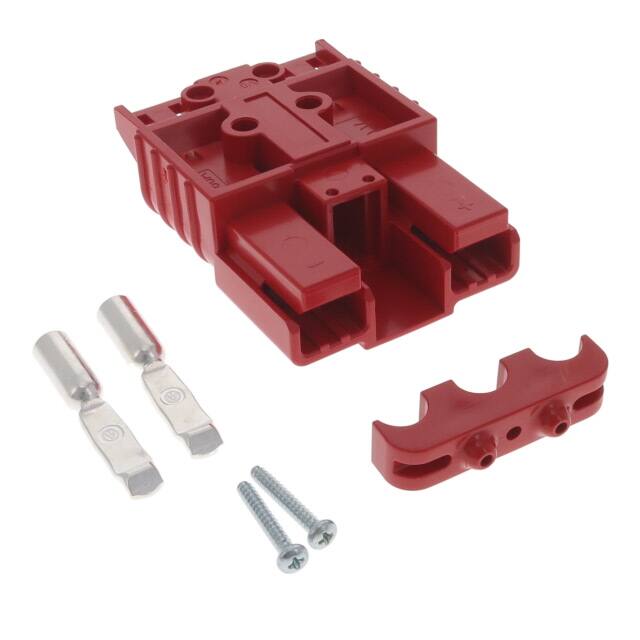

SBE80RED16MMCONN PLUG 2POS IN-LINE CRIMP |
9,712 |
|
Datasheet |
SBE® 80 | Bulk | Active | 2 Poles | Non-Gendered | 2 | - | Free Hanging (In-Line) | 1 | Crimp | 6 AWG | - | Red |
|
10126974-001LFCONN RCPT 2POS IN-LINE CRIMP |
5,370 |
|
Datasheet |
TwinBlade™ | Tray | Active | 2 Poles | Receptacle, Female Blade Sockets | 2 | - | Free Hanging (In-Line) | 1 | Crimp | 25mm² | - | - |
