Blade Type Power Connector Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Style | Connector Type | Number of Positions | Pitch | Mounting Type | Number of Rows | Termination | Wire Gauge | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PET-06-02-L-VTCONN HDR 6POS 6.35MM PCB SLDR |
9,524 |
|
Datasheet |
PowerStrip™ 40 PET | Tray | Active | - | Header, Male Blades | 6 | 0.250" (6.35mm) | Through Hole | 1 | Solder | - | - | Black |
|
PES-08-01-L-VTCONN RCPT 8POS 6.35MM PCB SLDR |
2,148 |
|
Datasheet |
PowerStrip™ 40 PES | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.250" (6.35mm) | Through Hole | 1 | Solder | - | - | Black |
|
1903977-1CONN HDR 4POS EDGE R/A SLDR |
7,368 |
|
Datasheet |
- | Bulk | Active | - | Header, Male Blades | 4 | - | Board Edge, Through Hole, Right Angle | 1 | Solder | - | Board Guide | Natural |
|
PET-08-01-S-VTCONN HDR 8POS 6.35MM PCB SLDR |
5,000 |
|
Datasheet |
PowerStrip™ 40 PET | Tray | Active | - | Header, Male Blades | 8 | 0.250" (6.35mm) | Through Hole | 1 | Solder | - | - | Black |
|
413638-ECONN HDR 15POS 7.62MM R/A SLDR |
9,180 |
|
Datasheet |
DIN | Tray | Active | - | Header, Male Blades | 15 | 0.300" (7.62mm) | Through Hole, Right Angle | 2 | Solder | - | Flange | - |
|
1604044-4CONN PLUG 2POS IN-LINE CRIMP |
7,238 |
|
Datasheet |
Power Series 175 | Bulk | Active | 2 Poles | Non-Gendered | 2 | - | Free Hanging (In-Line) | 1 | Crimp | 4 AWG | - | Gray |
|
0919990495CONN HDR 3POS 5.00MM PCB SLDR |
2,000 |
|
Datasheet |
91999 | Bulk | Active | - | Header, Male Blades | 3 | 0.197" (5.00mm) | Through Hole | 1 | Solder | - | Board Guide, Keyed | Natural |
|
UMPT-04-02.5-L-V-S-TRCONN HDR 4POS 2.00MM SMD SLDR |
4,682 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 4 | 0.079" (2.00mm) | Surface Mount | 1 | Solder | - | - | Black |
|
UMPT-04-01-T-RA-WT-TRCONN HDR 4POS 2.00MM R/A SLDR |
3,720 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 4 | 0.079" (2.00mm) | Surface Mount, Right Angle | 1 | Solder | - | Solder Retention | Black |
|
MPT-03-01-01-T-RA-SDCONN HDR 3POS 5.00MM EDGE RA SLD |
7,808 |
|
Datasheet |
PowerStrip™ 30 MPT | Tray | Active | - | Header, Male Blades | 3 | 0.197" (5.00mm) | Board Edge, Through Hole, Right Angle | 1 | Solder | - | Flange | Black |
|
|
UMPT-07-01-L-RA-WT-TRCONN HDR 7POS 2.00MM R/A SLDR |
2,040 |
|
Datasheet |
mPower™ UMPT | Tape & Reel (TR) | Active | - | Header, Male Blades | 7 | 0.079" (2.00mm) | Surface Mount, Right Angle | 1 | Solder | - | Solder Retention | Black |
|
MPS-08-01-03-L-RA-SDCONN RCPT 8POS 5.00MM R/A SLDR |
2,224 |
|
Datasheet |
PowerStrip™ 30 MPS | Tray | Active | - | Receptacle, Female Blade Sockets | 8 | 0.197" (5.00mm) | Through Hole, Right Angle | 1 | Solder | - | Flange | Black |
|
PET-02-01-L-VTCONN HDR 2POS 6.35MM PCB SLDR |
4,986 |
|
Datasheet |
PowerStrip™ 40 PET | Tray | Active | - | Header, Male Blades | 2 | 0.250" (6.35mm) | Through Hole | 1 | Solder | - | - | Black |
|
PET-02-02-S-RA-SDCONN HDR 2POS 6.35MM EDGE RA SLD |
6,834 |
|
Datasheet |
PowerStrip™ 40 PET | Tray | Active | - | Header, Male Blades | 2 | 0.250" (6.35mm) | Board Edge, Through Hole, Right Angle | 1 | Solder | - | Flange | Black |
|
1445716-2CONN PLUG 1POS IN-LINE CRIMP |
2,050 |
|
Datasheet |
Power Series 75 | Bulk | Active | Single Pole | Non-Gendered | 1 | - | Free Hanging (In-Line) | 1 | Crimp | 6 AWG | Stackable | Black |
|
647892-5CONN PLUG 2POS IN-LINE CRIMP |
5,768 |
|
Datasheet |
Power Series 50 | Bulk | Active | 2 Poles | Non-Gendered | 2 | - | Free Hanging (In-Line) | 1 | Crimp | 6 AWG | - | Blue |
|
0468171000CONN PLUG 3POS 11.00MM R/A SLDR |
7,950 |
|
Datasheet |
EXTreme Guardian 46817 | Tray | Active | - | Plug, Male Blades | 3 | 0.433" (11.00mm) | Through Hole, Right Angle | 1 | Solder | - | Board Guide, Flange | Black |
|
1604002-4CONN PLUG 1POS IN-LINE CRIMP |
8,544 |
|
Datasheet |
Power Series 120 | Bulk | Active | Single Pole | Non-Gendered | 1 | - | Free Hanging (In-Line) | 1 | Crimp | 2 AWG | Stackable | Green |
|

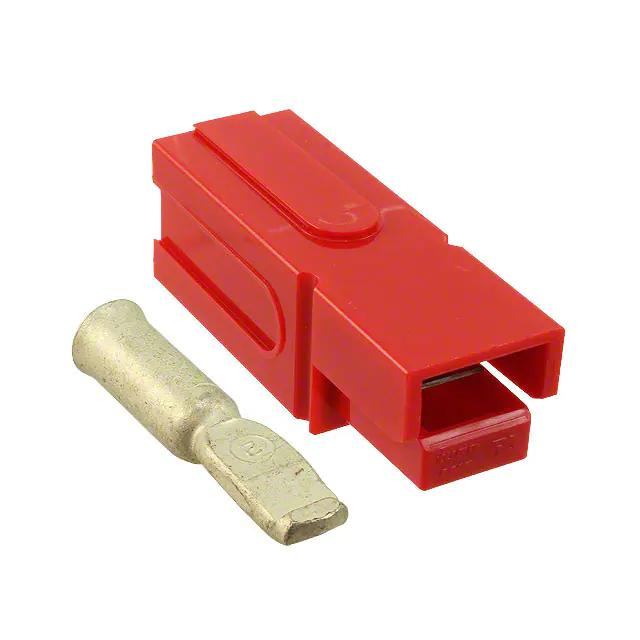

1604396-4CONN PLUG 1POS IN-LINE CRIMP |
7,350 |
|
Datasheet |
Power Series 180 | Bulk | Active | Single Pole | Non-Gendered | 1 | - | Free Hanging (In-Line) | 1 | Crimp | 2 AWG | Stackable | Red |
|
1604042-6CONN PLUG 2POS IN-LINE CRIMP |
2,550 |
|
Datasheet |
Power Series 175 | Bulk | Active | 2 Poles | Non-Gendered | 2 | - | Free Hanging (In-Line) | 1 | Crimp | 1/0 AWG | - | Black |
