Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZXTNS618MCTATRANS NPN 20V 4.5A DFN3020B-8 |
7,568 |
|
- |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | NPN + Diode (Isolated) | 4.5 A | 20 V | 270mV @ 125mA, 4.5A | 25nA | 200 @ 2A, 2V | 3 W | 140MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3020B-8 |
|
BC547B_J35ZTRANS NPN 45V 0.1A TO-92-3 |
6,150 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Bulk | Obsolete | NPN | 100 mA | 45 V | 600mV @ 5mA, 100mA | 15nA (ICBO) | 200 @ 2mA, 5V | 500 mW | 300MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
,TO-226_straightlead.jpg)
|
FJN3303FBUTRANS NPN 400V 1.5A TO-92-3 |
4,050 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | 10µA (ICBO) | 14 @ 500mA, 2V | 650 mW | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
FJN3303FTATRANS NPN 400V 1.5A TO-92-3 |
13,800 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | 10µA (ICBO) | 14 @ 500mA, 2V | 650 mW | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
JANTX2N3762TRANS PNP 40V 1.5A TO-39 |
4,854 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | PNP | 1.5 A | 40 V | 900mV @ 100mA, 1A | 10µA (ICBO) | 30 @ 1A, 1.5V | 1 W | - | -55°C ~ 200°C (TJ) | Military | MIL-PRF-19500/396 | Through Hole | TO-39 |
|

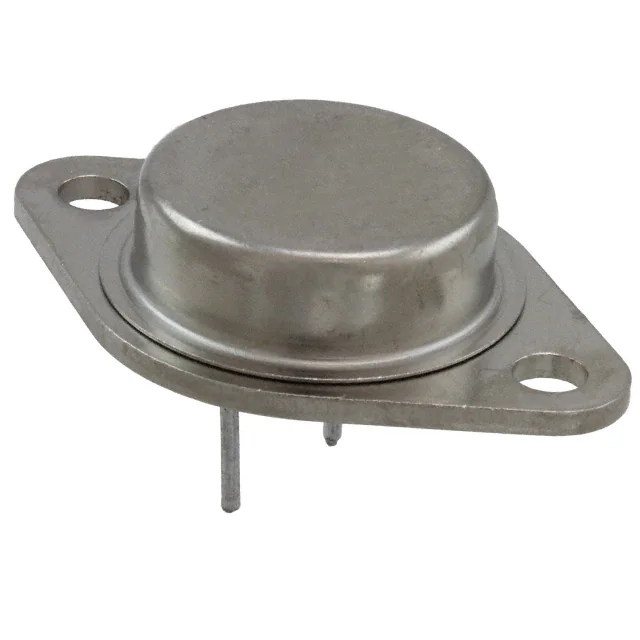

JANTX2N6251TRANS NPN 350V 10A TO-3 |
10,870 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | NPN | 10 A | 350 V | 1.5V @ 1.67A, 10A | 1mA | 6 @ 10A, 3V | 5.5 W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/510 | Through Hole | TO-3 |
|
2SA2112-ANTRANS PNP 50V 3A 3-NMP |
19,792 |
|
- |
- | SC-71 | Tape & Reel (TR) | Obsolete | PNP | 3 A | 50 V | 700mV @ 100mA, 2A | 1µA (ICBO) | 200 @ 100mA, 10V | 1 W | 390MHz | 150°C (TJ) | - | - | Through Hole | 3-NMP |
|
|
2SC4487S-ANTRANS NPN 50V 0.3A 3-NMP |
14,348 |
|
Datasheet |
- | SC-71 | Tape & Reel (TR) | Obsolete | NPN | 300 mA | 50 V | 500mV @ 100mA, 2A | 1µA (ICBO) | 140 @ 100mA, 2V | 1 W | 150MHz | 150°C (TJ) | - | - | Through Hole | 3-NMP |
.jpg)
|
2SC4837S-AYTRANS NPN 50V 4A FLP |
8,368 |
|
- |
- | TO-220-3 No Tab | Tape & Reel (TR) | Obsolete | NPN | 4 A | 50 V | 500mV @ 100mA, 2A | 1µA (ICBO) | 140 @ 10mA, 2V | 1.5 W | 150MHz | - | - | - | Through Hole | FLP |
|
2SC6097-ETRANS NPN 60V 3A TP |
10,792 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Bag | Obsolete | NPN | 3 A | 60 V | 135mV @ 100mA, 1A | 1µA (ICBO) | 300 @ 100mA, 2V | 800 mW | 390MHz | 150°C (TJ) | - | - | Through Hole | TP |
|
TTC012(Q)TRANS NPN 375V 2A PW-MOLD2 |
8,858 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Bulk | Obsolete | NPN | 2 A | 375 V | 1V @ 62.5mA, 500mA | 10µA (ICBO) | 100 @ 300mA, 5V | 1.1 W | - | 150°C (TJ) | - | - | Through Hole | PW-MOLD2 |
|
BC817K16WH6327XTSA1TRANS NPN 45V 0.5A PG-SOT323 |
7,916 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 500 mA | 45 V | 700mV @ 50mA, 500mA | 100nA (ICBO) | 100 @ 100mA, 1V | 250 mW | 170MHz | 150°C (TJ) | - | - | Surface Mount | PG-SOT323 |
|
2SA1507STRANS PNP 160V 1.5A TO-126ML |
9,008 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Bulk | Obsolete | PNP | 1.5 A | 160 V | 500mV @ 50mA, 500mA | 1µA (ICBO) | 100 @ 100mA, 5V | 1.5 W | 120MHz | 150°C (TJ) | - | - | Through Hole | TO-126ML |
|
2SA1709S-ANTRANS PNP 100V 2A 3-NMP |
17,296 |
|
Datasheet |
- | SC-71 | Tape & Reel (TR) | Obsolete | PNP | 2 A | 100 V | 600mV @ 100mA, 1A | 100nA (ICBO) | 100 @ 100mA, 5V | 1 W | 120MHz | 150°C (TJ) | - | - | Through Hole | 3-NMP |
|
|
2SA1770S-ANTRANS PNP 160V 1.5A 3-NMP |
7,450 |
|
Datasheet |
- | SC-71 | Tape & Reel (TR) | Obsolete | PNP | 1.5 A | 160 V | 500mV @ 50mA, 500mA | 1µA (ICBO) | 100 @ 100mA, 5V | 1 W | 120MHz | 150°C (TJ) | - | - | Through Hole | 3-NMP |
|
2SA2222TRANS PNP 50V 10A TO-220ML |
13,366 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Obsolete | PNP | 10 A | 50 V | 500mV @ 300mA, 6A | 10µA (ICBO) | 150 @ 270mA, 2V | 2 W | 230MHz | 150°C (TJ) | - | - | Through Hole | TO-220ML |
|
2SC2812N6-TB-ETRANS NPN 50V 0.15A 3-CP |
8,484 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 150 mA | 50 V | 500mV @ 5mA, 50mA | 100nA (ICBO) | 135 @ 1mA, 6V | 200 mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | 3-CP |
|
|
2SC3902TTRANS NPN 160V 1.5A TO-126ML |
14,320 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Bulk | Obsolete | NPN | 1.5 A | 160 V | 450mV @ 50mA, 500mA | 1µA (ICBO) | 100 @ 100mA, 5V | 1.5 W | 120MHz | 150°C (TJ) | - | - | Through Hole | TO-126ML |
|
|
2SC4027S-ETRANS NPN 160V 1.5A TP |
10,146 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Bulk | Obsolete | NPN | 1.5 A | 160 V | 450mV @ 50mA, 500mA | 1µA (ICBO) | 100 @ 100mA, 5V | 1 W | 120MHz | 150°C (TJ) | - | - | Through Hole | TP |
|
|
2SC5706-ETRANS NPN 50V 5A TP |
19,772 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Bulk | Obsolete | NPN | 5 A | 50 V | 240mV @ 100mA, 2A | 1µA (ICBO) | 200 @ 500mA, 2V | 800 mW | 400MHz | 150°C (TJ) | - | - | Through Hole | TP |
