Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

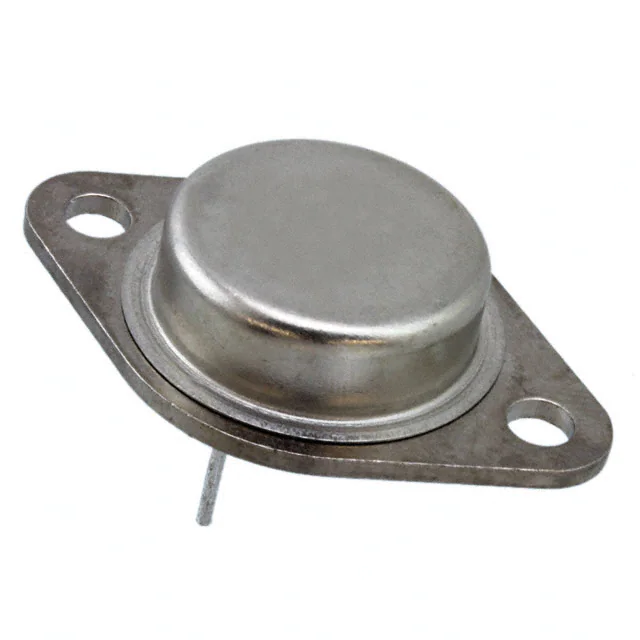

JANTX2N6051TRANS PNP DARL 80V 12A TO204AA |
12,092 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | PNP - Darlington | 12 A | 80 V | 3V @ 120mA, 12A | 1mA | 1000 @ 6A, 3V | 150 W | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/501 | Through Hole | TO-204AA (TO-3) |
|
2N6246TRANS PNP 60V 5A TO204AA |
7,956 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | PNP | 5 A | 60 V | - | - | - | 125 W | - | - | - | - | Through Hole | TO-204AA (TO-3) |
|
|
2N6248TRANS PNP 100V 15A TO204AA |
15,502 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | PNP | 15 A | 100 V | 1.3V @ 500µA, 5mA | - | - | 125 W | - | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204AA (TO-3) |
|
|
2N6247TRANS PNP 80V 15A TO204AA |
17,646 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | PNP | 15 A | 80 V | - | - | - | 125 W | - | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204AA (TO-3) |
|
|
2N5467TRANS PNP 400V 3A TO204AA |
5,722 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | PNP | 3 A | 400 V | - | - | - | 140 W | - | - | - | - | Through Hole | TO-204AA (TO-3) |
|
|
2N5466TRANS PNP 400V 3A TO204AA |
19,674 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | PNP | 3 A | 400 V | - | - | - | 140 W | - | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204AA (TO-3) |
|
2N5302TRANS NPN 60V 30A TO204AA |
13,204 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | NPN | 30 A | 60 V | 3V @ 6A, 30A | 10µA | 15 @ 15A, 2V | 5 W | - | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204AA (TO-3) |
|

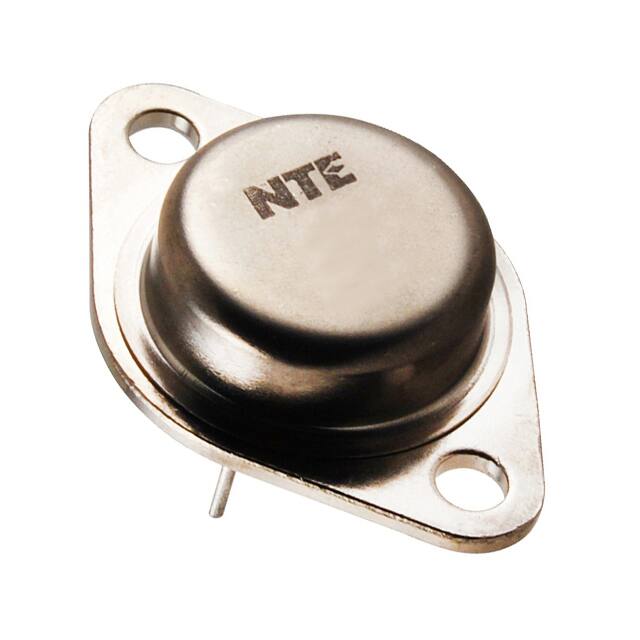

2N5301NPN TRANSISTOR |
18,998 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2N5303TRANS NPN 80V 20A TO204AA |
19,382 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | NPN | 20 A | 80 V | 2V @ 4A, 20A | 10µA | 15 @ 10A, 2V | 5 W | - | -65°C ~ 200°C (TJ) | - | - | Through Hole | TO-204AA (TO-3) |
|
|
JANTXV2N6546TRANS NPN 300V 15A TO204AA |
19,918 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Discontinued at Digi-Key | NPN | 15 A | 300 V | 5V @ 3A, 15A | - | 12 @ 5A, 2V | 175 W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/525 | Through Hole | TO-204AA (TO-3) |
|
|
JANTXV2N6547TRANS NPN 400V 15A TO204AA |
5,446 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Obsolete | NPN | 15 A | 400 V | 5V @ 3A, 15A | - | 12 @ 5A, 2V | 175 W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/525 | Through Hole | TO-204AA (TO-3) |
|
|
JANTV2N6546TRANS NPN 300V 15A TO204AA |
11,472 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | NPN | 15 A | 300 V | 5V @ 3A, 15A | - | 12 @ 5A, 2V | 175 W | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/525 | Through Hole | TO-204AA (TO-3) |
|
2N6436PNP TRANSISTOR |
5,028 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2N5804TRANS PNP 225V 5A TO-3 |
18,726 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | PNP | 5 A | 225 V | - | - | - | 62 W | - | - | - | - | Through Hole | TO-3 |
|
|
2N5805TRANS PNP 300V 5A TO-3 |
10,542 |
|
- |
- | TO-204AA, TO-3 | Bulk | Active | PNP | 5 A | 300 V | - | - | - | 62 W | - | - | - | - | Through Hole | TO-3 |
|
2N4399TRANS PNP 60V 30A TO204AA |
8,536 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | PNP | 30 A | 60 V | 750mV @ 1A, 10A | 100µA | 15 @ 15A, 2V | 5 W | - | -55°C ~ 200°C (TJ) | - | - | Through Hole | TO-204AA (TO-3) |
|
|
JANS2N2484UBTRANS NPN 60V 0.05A UB |
7,056 |
|
- |
- | 4-SMD, No Lead | Bulk | Active | NPN | 50 mA | 60 V | 300mV @ 100µA, 1mA | 2nA | 250 @ 1mA, 5V | 360 mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/376 | Surface Mount | UB |
|
JANS2N2484UB/TRTRANS NPN 60V 0.05A UB |
5,674 |
|
- |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | NPN | 50 mA | 60 V | 300mV @ 100µA, 1mA | 2nA | 250 @ 1mA, 5V | 360 mW | - | -65°C ~ 200°C (TJ) | Military | MIL-PRF-19500/376 | Surface Mount | UB |
|
|
2N1702NPN TRANSISTOR |
19,202 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JANSR2N2222AUB/E10TRANS NPN 50V 0.8A UB |
10,988 |
|
- |
- | 3-SMD, No Lead | Bulk | Active | NPN | 800 mA | 50 V | 1V @ 50mA, 500mA | 50nA | 100 @ 150mA, 10V | 500 mW | - | -65°C ~ 200°C (TJ) | - | - | Surface Mount | UB |
