Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBSS5350T,215TRANS PNP 50V 2A TO-236AB |
56,612 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP | 2 A | 50 V | 390mV @ 300mA, 3A | 100nA (ICBO) | 200 @ 1A, 2V | 540 mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | TO-236AB |
SOT89.jpg)
|
BCX53-16,115TRANS PNP 80V 1A SOT-89 |
41,556 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | PNP | 1 A | 80 V | 500mV @ 50mA, 500mA | 100nA (ICBO) | 100 @ 150mA, 2V | 1.3 W | 145MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-89 |
|
MMBT489LT1GTRANS NPN 30V 1A SOT23-3 |
28,136 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN | 1 A | 30 V | 200mV @ 100mA, 1A | 100nA | 300 @ 500mA, 5V | 710 mW | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
BC63916-D74ZTRANS NPN 80V 1A TO-92-3 |
26,986 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Active | NPN | 1 A | 80 V | 500mV @ 50mA, 500mA | 100nA (ICBO) | 100 @ 150mA, 2V | 1 W | 100MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
PZT2907A,115TRANS PNP 60V 0.6A SOT-223 |
6,394 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | PNP | 600 mA | 60 V | 1.6V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 1.15 W | 200MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
|
BCX5616QTATRANS NPN 80V 1A SOT-89-3 |
106,114 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | NPN | 1 A | 80 V | 500mV @ 50mA, 500mA | 100nA (ICBO) | 100 @ 150mA, 2V | 2 W | 150MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
PBSS4350X,135TRANS NPN 50V 3A SOT-89 |
69,876 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | NPN | 3 A | 50 V | 370mV @ 300mA, 3A | 100nA | 300 @ 1A, 2V | 1.6 W | 100MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-89 |
|
|
PBSS4350X,115TRANS NPN 50V 3A SOT-89 |
38,166 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | NPN | 3 A | 50 V | 370mV @ 300mA, 3A | 100nA | 300 @ 1A, 2V | 1.6 W | 100MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-89 |
|
CMPT3019 TR PBFREETRANS NPN 80V 0.5A SOT-23 |
35,054 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN | 500 mA | 80 V | 500mV @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 350 mW | 400MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
NSS20200LT1GTRANS PNP 20V 2A SOT23-3 |
34,768 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP | 2 A | 20 V | 180mV @ 200mA, 2A | 100nA (ICBO) | 250 @ 500mA, 2V | 460 mW | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
DSS20200L-7TRANS PNP 20V 2A SOT-23-3 |
16,998 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP | 2 A | 20 V | 180mV @ 200mA, 2A | 100nA (ICBO) | 180 @ 1A, 2V | 600 mW | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
30A02CH-TL-ETRANS PNP 30V 0.7A 3-CPH |
14,728 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP | 700 mA | 30 V | 220mV @ 10mA, 200mA | 100nA (ICBO) | 200 @ 10mA, 2V | 700 mW | 520MHz | 150°C (TJ) | - | - | Surface Mount | 3-CPH |
|
BCP5616QTATRANS NPN 80V 1A SOT-223-3 |
9,928 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | NPN | 1 A | 80 V | 500mV @ 50mA, 500mA | 100nA (ICBO) | 100 @ 150mA, 2V | 2 W | 150MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223-3 |
|

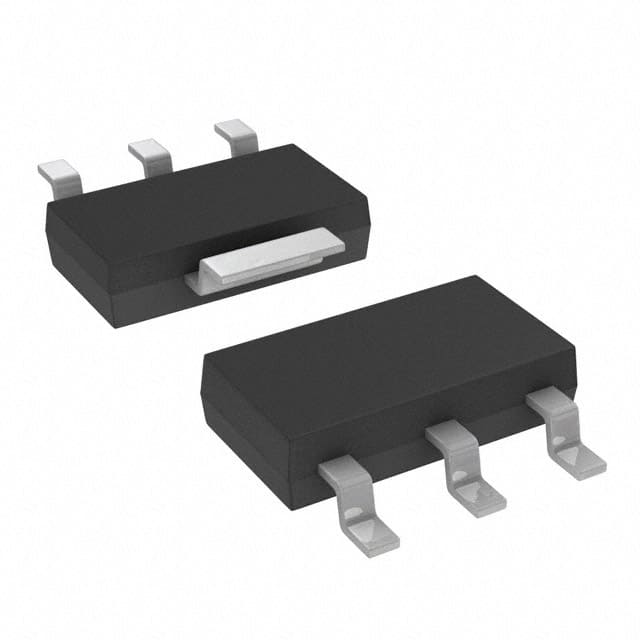

BCP56-16-AU_R2_000A1TRANS NPN 100V 1A SOT-223 |
6,618 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | NPN | 1 A | 100 V | 500mV @ 100mA, 1A | 100nA (ICBO) | 100 @ 150mA, 2V | 2.6 W | 100MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
|
MMBT3906LP-7BTRANS PNP 40V 0.2A X1-DFN1006-3 |
139,780 |
|
Datasheet |
- | 3-UFDFN | Tape & Reel (TR) | Active | PNP | 200 mA | 40 V | 400mV @ 5mA, 50mA | 50nA (ICBO) | 100 @ 10mA, 1V | 250 mW | 300MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-3 |
|
|
PBSS5350Z,135TRANS PNP 50V 3A SOT-223 |
111,266 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | PNP | 3 A | 50 V | 300mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 2A, 2V | 2 W | 100MHz | 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
MMBTA28TRANS NPN DARL 80V 0.8A SOT-23-3 |
62,826 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN - Darlington | 800 mA | 80 V | 1.5V @ 100µA, 100mA | 500nA | 10000 @ 100mA, 5V | 350 mW | 125MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
NSS40200LT1GTRANS PNP 40V 2A SOT23-3 |
25,986 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP | 2 A | 40 V | 170mV @ 200mA, 2A | 100nA (ICBO) | 220 @ 500mA, 2V | 460 mW | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
2N4424 PBFREETRANS NPN 40V 0.5A TO-92-3 |
13,594 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | NPN | 500 mA | 40 V | 300mV @ 3mA, 50mA | 30nA | 180 @ 2mA, 4.5V | 625 mW | - | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
SSTA06T116TRANS NPN 80V 0.5A SST3 |
12,140 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | NPN | 500 mA | 80 V | 250mV @ 10mA, 100mA | 100nA (ICBO) | 100 @ 100mA, 1V | 350 mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | SST3 |
