Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DXTN07100BP5Q-13TRANS NPN 100V 2A POWERDI 5 |
10,000 |
|
Datasheet |
- | PowerDI™ 5 | Tape & Reel (TR) | Active | NPN | 2 A | 100 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 500mA, 2V | 3.2 W | 175MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI™ 5 |
|
NSV40200UW6T1GTRANS PNP 40V 2A 6WDFN |
5,996 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | PNP | 2 A | 40 V | 300mV @ 20mA, 2A | 100nA (ICBO) | 150 @ 1A, 2V | 875 mW | 140MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
,TO-226_straightlead.jpg)
|
ZTX649STZTRANS NPN 25V 2A E-LINE |
3,910 |
|
Datasheet |
- | E-Line-3, Formed Leads | Cut Tape (CT) | Active | NPN | 2 A | 25 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 100 @ 1A, 2V | 1 W | 240MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
ZXTN2011ZTATRANS NPN 100V 4.5A SOT-89-3 |
2,480 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | NPN | 4.5 A | 100 V | 195mV @ 500mA, 5A | 50nA (ICBO) | 100 @ 2A, 2V | 2.1 W | 130MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
DXTN3C60PS-13TRANS NPN 60V 3A POWERDI5060-8 |
4,092 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | NPN | 3 A | 60 V | 270mV @ 300mA, 3A | 100nA | 200 @ 500mA, 2V | 2.25 W | 140MHz | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
NJVMJD210T4GTRANS PNP 25V 5A DPAK |
4,130 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | PNP | 5 A | 25 V | 1.8V @ 1A, 5A | 100nA (ICBO) | 45 @ 2A, 1V | 1.4 W | 65MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
2SA1593S-TL-ETRANS PNP 100V 2A TP-FA |
3,594 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | PNP | 2 A | 100 V | 600mV @ 100mA, 1A | 100nA (ICBO) | 140 @ 100mA, 5V | 1 W | 120MHz | 150°C (TJ) | - | - | Surface Mount | TP-FA |
|
|
FZT855QTATRANS NPN 150V 5A SOT-223-3 |
908 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | NPN | 5 A | 150 V | 355mV @ 500mA, 5A | 50nA | 100 @ 1A, 5V | 1.6 W | 90MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223-3 |
|

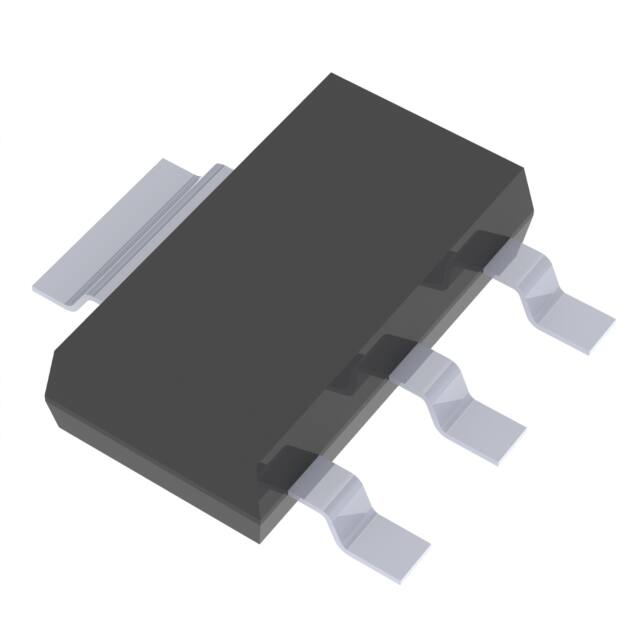

FZT560QTATRANS PNP 500V 0.15A SOT-223 |
1,980 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | PNP | 150 mA | 500 V | 500mV @ 10mA, 50mA | 100nA | 100 @ 1mA, 10V | 2 W | 60MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
|
|
ZTX605STZTRANS NPN DARL 120V 1A E-LINE |
15,938 |
|
Datasheet |
- | E-Line-3, Formed Leads | Cut Tape (CT) | Active | NPN - Darlington | 1 A | 120 V | 1.5V @ 1mA, 1A | 10µA | 2000 @ 1A, 5V | 1 W | 150MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
ZTX758TRANS PNP 400V 0.5A E-LINE |
11,190 |
|
Datasheet |
- | E-Line-3 | Bulk | Active | PNP | 500 mA | 400 V | 500mV @ 10mA, 100mA | 100nA (ICBO) | 50 @ 100mA, 5V | 1 W | 50MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
2SB1181TLRTRANS PNP 80V 1A CPT3 |
4,754 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | PNP | 1 A | 80 V | 400mV @ 50mA, 500mA | 1µA (ICBO) | 120 @ 100mA, 3V | 10 W | 100MHz | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
|
ZTX601BSTZTRANS NPN DARL 160V 1A E-LINE |
3,978 |
|
Datasheet |
- | E-Line-3, Formed Leads | Cut Tape (CT) | Active | NPN - Darlington | 1 A | 160 V | 1.2V @ 10mA, 1A | 10µA | 10000 @ 500mA, 10V | 1 W | 250MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
NSS1C301CTWGTRANS NPN 100V 3A LFPAK4 |
5,380 |
|
Datasheet |
- | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | NPN | 3 A | 100 V | 250mV @ 300mA, 3A | 100nA (ICBO) | 200 @ 500mA, 2V | 1 W | 120MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | LFPAK4 (5x6) |
|
ZXTP2027FQTATRANS PNP 60V 4A SOT-23-3 |
5,326 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | PNP | 4 A | 60 V | 240mV @ 200mA, 4A | 20nA | 100 @ 2A, 2V | 1 W | 165MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
ZTX690BSTZTRANS NPN 45V 2A E-LINE |
8,000 |
|
Datasheet |
- | E-Line-3, Formed Leads | Cut Tape (CT) | Active | NPN | 2 A | 45 V | 500mV @ 5mA, 1A | 100nA (ICBO) | 400 @ 1A, 2V | 1 W | 150MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
FZT657QTATRANS NPN 300V 0.5A SOT-223-3 |
1,930 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | NPN | 500 mA | 300 V | 500mV @ 10mA, 100mA | 100nA (ICBO) | 50 @ 100mA, 5V | 3 W | 30MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
2SB1182TLRTRANS PNP 32V 2A CPT3 |
4,162 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | PNP | 2 A | 32 V | 800mV @ 200mA, 2A | 100nA (ICBO) | 180 @ 500mA, 3V | 10 W | 100MHz | 150°C (TJ) | - | - | Surface Mount | CPT3 |
|
|
FZT603QTATRANS NPN DARL 80V 2A SOT-223-3 |
636 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | NPN - Darlington | 2 A | 80 V | 1.13V @ 20mA, 2A | 10µA | 5000 @ 500mA, 5V | 1.2 W | 150MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223-3 |
|
|
NJVMJD44E3T4GTRANS NPN DARL 80V 10A DPAK |
4,760 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | NPN - Darlington | 10 A | 80 V | 2V @ 20mA, 10A | 10µA | 1000 @ 5A, 5V | 1.75 W | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
