Bipolar Transistor Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HN1B04FE-Y,LFTRANS NPN/PNP 50V 150MA ES6 |
8,162 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP | 150mA | 50V | 250mV @ 10mA, 100mA | 100nA (ICBO) | 120 @ 2mA, 6V | 100mW | 80MHz | 150°C (TJ) | - | - | Surface Mount | ES6 |
|
BC847BSQ-7-FTRANS 2NPN 45V 100MA SOT-363 |
15,674 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN (Dual) | 100mA | 45V | 400mV @ 5mA, 100mA | 20nA (ICBO) | 200 @ 2mA, 5V | 200mW | 100MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
PUMZ2,125TRANS NPN/PNP 50V 150MA 6-TSSOP |
17,890 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP | 150mA | 50V | 250mV @ 5mA, 50mA / 500mV @ 5mA, 50mA | 100nA (ICBO) | 120 @ 1mA, 6V | 300mW | 100MHz, 190MHz | 150°C (TJ) | - | - | Surface Mount | 6-TSSOP |
|
|
HN1C01FE-Y,LFTRANS 2NPN DUAL 50V 150MA ES6 |
6,428 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN (Dual) | 150mA | 50V | 250mV @ 10mA, 100mA | 100nA (ICBO) | 120 @ 2mA, 6V | 100mW | 80MHz | 150°C (TJ) | - | - | Surface Mount | ES6 |
|
HN1C01FYTE85LFTRANS 2NPN DUAL 50V 150MA SM6 |
6,472 |
|
Datasheet |
- | SC-74, SOT-457 | Tape & Reel (TR) | Active | 2 NPN (Dual) | 150mA | 50V | 250mV @ 10mA, 100mA | 100nA (ICBO) | 120 @ 2mA, 6V | 300mW | 80MHz | 125°C (TJ) | - | - | Surface Mount | SM6 |
|
EMZ52T2RTRANS NPN/PNP 50V 100MA EMT6 |
9,080 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP | 100mA | 50V | 300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA | 100nA (ICBO) | 120 @ 1mA, 6V | 150mW | 350MHz, 300MHz | 150°C (TJ) | - | - | Surface Mount | EMT6 |
|
BC807RAZTRANS 2PNP 45V 500MA DFN1412-6 |
2,032 |
|
Datasheet |
- | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Active | 2 PNP (Dual) | 500mA | 45V | 700mV @ 50mA, 500mA | 100nA (ICBO) | 160 @ 100mA, 1V | 350mW | 80MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | DFN1412-6 |
|
MMDT5551-TPTRANS 2NPN 160V 200MA SOT-363 |
5,978 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN (Dual) | 200mA | 160V | 150mV @ 1mA, 10mA | 50nA (ICBO) | 80 @ 10mA, 5V | 200mW | 300MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
PEMT1,115TRANS 2PNP 40V 100MA SOT-666 |
7,232 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 2 PNP (Dual) | 100mA | 40V | 200mV @ 5mA, 50mA | 100nA (ICBO) | 120 @ 1mA, 6V | 300mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | SOT-666 |
|
BCV63,215TRANS 2NPN 30V/6V 100MA SOT-143B |
14,656 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Active | 2 NPN (Dual) | 100mA | 30V, 6V | 650mV @ 5mA, 100mA / 250mV @ 5mA, 100mA | 15nA (ICBO) | 110 @ 2mA, 5V / 110 @ 2mA, 700mV | 250mW | 100MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-143B |
|
HN1C03FU-A(TE85L,FTRANS 2NPN DUAL 20V 300MA US6 |
19,342 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN (Dual) | 300mA | 20V | 100mV @ 3mA, 30mA | 100nA (ICBO) | 200 @ 4mA, 2V | 200mW | 30MHz | 150°C (TJ) | - | - | Surface Mount | US6 |
|
CMKT3920 TR PBFREETRANS 2NPN 50V 200MA SOT-363 |
16,748 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN (Dual) | 200mA | 50V | 400mV @ 5mA, 50mA | 100nA (ICBO) | 120 @ 1mA, 6V | 350mW | 300MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
PBSS4160PANP,115TRANS NPN/PNP 60V 1A 6HUSON |
5,158 |
|
Datasheet |
- | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | 1 NPN, 1 PNP | 1A | 60V | 120mV @ 50mA, 500mA | 100nA (ICBO) | 150 @ 500mA, 2V | 510mW | 175MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-HUSON (2x2) |
|
|
CMLT2222AG TR PBFREETRANS 2NPN 40V 600MA SOT-563 |
5,718 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Active | 2 NPN (Dual) | 600mA | 40V | 1V @ 50mA, 500mA | 10nA (ICBO) | 100 @ 150mA, 10V | 150mW | 300MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-563 |
|

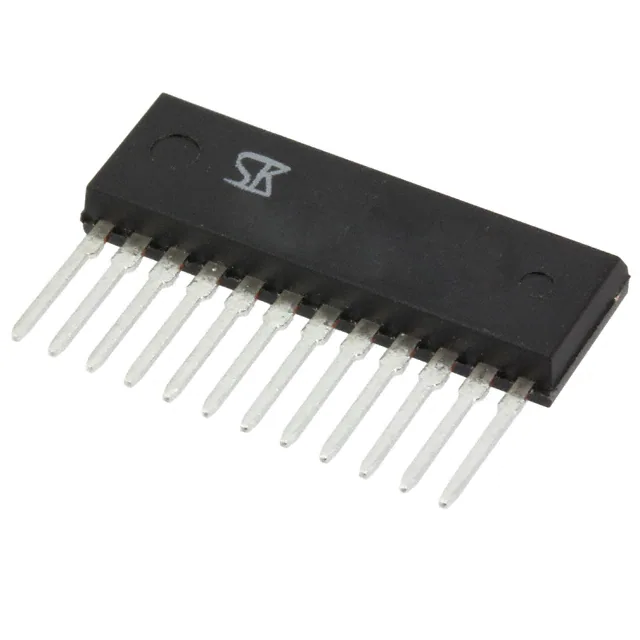

SMA4032TRANS 4NPN DARL 100V 3A 12-SIP |
3,288 |
|
Datasheet |
- | 12-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | 40MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
MAT01AHZTRANS 2NPN 45V 25MA TO-78-6 |
6,340 |
|
Datasheet |
- | TO-78-6 Metal Can | Tray | Active | 2 NPN (Dual) Matched Pair | 25mA | 45V | 800mV @ 1mA, 10mA | 300nA | - | 500mW | 450MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-78-6 |
|
BC847BPN-AU_R1_000A1TRANS NPN/PNP 45V 100MA SOT-363 |
10,552 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 1 NPN, 1 PNP Complementary | 100mA | 45V | 400mV @ 5mA, 100mA / 650mV @ 5mA, 100mA | 15nA (ICBO) | 200 @ 2mA, 5V | 200mW | 100MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
BC847BSQ-TPTRANS 2NPN 45V 100MA SOT-363 |
13,736 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN | 100mA | 45V | 650mV @ 5mA, 100mA | 100nA (ICBO) | 200 @ 2mA, 5V | 200mW | 100MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
BCM847BSTRANS 2NPN 45V 100MA SOT-363 |
2,462 |
|
Datasheet |
- | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN | 100mA | 45V | 600mV @ 5mA, 100mA | 15nA (ICBO) | 200 @ 2mA, 5V | 250mW | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
|
BCM846BSTRANS 2NPN 45V 100MA SOT-363 |
17,024 |
|
Datasheet |
- | 6-VSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 NPN | 100mA | 65V | 600mV @ 5mA, 100mA | 15nA (ICBO) | 200 @ 2mA, 5V | 250mW | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-363 |
