Bipolar Transistor Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPA2001C-ATRANS 7NPN DARL 60V 500MA 16DIP |
1,000 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Bulk | Active | 7 NPN Darlington | 500mA | 60V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | 900mW | - | -30°C ~ 75°C | - | - | Through Hole | 16-DIP |
|
CA3127EXHIGH FREQ NPN TRANSISTOR ARRAY |
1,194 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UPA1476H-AZTRANS 4NPN DARL 115V 2A 10-SIP |
5,092 |
|
Datasheet |
- | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 2A | 115V | 1.5V @ 1mA, 1A | 1µA (ICBO) | 2000 @ 1A, 2V | 3.5W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
MPQ6100ATRANS 2NPN 2PNP 45V TO-116 |
38,380 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | 2 NPN, 2 PNP | - | 45V | - | 10nA (ICBO) | - | 3W | 50MHz | - | - | - | Through Hole | TO-116 |
|
|
UPA1436AH-AZTRANS 4NPN DARL 100V 3A 10-SIP |
378 |
|
Datasheet |
- | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 1.5mA, 1.5A | 1µA (ICBO) | 2000 @ 1.5A, 2V | 3.5W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
STA302ATRANS 3PNP DARL 50V 4A 8-SIP |
7,346 |
|
Datasheet |
- | 8-SIP | Tube | Active | 3 PNP Darlington (Emitter Coupled) | 4A | 50V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 3W | - | 150°C (TJ) | - | - | Through Hole | 8-SIP |
|
|
UPA1453H-AZTRANS 4PNP QUAD 60V 5A 10-SIP |
1,454 |
|
Datasheet |
- | 10-SIP | Bulk | Active | 4 PNP (Quad) | 5A | 60V | 300mV @ 200mA, 2A | 10µA (ICBO) | 100 @ 2A, 1V | 3.5W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
ULN2069BTRANS 4NPN DARL 80V 1.75A 16DIP |
53,568 |
|
Datasheet |
- | 16-PowerDIP (0.300", 7.62mm) | Tube | Obsolete | 4 NPN Darlington (Quad) | 1.75A | 80V | 1.5V @ 2.25mA, 1.5A | - | - | 1W | - | -20°C ~ 85°C (TA) | - | - | Through Hole | 16-PowerDIP (20x7.10) |
|

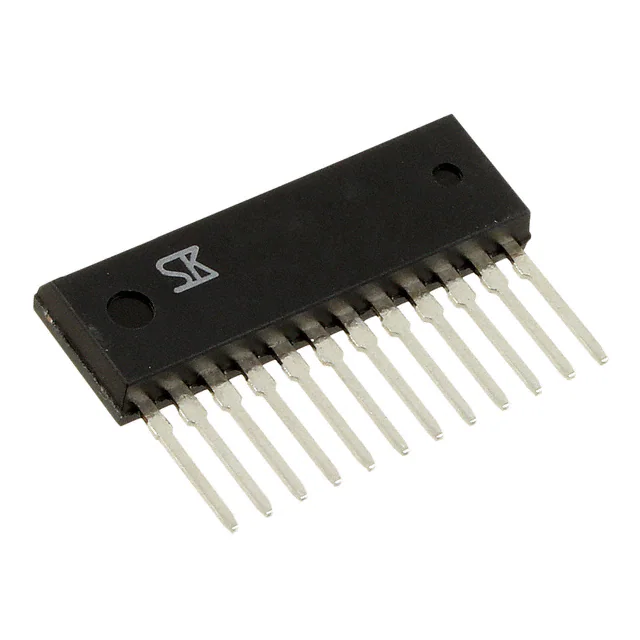

SMA4030TRANS 4NPN DARL 100V 3A 12-SIP |
5,484 |
|
Datasheet |
- | 12-SIP | Tube | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | 40MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
UDN2879W-2TRANS 4NPN DARL 80V 4A 12SIP |
10,482 |
|
Datasheet |
- | 12-SIP Exposed Tab | Bulk | Obsolete | 4 NPN Darlington (Quad) | 4A | 80V | - | 100µA | - | - | - | -20°C ~ 85°C (TA) | - | - | Through Hole | 12-SIP |
|
STA408ATRANS 4PNP DARL 120V 4A 10-SIP |
4,798 |
|
Datasheet |
- | 10-SIP | Bulk | Obsolete | 4 PNP Darlington (Quad) | 4A | 120V | 1.5V @ 4mA, 2A | 100µA (ICBO) | 2000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA404ATRANS 4NPN DARL 200V 3A 10-SIP |
1,582 |
|
Datasheet |
- | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 200V | 2V @ 1.5mA, 1A | 100µA (ICBO) | 1000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SMA6010TRANS 3NPN/3PNP DARL 60V 12SIP |
458 |
|
Datasheet |
- | 12-SIP | Tube | Active | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 4A | 60V | 1.5V @ 6mA, 3A | 100µA (ICBO) | 2000 @ 3A, 4V | 4W | 75MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
STA402ATRANS 4PNP DARL 50V 4A 10-SIP |
906 |
|
Datasheet |
- | 10-SIP | Bulk | Active | 4 PNP Darlington (Quad) | 4A | 50V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
ULN2067BTRANS 4NPN DARL 80V 1.75A 16DIP |
1,412 |
|
Datasheet |
- | 16-PowerDIP (0.300", 7.62mm) | Tube | Obsolete | 4 NPN Darlington (Quad) | 1.75A | 80V | 1.5V @ 2.25mA, 1.5A | - | - | 1W | - | -20°C ~ 85°C (TA) | - | - | Through Hole | 16-PowerDIP (20x7.10) |
|
MPQ2369 TIN/LEADTRANS 4NPN QUAD 15V 500MA TO-116 |
250 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | 4 NPN (Quad) | 500mA | 15V | 250mV @ 1mA, 10mA | 400nA (ICBO) | 20 @ 100mA, 2V | 500mW | 450MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-116 |
|
MAT04FYTRANS 4NPN 40V 30MA 14CERDIP |
26,122 |
|
Datasheet |
- | 14-CDIP (0.300", 7.62mm) | Bulk | Active | 4 NPN (Quad) Matched Pairs | 30mA | 40V | 60mV @ 100µA, 1mA | 5nA | 400 @ 1mA, 30V | 350mW | 300MHz | -40°C ~ 85°C | - | - | Through Hole | 14-CERDIP |
|
SSM2220PTRANS 2PNP DUAL 36V 20MA 8-PDIP |
3,500 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 PNP (Dual) | 20mA | 36V | 100mV @ 100µA, 1mA | - | - | - | 190MHz | -65°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
SLA6024TRANS 3NPN/3PNP DARL 60V 12SIP |
1,292 |
|
Datasheet |
- | 12-SIP Exposed Tab | Bulk | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 8A | 60V | 1.5V @ 10mA, 5A | 10µA (ICBO) | 2000 @ 5A, 4V | 5W | 50MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
UPA1454H-AZTRANS 4NPN QUAD 100V 5A 10-SIP |
2,750 |
|
Datasheet |
- | 10-SIP | Bulk | Active | 4 NPN (Quad) | 5A | 100V | 1.2V @ 30mA, 3A | 10µA (ICBO) | 800 @ 1A, 5V | 3.5W | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | 10-SIP |
