Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFG520W,115RF TRANS NPN 15V 9GHZ 4SO |
15,414 |
|
Datasheet |
- | SOT-343 Reverse Pinning | Tape & Reel (TR) | Obsolete | NPN | 15V | 9GHz | 1.1dB ~ 2.1dB @ 900MHz | - | 500mW | 60 @ 20mA, 6V | 70mA | 175°C (TJ) | - | - | Surface Mount | 4-SO |
SOT89.jpg)
|
BFQ149,115RF TRANS PNP 15V 5GHZ SOT89-3 |
16,822 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | PNP | 15V | 5GHz | 3.3dB @ 500MHz | - | 1W | 20 @ 70mA, 10V | 100mA | 175°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
BFT93W,115RF TRANS PNP 12V 4GHZ SOT323-3 |
17,870 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | PNP | 12V | 4GHz | 2.4dB ~ 3dB @ 500MHz ~ 1GHz | - | 300mW | 20 @ 30mA, 5V | 50mA | 150°C (TJ) | - | - | Surface Mount | SC-70 |
SOT223-1.jpg)
|
BLT70,115RF TRANS NPN 8V 900MHZ SOT223 |
18,886 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | NPN | 8V | 900MHz | - | - | 2.1W | 25 @ 100mA, 4.8V | 250mA | 175°C (TJ) | - | - | Surface Mount | SC-73 |
|
|
BLT80,115RF TRANS NPN 10V 900MHZ SOT223 |
4,820 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | NPN | 10V | 900MHz | - | - | 2W | 25 @ 150mA, 5V | 250mA | 175°C (TJ) | - | - | Surface Mount | SC-73 |
|
MX0912B251Y,114RF TRANS NPN 20V 1.215GHZ CDFM2 |
11,446 |
|
Datasheet |
- | SOT-439A | Tray | Obsolete | NPN | 20V | 1.215GHz | - | 7.4dB | 690W | - | 15A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
|
MX0912B351Y,114RF TRANS NPN 20V 1.215GHZ CDFM2 |
6,768 |
|
Datasheet |
- | SOT-439A | Tray | Obsolete | NPN | 20V | 1.215GHz | - | 7.6dB | 960W | - | 21A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|

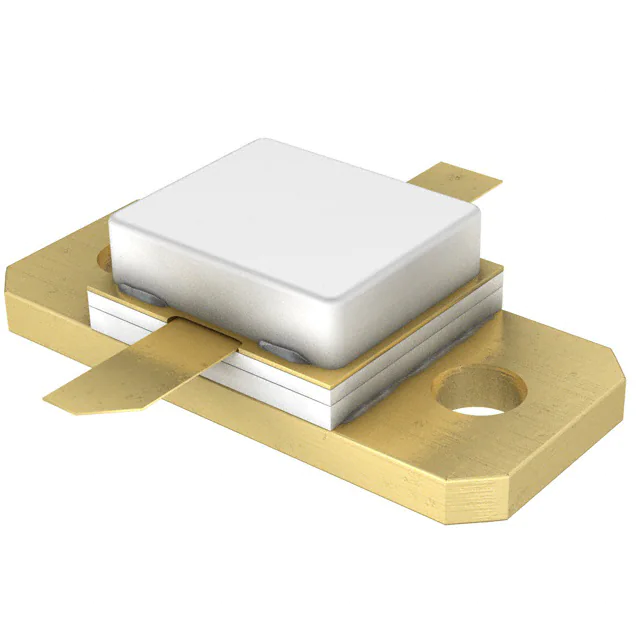

MZ0912B100Y,114RF TRANS NPN 20V 1.215GHZ CDFM2 |
11,506 |
|
Datasheet |
- | SOT-443A | Tray | Obsolete | NPN | 20V | 1.215GHz | - | 7.6dB | 290W | - | 6A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
|
MZ0912B50Y,114RF TRANS NPN 20V 1.215GHZ CDFM2 |
17,228 |
|
- |
- | SOT-443A | Tray | Obsolete | NPN | 20V | 1.215GHz | - | 8dB | 150W | - | 3A | - | - | - | Chassis Mount | CDFM2 |
|
BFG198,115RF TRANS NPN 10V 8GHZ SOT223 |
15,620 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | NPN | 10V | 8GHz | - | - | 1W | 40 @ 50mA, 5V | 100mA | 175°C (TJ) | - | - | Surface Mount | SC-73 |
|
|
BFG31,115RF TRANS PNP 15V 5GHZ SOT223 |
6,416 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | PNP | 15V | 5GHz | - | - | 1W | 25 @ 70mA, 10V | 100mA | 175°C (TJ) | - | - | Surface Mount | SC-73 |
|
BFG67,215RF TRANS NPN 10V 8GHZ SOT143B |
13,224 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 10V | 8GHz | 1.3dB ~ 3dB @ 1GHz ~ 2GHz | - | 380mW | 60 @ 15mA, 5V | 50mA | 175°C (TJ) | - | - | Surface Mount | SOT-143B |
|
|
BFG67/X,215RF TRANS NPN 10V 8GHZ SOT143B |
10,868 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | NPN | 10V | 8GHz | 1.3dB @ 1GHz | - | 380mW | 60 @ 15mA, 5V | 50mA | 175°C (TJ) | - | - | Surface Mount | SOT-143B |
|
|
BFQ19,115RF TRANS NPN 15V 5.5GHZ SOT89-3 |
10,674 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | NPN | 15V | 5.5GHz | 3.3dB @ 500MHz | - | 1W | 25 @ 70mA, 10V | 100mA | 175°C (TJ) | - | - | Surface Mount | SOT-89-3 |
SOT416.jpg)
|
BFR505T,115RF TRANS NPN 15V 9GHZ SC75 |
16,768 |
|
Datasheet |
- | SC-75, SOT-416 | Tape & Reel (TR) | Obsolete | NPN | 15V | 9GHz | 1.2dB ~ 2.1dB @ 900MHz | - | 150mW | 60 @ 5mA, 6V | 18mA | 150°C (TJ) | - | - | Surface Mount | SC-75 |
|
BLS2731-10,114RF TRANS NPN 75V 3.1GHZ CDFM2 |
15,814 |
|
Datasheet |
- | SOT-445C | Tray | Obsolete | NPN | 75V | 3.1GHz | - | 10dB | 145W | 40 @ 250mA, 5V | 1.5A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
BLS2731-110,114RF TRANS NPN 75V 3.1GHZ CDFM2 |
8,772 |
|
Datasheet |
- | SOT-423A | Tray | Obsolete | NPN | 75V | 3.1GHz | - | 7dB | 500W | 40 @ 3A, 5V | 12A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
|
BLS2731-20,114RF TRANS NPN 75V 3.1GHZ CDFM2 |
8,416 |
|
Datasheet |
- | SOT-445C | Tray | Obsolete | NPN | 75V | 3.1GHz | - | 10dB | 270W | 40 @ 500mA, 5V | 3A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
BLS2731-50,114RF TRANS NPN 75V 3.1GHZ CDFM2 |
11,764 |
|
Datasheet |
- | SOT-422A | Tray | Obsolete | NPN | 75V | 3.1GHz | - | 9dB | 80W | 40 @ 1.5A, 5V | 6A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
|
|
BLS3135-10,114RF TRANS NPN 75V 3.5GHZ CDFM2 |
13,572 |
|
Datasheet |
- | SOT-445C | Tray | Obsolete | NPN | 75V | 3.5GHz | - | 9dB | 34W | 40 @ 250mA, 5V | 1.5A | 200°C (TJ) | - | - | Chassis Mount | CDFM2 |
