Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH2226-50MTRANSISTOR,BIPOLAR,50W,36V,2.20- |
9,908 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 63V | - | - | 8dB | 159W | - | 6A | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
PH2226-110MTRANSISTOR,BIPOLAR,RADAR,110W,2. |
10,818 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 65V | - | - | 7.4dB | 583W | - | 15A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
|
1214-300MRF TRANS NPN 50V 1.4GHZ 55ST |
4,368 |
|
Datasheet |
- | 55ST | Bulk | Obsolete | NPN | 50V | 1.2GHz ~ 1.4GHz | - | 7dB | 88W | 20 @ 500mA, 5V | 4A | 200°C (TJ) | - | - | Chassis Mount | 55ST |
|
|
0510-50ARF TRANS 27V 1GHZ 55AV |
17,386 |
|
Datasheet |
- | 55AV | Bulk | Obsolete | - | 27V | 500MHz ~ 1GHz | - | 7dB | 50W | 10 @ 500mA, 5V | 3.7A | 200°C (TJ) | - | - | Chassis Mount | 55AV |
|
|
1517-110MRF TRANS NPN 70V 1.65GHZ 55AW-1 |
5,826 |
|
- |
- | 55AW-1 | Bulk | Obsolete | NPN | 70V | 1.48GHz ~ 1.65GHz | - | 7.3dB ~ 8.6dB | 350W | 20 @ 1A, 5V | 9A | - | - | - | Chassis Mount | 55AW-1 |
|
|
1214-150LRF TRANS NPN 65V 1.4GHZ 55ST-1 |
4,976 |
|
Datasheet |
- | 55ST-1 | Bulk | Obsolete | NPN | 65V | 1.2GHz ~ 1.4GHz | - | 7.15dB ~ 8.7dB | 320W | 20 @ 1A, 5V | 15A | 200°C (TJ) | - | - | Chassis Mount | 55ST-1 |
|
|
PH1214-110MTRANSISTOR,110W,1.20-1.40GHZ,40V |
19,402 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 70V | - | - | 7.4dB | 350W | - | 10.5A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
|
PH1214-80MTRANSISTOR,BIPOLAR,80W,1.20-1.40 |
14,084 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 70V | 1.4GHz | - | 7.9dB | 220W | - | 6.4A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
|
PH1214-300MTRANSISTOR,BIPOLAR,RADAR,300W,1. |
8,210 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 90V | - | - | 8.75dB | 583W | - | 21A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
|
MAPR-002729-170M00RF TRANS NPN 65V |
10,806 |
|
Datasheet |
- | - | Tray | Active | NPN | 65V | - | - | 9.11dB ~ 9.69dB | 170W | - | 27A | 200°C (TJ) | - | - | Chassis Mount | - |
|
|
1214-110MRF TRANS NPN 75V 1.4GHZ 55KT |
9,398 |
|
Datasheet |
- | 55KT | Bulk | Obsolete | NPN | 75V | 1.2GHz ~ 1.4GHz | - | 7.4dB | 270W | - | 8A | 200°C (TJ) | - | - | Chassis Mount | 55KT |
|
|
1214-370MRF TRANS NPN 75V 1.4GHZ 55ST |
10,572 |
|
Datasheet |
- | 55ST | Bulk | Obsolete | NPN | 75V | 1.2GHz ~ 1.4GHz | - | 8.7dB ~ 9dB | 600W | 10 @ 5A, 5V | 25A | 200°C (TJ) | - | - | Chassis Mount | 55ST |
|
|
10502RF TRANS NPN 65V 55SM |
4,668 |
|
Datasheet |
- | 55SM | Bulk | Obsolete | NPN | 65V | - | - | 8.5dB | 1458W | 20 @ 5A, 5V | 40A | 230°C (TJ) | - | - | Chassis Mount | 55SM |
|
|
PH1214-55ELTRANSISTOR,BIPOLAR,55W,28V,1.20- |
19,622 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 58V | 1.4GHz | - | 6.6dB | 220W | - | 7A | 200°C | - | - | Chassis Mount | - |
|
MRF10150TRANS NPN 150W 1025MHZ-1050MHZ |
16,106 |
|
Datasheet |
- | 376B-02 | Tray | Active | NPN | 65V | - | - | 10dB | 150W | 20 @ 5A, 5V | 14A | 200°C (TJ) | - | - | Chassis Mount | 376B-02, Style 1 |
|
|
DME800RF TRANS NPN 65V 1.15GHZ 55ST-1 |
17,668 |
|
Datasheet |
- | 55ST-1 | Bulk | Obsolete | NPN | 65V | 1.025GHz ~ 1.15GHz | - | 9dB ~ 10dB | 2500W | 20 @ 600mA, 5V | 50A | 200°C (TJ) | - | - | Chassis Mount | 55ST-1 |
|
PH3135-65MRF TRANS NPN 65V |
4,024 |
|
Datasheet |
- | - | Tray | Active | NPN | 65V | - | - | 8.23dB ~ 9.09dB | 65W | - | 7.7A | 200°C (TJ) | - | - | - | - |
|
MAPRST0912-50RF TRANS NPN 65V |
11,112 |
|
Datasheet |
- | - | Tray | Active | NPN | 65V | - | - | 10.16dB ~ 10.25dB | 50W | - | 5.3A | 200°C (TJ) | - | - | Chassis Mount | - |
|

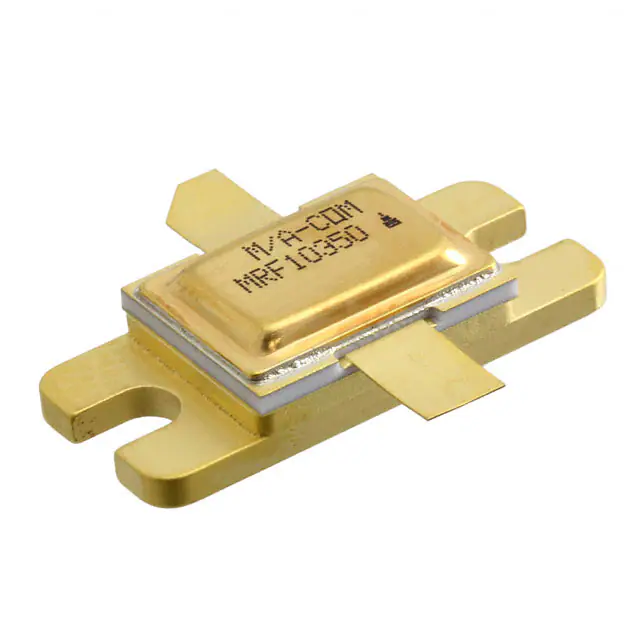

MRF10350RF TRANS NPN 65V 355E-01 |
7,492 |
|
Datasheet |
- | 355E-01 | Tray | Active | NPN | 65V | - | - | 9dB | 350W | 20 @ 5A, 5V | 31A | 200°C (TJ) | - | - | Chassis Mount | 355E-01, Style 1 |
|
|
TAN350RF TRANS NPN 65V 1.215GHZ 55ST |
16,128 |
|
Datasheet |
- | 55ST | Bulk | Obsolete | NPN | 65V | 960MHz ~ 1.215GHz | - | 7dB ~ 7.5dB | 1450W | 10 @ 1A, 5V | 40A | 230°C (TJ) | - | - | Chassis Mount | 55ST |
