Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MZ0912B50YRF POWER BIPOLAR TRANSISTOR, 1-E |
312 |
|
Datasheet |
- | SOT-443A | Bulk | Active | NPN | 20V | 1.215GHz | - | 8dB | 150W | - | 3A | 200°C (TJ) | - | - | Chassis Mount | SOT443A |
|
MRF6V14300MSR5RF POWER FIELD-EFFECT TRANSISTOR |
9,480 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BLS3135-65IMICROWAVE POWER TRANSISTOR (AMPL |
480 |
|
Datasheet |
- | SOT-422A | Bulk | Active | NPN | 75V | 3.5GHz | - | 7dB | 200W | 40 @ 2A, 5V | 8A | 200°C (TJ) | - | - | Chassis Mount | SOT422A |
|
SS9018FBURF SMALL SIGNAL BIPOLAR TRANSIST |
120,000 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | NPN | 15V | 1.1GHz | - | - | 400mW | 54 @ 1mA, 5V | 50mA | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
KSC1393YTARF SMALL SIGNAL BIPOLAR TRANSIST |
100,000 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Bulk | Obsolete | NPN | 30V | 700MHz | 2dB @ 200MHz | 24dB | 250mW | 90 @ 2mA, 10V | 20mA | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
,TO-226_straightlead.jpg)
|
KSP10BURF SMALL SIGNAL BIPOLAR TRANSIST |
120,140 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | NPN | 25V | 650MHz | - | - | 350mW | 60 @ 4mA, 10V | - | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
KSP10TARF SMALL SIGNAL BIPOLAR TRANSIST |
59,848 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Bulk | Active | NPN | 25V | 650MHz | - | - | 350mW | 60 @ 4mA, 10V | - | 150°C (TJ) | - | - | Through Hole | TO-92-3 |
|
|
2SD438F-MP-AE2SD438 - BIPOLAR NPN TRANSISTOR, |
252,000 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFU520XRRBFU520XR - NPN Wideband Silicon |
86,000 |
|
Datasheet |
- | SOT-143R | Bulk | Active | NPN | 12V | 10GHz | 0.65dB @ 900MHz | 17.5dB | 450mW | 60 @ 5mA, 8V | 30mA | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-143R |
|
2SC4853A-4-TL-E2SC4853 - RF SMALL SIGNAL BIPOLA |
18,000 |
|
Datasheet |
- | SC-70, SOT-323 | Bulk | Active | NPN | 6V | 5GHz | 2.6dB ~ 1.9dB @ 1GHz | 7dB ~ 10.5dB @ 1GHz | 90mW | 90 @ 1mA, 1V | 15mA | 150°C (TJ) | - | - | Surface Mount | 3-MCP |
|

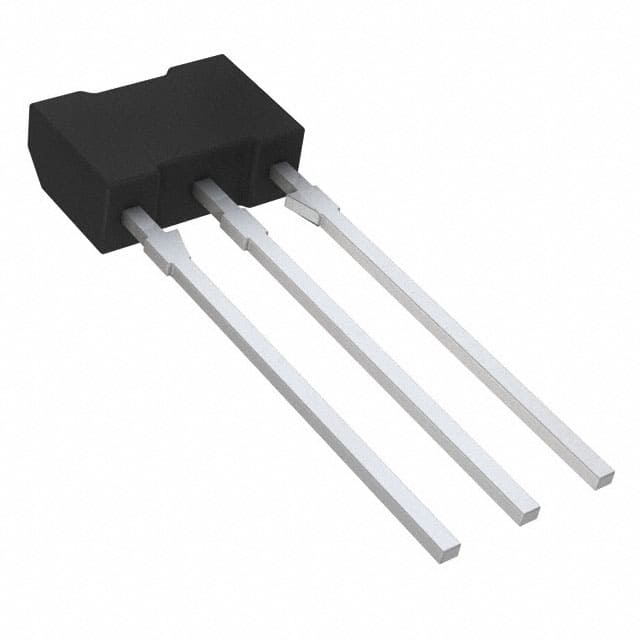

2SA1702S-AN2SA1702S - SMALL SIGNAL BIPOLAR |
5,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFU768F,115BFU768F - NPN WIDEBAND SILICON G |
5,246,300 |
|
Datasheet |
- | SOT-343F | Bulk | Obsolete | NPN | 2.8V | 110GHz | 1.1dB ~ 1.2dB @ 5GHz ~ 5.9GHz | 13.1dB | 220mW | 155 @ 10mA, 2V | 70mA | 150°C (TJ) | - | - | Surface Mount | 4-DFP |
|
|
2SC5231C9-TL-E2SC5231 - RF SMALL SIGNAL BIPOLA |
300,000 |
|
Datasheet |
- | SC-75, SOT-416 | Bulk | Obsolete | NPN | 10V | 7GHz | 1dB @ 1GHz | 12dB | 100mW | 135 @ 20mA, 5V | 70mA | 150°C (TJ) | - | - | Surface Mount | 3-SMCP |
|
2SC2620QCTR-ERF SMALL SIGNAL BIPOLAR TRANSIST |
105,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2SC2620QBTR-ERF SMALL SIGNAL BIPOLAR TRANSIST |
8,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFU550WFBFU550W - NPN WIDEBAND SILICON R |
1,435,086 |
|
Datasheet |
- | SC-70, SOT-323 | Bulk | Obsolete | NPN | 12V | 11GHz | 1.3dB @ 1.8GHz | 18dB | 450mW | 60 @ 15mA, 8V | 50mA | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SC-70 |
|
|
2SC5374A-TL-E2SC5374 - 10V, 100MA, FT=5.2 GHZ |
90,000 |
|
Datasheet |
- | SC-75, SOT-416 | Bulk | Active | NPN | 10V | 5.2GHz | 1.4dB @ 1GHz | 10.5dB @ 1GHz | 100mW | 110 @ 7mA, 3V | 100mA | 150°C (TJ) | - | - | Surface Mount | SMCP |
|
BFP450RF SMALL SIGNAL BIPOLAR TRANSIST |
237,742 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ON5088RF SMALL SIGNAL BIPOLAR TRANSIST |
126,000 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFU610F,115TRANSISTOR NPN SOT343F |
6,000 |
|
Datasheet |
- | SOT-343F | Bulk | Active | NPN | 5.5V | 15GHz | 0.9dB ~ 1.7dB @ 1.5GHz ~ 5.8GHz | 17dB | 136mW | 90 @ 1mA, 2V | 10mA | 150°C (TJ) | - | - | Surface Mount | 4-DFP |
