Audio Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Gender | Signal Lines | Industry Recognized Mating Diameter | Actual Diameter | Number of Positions/Contacts | Internal Switch(s) | Mounting Type | Termination | Shielding | Features | Insulation Color | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP-3540BAUDIO PLUG, 3.5 MM, STRAIGHT, 4 |
5,286 |
|
Datasheet |
- | Bag | Active | Phone Plug | Male | Stereo (4 Conductor, TRRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.126" (3.20mm) | 4 Conductors, 4 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | Cover, Strain Relief | Black | -25°C ~ 70°C | - | - |
|
FCR1295GS9 BBB GOLD STEREO JACK 6MMPCB |
7,204 |
|
Datasheet |
S9 | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.146" (3.70mm) | 3 Conductors, 6 Contacts | Three Switches | Through Hole, Right Angle | Solder | Unshielded | - | - | -10°C ~ 70°C | - | - |
|
ACJS-MIV-5CONN JACK STEREO 1/4" |
4,504 |
|
Datasheet |
MSeries | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | - | 3 Conductors, 5 Contacts | Two Switches | Panel Mount, Through Hole | Solder Eyelet(s) | Unshielded | Mounting Hardware | - | -25°C ~ 70°C | - | - |
|
FM1044JACK PLUG P3C STEREO SCREENED |
3,866 |
|
Datasheet |
- | Bag | Active | Phone Plug | Male | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | - | - | - | Free Hanging (In-Line) | Solder | Unshielded | - | - | - | - | - |
|
ACPS-GNCONN PLUG STEREO 1/4" |
7,824 |
|
Datasheet |
MSeries | Bulk | Active | Phone Plug | Male | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | 0.249" (6.32mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Eyelet(s) | Shielded | - | - | -25°C ~ 75°C | - | - |
|
MP-101MICROPHONE PLUG - 2 CONDUCTOR |
9,106 |
|
Datasheet |
- | Bulk | Active | Microphone Plug | Male | Mono | - | - | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | IDC | Unshielded | - | - | - | - | - |
|

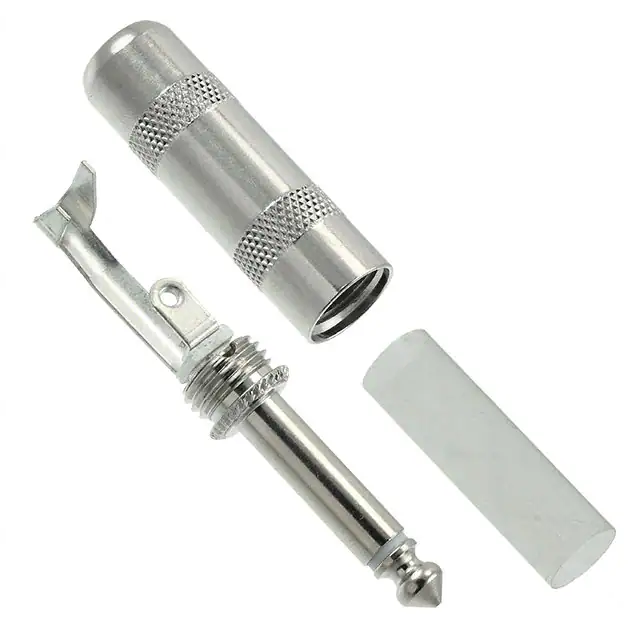

285LCONN PLUG MONO 6.35MM 2COND |
5,882 |
|
Datasheet |
LITTEL-PLUG® | Bulk | Active | Phone Plug | Male | Mono | 6.35mm (0.250", 1/4") - Headphone | 0.250" (6.35mm) | 2 Conductors, 2 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Shielded | - | - | - | - | - |
|
236CONN PLUG STEREO 6.35MM RA 3COND |
5,100 |
|
Datasheet |
236 | Bulk | Active | Phone Plug | Male | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | 0.250" (6.35mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Free Hanging (In-Line), Right Angle | Solder Eyelet(s) | Shielded | - | - | -20°C ~ 65°C | - | - |
|
13CONN JACK MONO 6.35MM PNL MNT |
2,254 |
|
Datasheet |
LITTEL-JAX® | Bulk | Active | Phone Jack | Female | Mono | 6.35mm (0.250", 1/4") - Headphone | 0.250" (6.35mm) | 2 Conductors, 4 Contacts | Single Switch | Panel Mount, Through Hole | Solder Eyelet(s) | Unshielded | Mounting Hardware, Thread Lock | - | - | - | - |
|
S267CONN PLUG STEREO 5.23MM 3COND |
7,188 |
|
Datasheet |
LITTEL-PLUG® | Bulk | Active | Phone Plug | Male | Stereo (3 Conductor, TRS) | 5.23mm (0.206") | 0.206" (5.23mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder Eyelet(s) | Unshielded | - | - | - | - | - |
|
35LJNSCONN JACK STEREO 3.5MM |
4,420 |
|
Datasheet |
35LJN | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.141" (3.57mm) | 3 Conductors, 3 Contacts | - | Free Hanging (In-Line) | Solder Eyelet(s) | Unshielded | - | - | - | - | - |
|
35HDBAUCONN PLUG STEREO 3.5MM 3COND |
2,890 |
|
Datasheet |
35HD | Bulk | Active | Phone Plug | Male | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.138" (3.50mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | 0°C ~ 66°C | - | - |
|
TP-120-5TELEPHONE PLUG INLINE 4 CONDUCTO |
5,068 |
|
Datasheet |
- | Bulk | Active | Phone Plug | Male | Stereo (4 Conductor, TRRS) | - | 0.281" (7.14mm) | 4 Conductors, 4 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Solder | Unshielded | - | - | - | - | - |
|
155CONN JACK STEREO 6.35MM PNL MNT |
7,820 |
|
Datasheet |
E | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 6.35mm (0.250", 1/4") - Headphone | 0.253" (6.43mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Panel Mount | Solder Eyelet(s) | Unshielded | Mounting Hardware, Thread Lock | - | - | - | - |
|
EH35MMSSCCONN JACK STEREO 3.5MM PNL MNT |
7,616 |
|
Datasheet |
EH | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Panel Mount | Solder Cup | Unshielded | - | - | -10°C ~ 60°C | - | - |
|

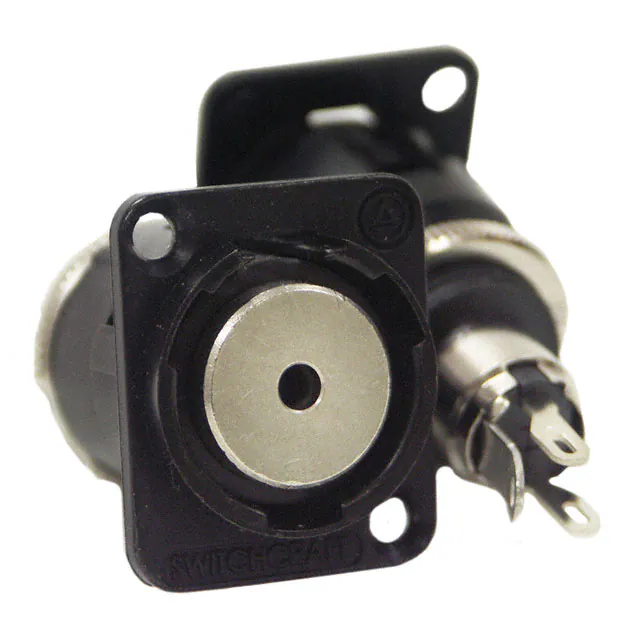

EH35MMSSCBCONN JACK STEREO 3.5MM PNL MNT |
6,962 |
|
Datasheet |
EH | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 0.142" (3.60mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Panel Mount | Solder Cup | Unshielded | - | - | -10°C ~ 60°C | - | - |
|
S830CONN JACK STEREO 5.23MM |
200 |
|
Datasheet |
Extension Jax® | Bulk | Active | Phone Jack | Female | Stereo (3 Conductor, TRS) | 5.23mm (0.206") | 0.210" (5.33mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Screw | Unshielded | - | - | - | - | - |
|
TT253NCONN PLUG STEREO 4.39MM 3COND |
6,210 |
|
Datasheet |
TT-Plug® | Bulk | Active | Phone Plug | Male | Stereo (3 Conductor, TRS) | 4.39mm (0.173") | 0.173" (4.39mm) | 3 Conductors, 3 Contacts | Does Not Contain Switch | Free Hanging (In-Line) | Screw | Unshielded | Internal Interlock | - | - | - | - |
|
TJT-120-9TELEPHONE JACK PANEL MOUNT THREA |
5,088 |
|
Datasheet |
- | Bulk | Active | Phone Jack | Female | Stereo (4 Conductor, TRRS) | - | - | 4 Conductors, 4 Contacts | Does Not Contain Switch | Panel Mount | Solder Eyelet(s) | Unshielded | Mounting Hardware | - | - | - | - |
|
TJT-102TELEPONE JACK PANEL MOUNT THREAD |
9,310 |
|
Datasheet |
- | Bulk | Active | Phone Jack | Female | Stereo (4 Conductor, TRRS) | - | 0.285" (7.24mm) | 4 Conductors, 4 Contacts | Does Not Contain Switch | Panel Mount | Solder Eyelet(s) | Unshielded | - | - | - | Military | MIL-C-9177 |
