Balun
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

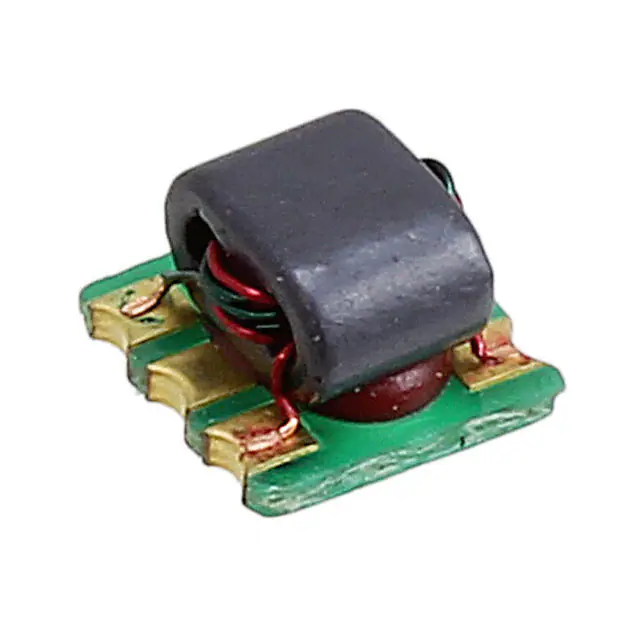

MABA-009852-CF1A40BALUN 5MHZ-120MHZ 75/75 5SMD |
246 |
|
Datasheet |
- | 5-SMD, No Lead | Tape & Reel (TR) | Active | 5MHz ~ 120MHz | 75 / 75Ohm | - | 0.4dB | 19dB | Surface Mount |
|
CX2049LANLBALUN 250KHZ-500MHZ 5SMD |
2,042 |
|
Datasheet |
- | 5-SMD | Tray | Active | 250kHz ~ 500MHz | - | - | 3.0dB | 8dB | Surface Mount |
|

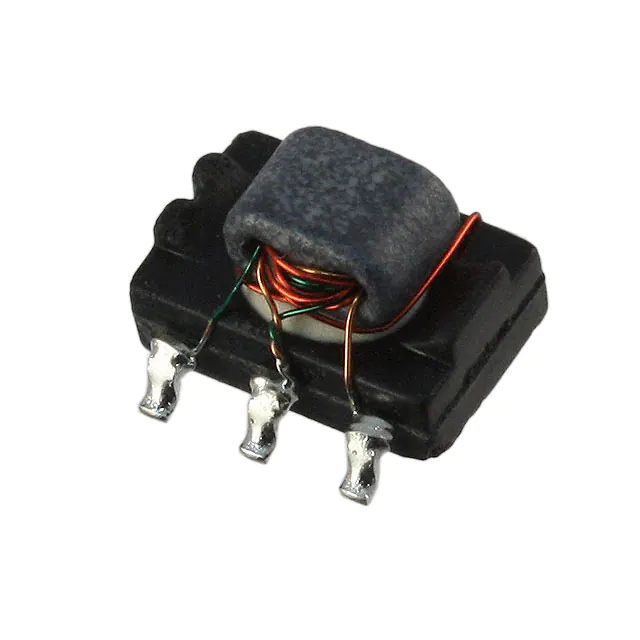

CX2147NLBALUN 5MHZ-200MHZ 1:1 6SMD |
24,228 |
|
Datasheet |
- | 6-SMD | Tray | Active | 5MHz ~ 200MHz | 1:1 | - | 0.3dB | - | Surface Mount |
|
ETC1-1T-5TRBALUN 1:1 6SMD MODULE 5 LEADS |
3,370 |
|
Datasheet |
- | 6-SMD Module, 5 Leads | Tape & Reel (TR) | Active | - | 1:1 | 5° | 2.0dB | - | Surface Mount |
|
TC1-182T-75X+CORE & WIRE XFMR, 5 - 1800 MHZ |
3,960 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 5MHz ~ 1.8GHz | 75 / 75Ohm | 5° | 2.5dB | 20dB | Surface Mount |
|
CX2049LNLTBALUN 250KHZ-500MHZ 5SMD MODULE |
4,744 |
|
Datasheet |
- | 5-SMD Module | Tape & Reel (TR) | Active | 250kHz ~ 500MHz | - | - | 1.2dB | - | Surface Mount |
|
ETC1.5-4TRTRANSFORMER ON TAPE & REEL,5:1,5 |
10,916 |
|
Datasheet |
- | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 5MHz ~ 1GHz | 1.5:1 | - | 1.09dB | 20dB | Surface Mount |
|
|
CX2043LNLBALUN 1MHZ-1GHZ 1.5:1 5SMD MODUL |
1,688 |
|
Datasheet |
- | 5-SMD Module | Tray | Active | 1MHz ~ 1GHz | 1.5:1 | - | 0.2dB | - | Surface Mount |
|
TCW2-7200+1:2 LTCC XFMR, 5500 - 7200 MHZ |
7,630 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 5.5GHz ~ 7.2GHz | 50 / 100Ohm | 8° | 1.5dB | 9.5dB | Surface Mount |
|
TCW2-282+1:2 LTCC TRANSFORMER, 700 - 2800 |
5,632 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 700MHz ~ 2.8GHz | 1:2 | 13° | 2.0dB | 10.83dB | Surface Mount |
|
TCO2-532+1:2 LTCC TRANSFORMER, 4600 - 590 |
5,356 |
|
Datasheet |
- | 4-SMD, No Lead | Tape & Reel (TR) | Active | 4.6GHz ~ 5.9GHz | 1:2 | 10° | 1.2dB | 9dB | Surface Mount |
|
TRS278-122-75+CORE & WIRE XFMRR, 40 - 1250 MHZ |
1,996 |
|
Datasheet |
- | 6-SMD Module | Tape & Reel (TR) | Active | 40MHz ~ 1.25GHz | 75 / 75Ohm | 7° | 1.5dB | 30dB | Surface Mount |
|
TCW4-262+RF XFMR / SURF MT / ROHS |
8,000 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.3GHz ~ 2.6GHz | 1:4 | 13° | 1.7dB | 9.5dB | Surface Mount |
|
|
TCW4-582+RF XFMR / SURF MT / ROHS |
5,940 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 5GHz ~ 5.8GHz | 1:4 | 13° | 1.7dB | 9.5dB | Surface Mount |
|
|
CX2147NLTBALUN 5MHZ-200MHZ 1:1 6SMD |
5,136 |
|
Datasheet |
- | 6-SMD Module, 5 Leads | Tape & Reel (TR) | Active | 5MHz ~ 200MHz | 1:1 | - | 0.3dB | - | Surface Mount |
|
MABA-011040BALUN 1MHZ-300MHZ 50/50 6SMD GW |
7,336 |
|
Datasheet |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 1MHz ~ 300MHz | 50 / 50Ohm | - | 0.9dB | 20dB | Surface Mount |
|
ADTL1-18-75+1:1 CORE & WIRE TRANSFORMER, 5 - |
1,522 |
|
Datasheet |
- | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 5MHz ~ 1.8GHz | 75 / 75Ohm | 4° | 2.0dB | 9.71dB | Surface Mount |
|
BBFCG2-362+LTCC BALUN BPF, 3250 - 3950 MHZ |
8,000 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | 3.25GHz ~ 3.95GHz | 1:2 | 13° | 3.0dB | 8.5dB | Surface Mount |
|
BBFCG2-532+LTCC BALUN BPF, 5000-5700 MHZ |
8,000 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | 5GHz ~ 5.7GHz | 1:2 | 5° | 3.0dB | 9.5dB | Surface Mount |
|
|
BBFCG2-3275+LTCC BALUN BPF, 2875-3675 MHZ |
7,376 |
|
Datasheet |
- | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Active | 2.875GHz ~ 3.675GHz | 1:2 | 13° | 3.0dB | 8.5dB | Surface Mount |
