| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM322-047-211-5500RECTANGULAR PCB CONNECTORS (0.07 |
8,574 |
|
Datasheet |
R | Bag | Active | - | Receptacle, Female Sockets | - | 47 | All | 0.075" (1.91mm) | 3 | - | Through Hole | Solder | - | Mating Guide, Mounting Flange | Gold | - | - |
|
RM332-047-111-5900RECTANGULAR PCB CONNECTORS (0.07 |
8,418 |
|
Datasheet |
R | Bag | Active | - | Plug, Male Pins | - | 47 | All | 0.075" (1.91mm) | 3 | - | Free Hanging (In-Line) | Solder Cup | - | Mating Guide | Gold | - | - |
|
VRF-04-10-50-03-GHIGH SPEED / HIGH DENSITY CONNEC |
7,170 |
|
Datasheet |
Versi | Tray | Active | - | Receptacle, Female Sockets | High Speed | 40 | All | 0.050" (1.27mm) | 4 | 10 | Through Hole | Solder | - | Jackscrew Socket | Gold | 50.0µin (1.27µm) | Gray |
|
532903-5CONN RCPT HD 160POS PCB |
3,026 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 160 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Brown |
|
RM342-011-581-5900RECTANGULAR PCB CONNECTORS (0.07 |
9,830 |
|
Datasheet |
R | Bag | Active | - | Receptacle, Female Sockets | - | 11 | All | 0.075" (1.91mm) | 3 | - | Free Hanging (In-Line) | Crimp | - | Mating Guide | Gold | - | - |
|
HDB-M4-060M226XMOTHER BOARD 60POS |
8,240 |
|
Datasheet |
HBD | Bag | Active | Backplane, Motherboard | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 60 | All | 0.070" (1.78mm) | 6 | 10 | Through Hole | Solder | - | Jackscrew | Tin-Lead | 100.0µin (2.54µm) | Black |
|
532434-7CONN RCPT HD 200POS PCB |
5,218 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 200 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
RM322-059-211-2900RECTANGULAR PCB CONNECTORS (0.07 |
9,306 |
|
Datasheet |
R | Bag | Active | - | Receptacle, Female Sockets | - | 59 | All | 0.075" (1.91mm) | 3 | - | Through Hole | Solder | - | Mating Guide, Mounting Flange | Gold | - | - |
|
RM332-071-111-5900RECTANGULAR PCB CONNECTORS (0.07 |
5,140 |
|
Datasheet |
R | Bag | Active | - | Plug, Male Pins | - | 71 | All | 0.075" (1.91mm) | 3 | - | Free Hanging (In-Line) | Solder Cup | - | Mating Guide | Gold | - | - |
|
|
HDB-M4-060M246XMOTHER BOARD 60POS |
5,962 |
|
Datasheet |
HBD | Bag | Active | Backplane, Motherboard | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 60 | All | 0.070" (1.78mm) | 6 | 10 | Through Hole | Solder | - | Jackscrew | Tin-Lead | 100.0µin (2.54µm) | Black |
|
RM342-059-241-5900RECTANGULAR PCB CONNECTORS (0.07 |
6,068 |
|
- |
R | Bag | Active | - | Receptacle, Female Sockets | - | 59 | All | 0.075" (1.91mm) | 3 | - | Free Hanging (In-Line) | Solder Cup | - | Mating Guide | Gold | - | - |
|
RM222-080-211-5500RECTANGULAR PCB CONNECTORS (0.07 |
7,072 |
|
- |
R | Bag | Active | - | Receptacle, Female Sockets | - | 80 | All | 0.075" (1.91mm) | 2 | 40 | Through Hole | Solder | - | Mating Guide, Mounting Flange | Gold | - | - |
|
HDB-D4-080M036XDAUGHTER CARD 80POS |
4,724 |
|
Datasheet |
HBD | Bag | Active | Daughtercard | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 80 | All | 0.070" (1.78mm) | 8 | 10 | Through Hole, Right Angle | Solder | - | Jackscrew | Tin-Lead | 100.0µin (2.54µm) | Black |
|
|
HDB-M4-060M242XMOTHER BOARD 60POS |
9,450 |
|
Datasheet |
HBD | Bag | Active | Backplane, Motherboard | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 60 | All | 0.070" (1.78mm) | 6 | 10 | Through Hole | Solder | - | Jackscrew | Gold | 30.0µin (0.76µm) | Black |
|
|
HDB-M4-060M222XMOTHER BOARD 60POS |
5,946 |
|
- |
HBD | Bag | Active | Backplane, Motherboard | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 60 | All | 0.070" (1.78mm) | 6 | 10 | Through Hole | Solder | - | Jackscrew | Gold | 30.0µin (0.76µm) | Black |
|
SMPL50S0T0LB/AAD-SUB |
8,038 |
|
Datasheet |
SMPL | Tray | Active | - | Receptacle, Female Sockets | - | 50 | All | - | 4 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 15.0µin (0.38µm) | Gray |
|
HDB-D4-060M042XDAUGHTER CARD 60POS |
8,618 |
|
Datasheet |
HBD | Bag | Active | Daughtercard | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 60 | All | 0.070" (1.78mm) | 6 | 10 | Through Hole, Right Angle | Solder | - | Jackscrew | Gold | 30.0µin (0.76µm) | Black |
|
HDB-M4-080M232XMOTHER BOARD 80POS |
8,742 |
|
Datasheet |
HBD | Bag | Active | Backplane, Motherboard | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 80 | All | 0.070" (1.78mm) | 8 | 10 | Through Hole | Solder | - | Jackscrew | Gold | 30.0µin (0.76µm) | Black |
|

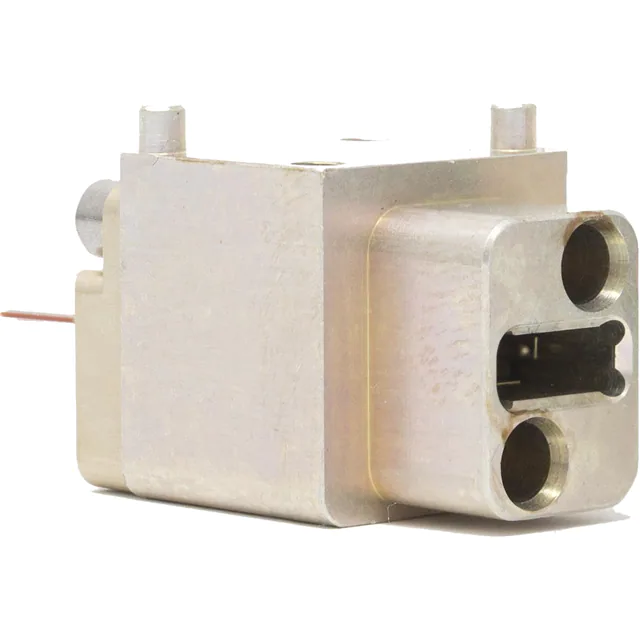

10-504637-008VITA 66.4 FIBER MODULE 1MT- SPEC |
9,838 |
|
Datasheet |
- | Bag | Active | Backplane | Module | VITA 66.4 | 4 | All | - | 3 | 2 | Free Hanging (In-Line) | Wire Wrap | - | Board Guide | - | - | - |
|
VRRAM-04-10-50-03-GHIGH SPEED / HIGH DENSITY CONNEC |
3,120 |
|
Datasheet |
Versi | Tray | Active | - | Header, Male Pins | High Speed | 40 | All | 0.050" (1.27mm) | 4 | 10 | Through Hole, Right Angle | Solder | - | Board Guide | Gold | 50.0µin (1.27µm) | Black |
