| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
532434-5CONN RCPT HD 160POS PCB |
5,976 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 160 | All | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
RVPX-PE20815M2VITA 46 CONNECTORS |
6,284 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 56 | All | 0.071" (1.80mm) | 7 | 8 | Through Hole, Right Angle | Press-Fit | - | Board Guide | Gold | 50.0µin (1.27µm) | - |
|
533294-1CONN HEADER HD 240POS PCB |
6,518 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Header, Male Pins | High Density (HDC, HDI, HPC) | 240 | All | 0.100" (2.54mm) | 3 | - | Through Hole | Press-Fit | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
2212082-1CONN RCPT DRAWER 40POS PNL MNT |
3,058 |
|
Datasheet |
- | Bulk | Active | - | Receptacle, Female Sockets | Drawer | 40 | - | - | - | - | Panel Mount | Crimp | 36 Signal, 4 Power | Guide Pin | - | - | Black |
|
WTA40PCJTRECTANGULAR PCB CONNECTORS (0.10 |
6,394 |
|
Datasheet |
W | Bag | Active | - | Plug, Male Pins | - | 40 | All | 0.100" (2.54mm) | 2 | 20 | Free Hanging (In-Line) | Solder Cup | - | Mating Guide | Gold | - | - |
|

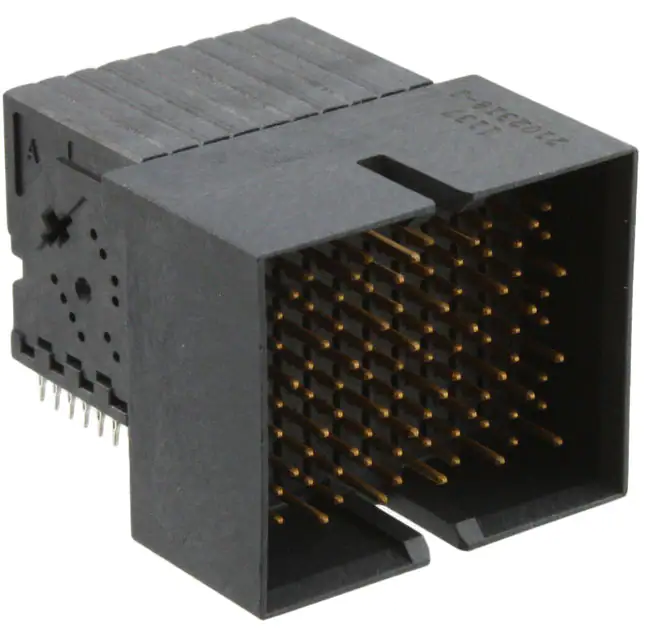

2102318-1CONN HEADER 90POS EDGE MNT |
4,730 |
|
Datasheet |
Fortis Zd | Bulk | Active | Daughtercard | Header, Male Pins | - | 90 | All | - | 9 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | - | Shielded | Gold | 50.0µin (1.27µm) | Black |
|
2286123-1MULTIGIG RT2-R,DC,SPACE VPX-MODU |
5,348 |
|
Datasheet |
- | Bulk | Active | Daughtercard | Plug, Male Blades | MULTIGIG, Half, Left End | 56 | All | 0.071" (1.80mm) | 8 | 7 | Board Edge, Through Hole, Right Angle | Press-Fit | - | Guide Pin | Gold | 50.0µin (1.27µm) | Black |
|

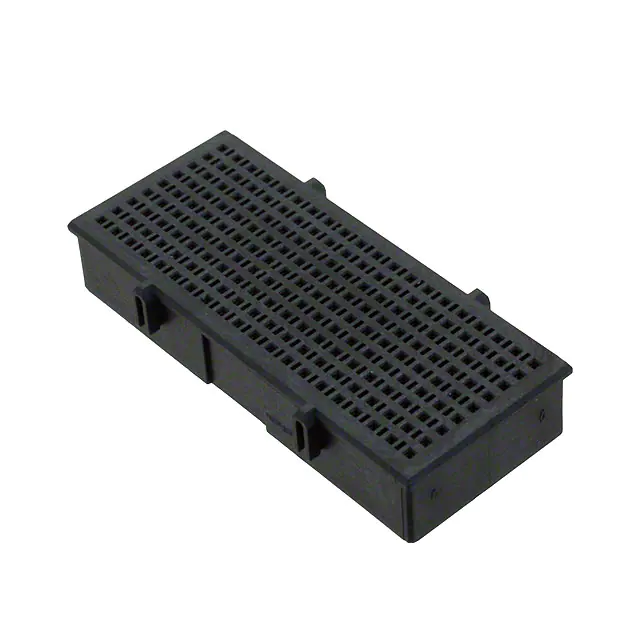

2102161-1CONN RCPT 180POS PCB |
328 |
|
Datasheet |
Fortis Zd | Tube | Active | Backplane, Motherboard | Receptacle, Female Sockets | - | 180 | All | - | 9 | 20 | Through Hole | Press-Fit | 60 Differential Pairs, 60 Ground | - | Gold | 50.0µin (1.27µm) | Black |
|
532431-8CONN RCPT HD 165POS PCB |
5,146 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 165 | All | 0.100" (2.54mm) | 3 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Natural |
|
RVPX-P16DC2VITA 46 CONNECTORS |
8,556 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 112 | All | 0.071" (1.80mm) | 7 | 16 | Through Hole, Right Angle | Solder | - | Board Guide | Gold | 30.0µin (0.76µm) | - |
|

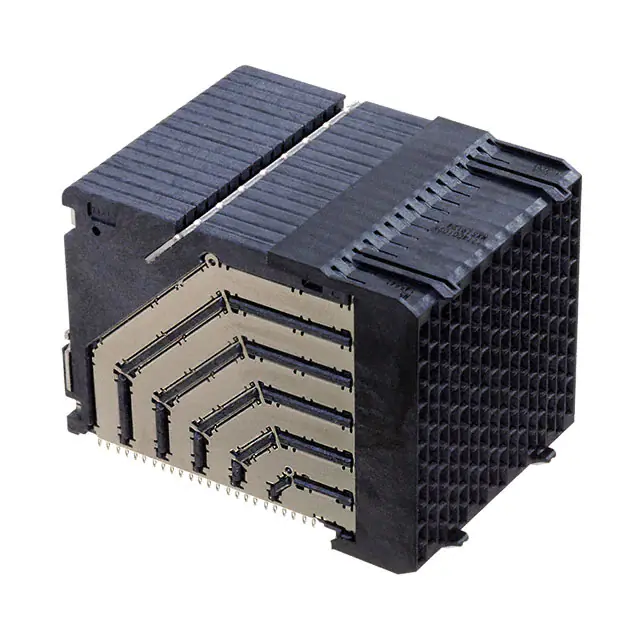

1714001026CONN RCPT IMPEL 192POS PCB |
8,888 |
|
Datasheet |
Impel 171400 | Tray | Active | Daughtercard | Receptacle, Female Sockets | Impel™ | 192 | All | 0.075" (1.90mm) | 12 | 16 | Through Hole, Right Angle | Press-Fit | 96 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
RVPX-PE16DC1VITA 46 EVOLUTION 1&2 |
9,568 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 112 | All | 0.071" (1.80mm) | 7 | 16 | Through Hole, Right Angle | Press-Fit | - | Board Guide | Gold | 30.0µin (0.76µm) | - |
|
RVPX-PE16DM1DAUGHTERCARD, EVO 1, 16 POSITION |
7,716 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 112 | All | 0.071" (1.80mm) | 7 | 16 | Through Hole, Right Angle | Press-Fit | - | Board Guide | Gold | 50.0µin (1.27µm) | - |
|
RVPX-PE16DC2VITA 46 EVOLUTION 1&2 |
7,612 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 112 | All | 0.071" (1.80mm) | 7 | 16 | Through Hole, Right Angle | Press-Fit | - | Board Guide | Gold | 30.0µin (0.76µm) | - |
|
RVPX-P16SC2VITA 46 CONNECTORS |
2,388 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 112 | All | 0.071" (1.80mm) | 7 | 16 | Through Hole, Right Angle | Solder | - | Board Guide | Gold | 30.0µin (0.76µm) | - |
|
RVPX-P16SC1VITA 46 CONNECTORS |
3,108 |
|
Datasheet |
R-VPX Evolution | Tray | Active | Daughtercard | Plug, Male Blades | VITA 46, Center | 112 | All | 0.071" (1.80mm) | 7 | 16 | Through Hole, Right Angle | Solder | - | Board Guide | Gold | 30.0µin (0.76µm) | - |
|

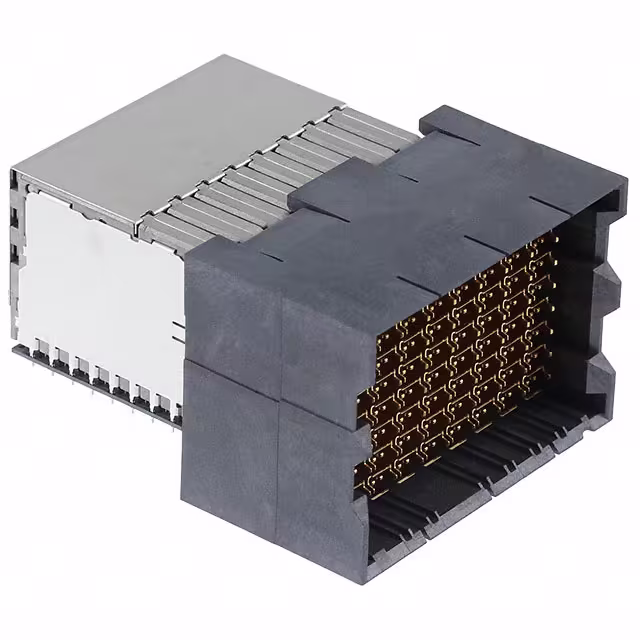

2287841-1CONN PLUG DUAL BEAM 128P EDGE MT |
7,912 |
|
Datasheet |
STRADA Whisper | Tube | Active | Backplane, Orthogonal | Plug, Male Pins and Blades | Dual Beam, Center | 128 | All | 0.154" (3.90mm) | 8 | 8 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | - | - | - |
|
2102847-1DC, 7ROW, CENTER, MULTIGIG RT 2R |
306 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

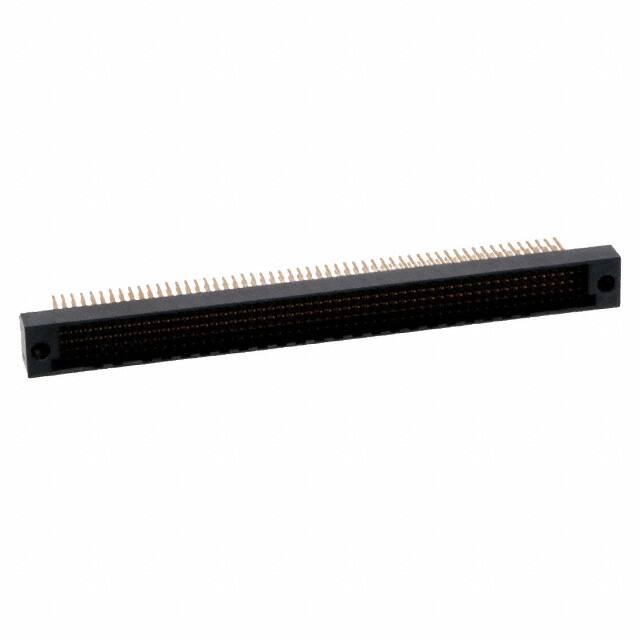

533270-8CONN HEADER HD 220POS PCB |
210 |
|
Datasheet |
HDI (High Density Interconnect) | Bulk | Active | - | Header, Male Pins | High Density (HDC, HDI, HPC) | 220 | All | 0.100" (2.54mm) | 4 | - | Through Hole | Press-Fit | - | Mating Guide | Gold | 30.0µin (0.76µm) | Black |
|
2187626-1CONN RCPT DUAL BEAM 72POS PCB |
6,540 |
|
Datasheet |
STRADA Whisper | Tray | Active | - | Receptacle, Female Sockets | Dual Beam, Center | 72 | All | 0.098" (2.50mm) | 12 | 6 | Through Hole | Press-Fit | - | - | Gold or Gold-Palladium | Flash | Black |
