| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10106264-7006001LFCONN RCPT BLADE PWR 31P EDGE MNT |
772 |
|
Datasheet |
PwrBlade+® | Tray | Active | - | Receptacle, Female Sockets and Blade Sockets | Blade Power | 31 | All | 0.100" (2.54mm) | 4 | - | Board Edge, Through Hole, Right Angle | Solder | 24 Signal, 7 Power | Guide Pin | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
0459844422CONN RCPT LPHPOWER 20POS PCB |
592 |
|
Datasheet |
EXTreme LPHPower 45984 | Tray | Active | - | Receptacle, Outer Shroud Contacts | LPHPower | 20 | All | - | 2 | - | Through Hole, Right Angle | Solder | 16 Signal, 4 Power | Board Guide, Guide Pin | Gold | 30.0µin (0.76µm) | Black |
|
10052838-101LFCONN RCPT HIGH SPEED |
1,682 |
|
Datasheet |
Airmax VS® | Tube | Active | Daughtercard | Header, Male Pins | - | 96 | All | 0.079" (2.00mm) | 12 | 8 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | - | Natural |
|
2336682-12MM HM FEMALE ASSY, COL8 |
1,742 |
|
Datasheet |
Z-PACK | Tube | Active | Backplane | Receptacle, Female Sockets | - | 40 | All | 0.079" (2.00mm) | 5 | 8 | Board Edge, Through Hole, Right Angle | Press-Fit | - | Mating Guide, Upper Shield | Gold | - | Gray |
|

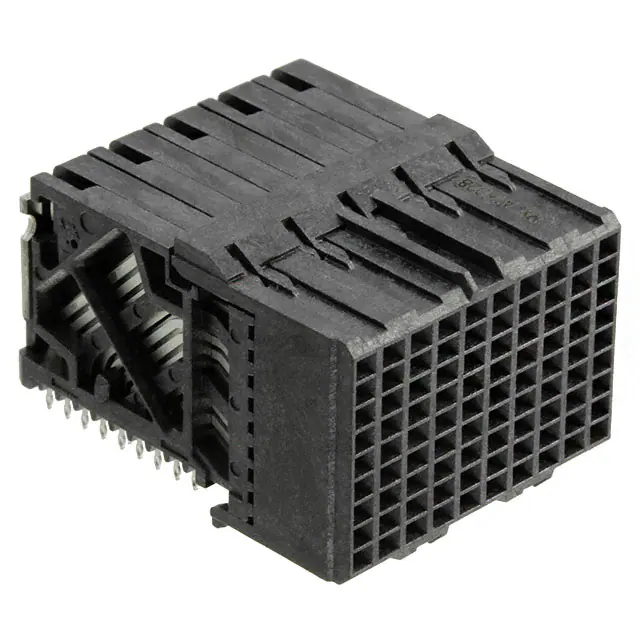

0761701020CONN RCPT IMPACT 90POS EDGE MNT |
5,998 |
|
Datasheet |
Impact 76170 | Tray | Active | - | Receptacle, Female Sockets | Impact | 90 | All | - | 9 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | 30 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
10052825-101LFCONN RCPT HIGH SPEED |
1,208 |
|
Datasheet |
Airmax VS® | Tube | Active | Daughtercard | Header, Male Pins | - | 72 | All | 0.079" (2.00mm) | 12 | 6 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | - | Natural |
|

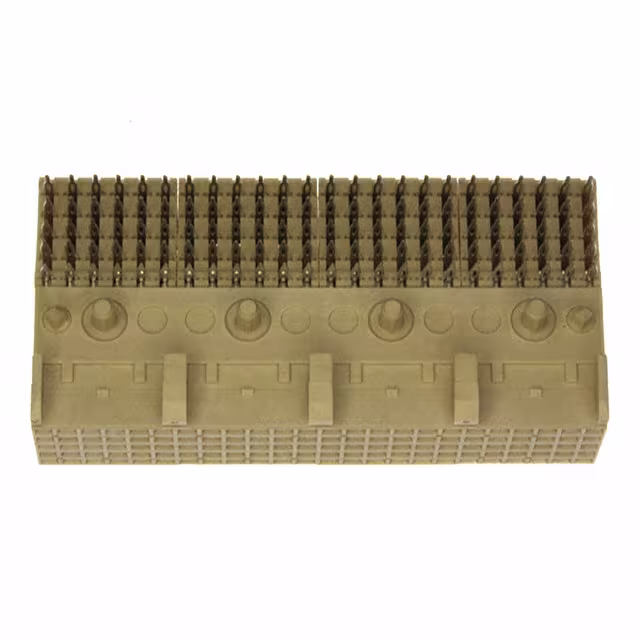

89094-102LFCONN RCPT 120POS EDGE MNT |
330 |
|
Datasheet |
Metral® B | Tube | Active | - | Receptacle, Female Sockets | - | 120 | All | 0.079" (2.00mm) | 5 | - | Board Edge, Through Hole, Right Angle | Press-Fit | - | Board Guide, Spacer | Gold | 30.0µin (0.76µm) | Natural |
|
10137002-101LFEXAMAX RAR 4X8 NG THKWALL GXT+ |
672 |
|
Datasheet |
ExaMAX® | Tube | Active | Daughtercard | Receptacle, Female Sockets | - | 112 | All | - | 14 | 8 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | - | - | Black |
|

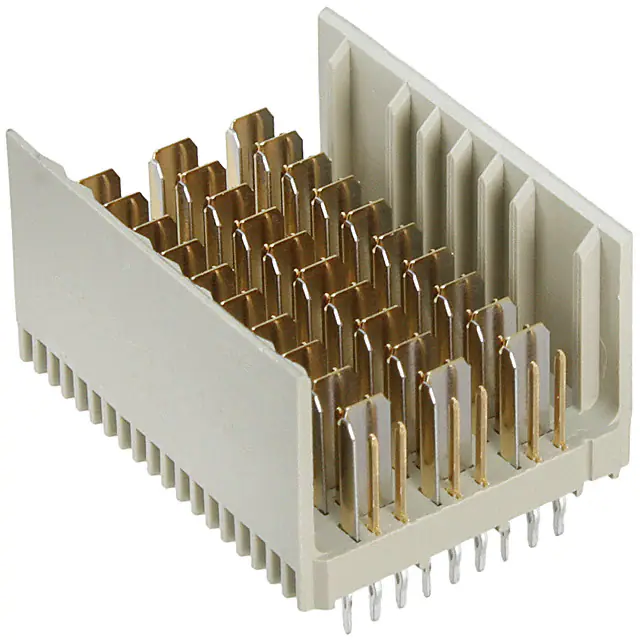

6469083-1CONN HEADER HIGH SPEED 60POS PCB |
324 |
|
Datasheet |
Z-PACK HM-Zd | Tube | Active | Backplane | Header, Male Pins and Blades | High Speed | 60 | All | 0.098" (2.50mm) | 6 | 10 | Through Hole | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | - |
|

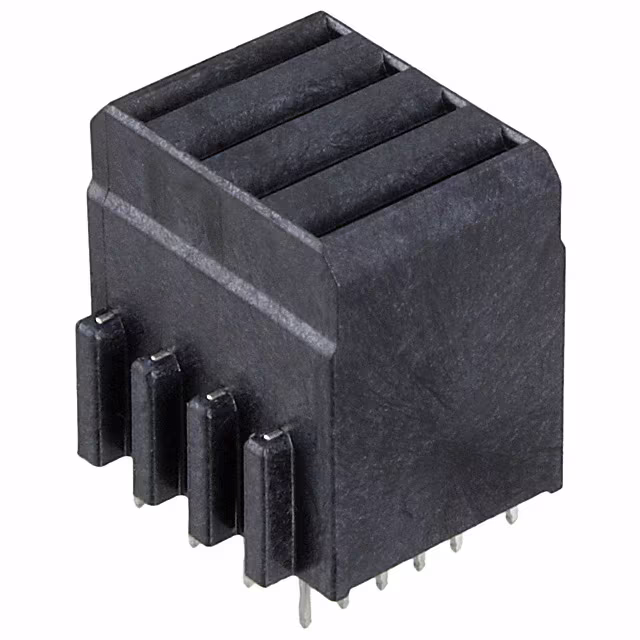

1410270-2CONN RCPT 4POS PCB |
204 |
|
Datasheet |
MULTIGIG RT | Tube | Active | Backplane | Receptacle, Female Blade Sockets | - | 4 | All | - | 1 | - | Through Hole | Press-Fit | 4 Power | - | Gold | 50.0µin (1.27µm) | Black |
|
6469002-1CONN HDR HIGH SPEED 120POS PCB |
438 |
|
Datasheet |
Z-PACK HM-Zd | Tube | Active | Backplane | Header, Male Pins and Blades | High Speed | 120 | All | 0.098" (2.50mm) | 8 | 10 | Through Hole | Press-Fit | 80 Single Signal, 40 Ground | - | Gold | 30.0µin (0.76µm) | - |
|

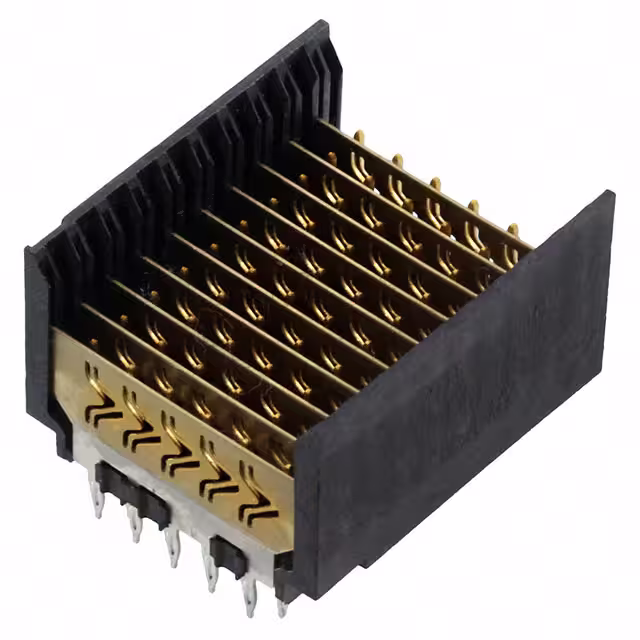

0740571002CONN HEADER VHDM 60POS PCB |
732 |
|
Datasheet |
VHDM 74057 | Tray | Active | - | Header, Male Pins | VHDM | 60 | All | 0.079" (2.00mm) | 6 | 10 | Through Hole | Press-Fit | - | Shielded | Gold | 30.0µin (0.76µm) | Black |
|
120958-1CONN HEADER BLADE PWR 8P EDGE MT |
2,800 |
|
Datasheet |
UPM (Universal Power Modules) | Tube | Active | Backplane | Header, Male Blades | Blade Power | 8 | All | - | 1 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 8 Power | Board Guide | Gold or Gold-Palladium | - | Gray |
|

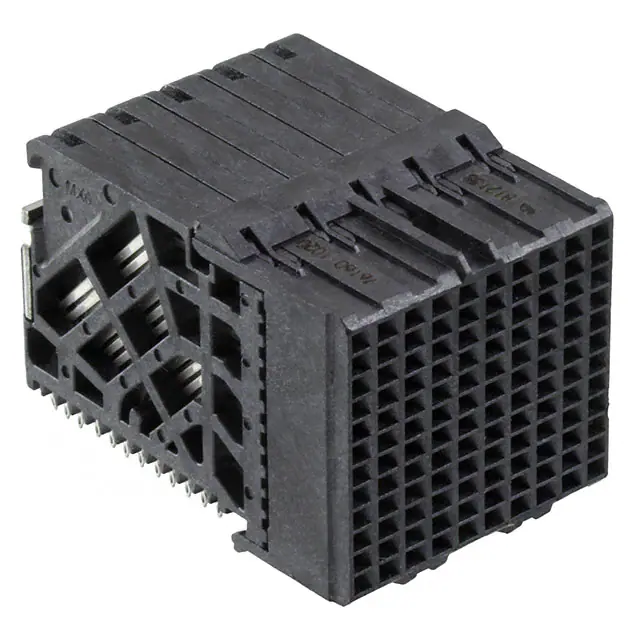

0761601020CONN RCPT IMPACT 120POS EDGE MNT |
532 |
|
Datasheet |
Impact 76160 | Tray | Active | - | Receptacle, Female Sockets | Impact | 120 | All | 0.053" (1.35mm) | 12 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | - | Board Guide | Gold | 30.0µin (0.76µm) | Black |
|
120958-2CONN HEADER BLADE PWR 8P EDGE MT |
1,662 |
|
Datasheet |
UPM (Universal Power Modules) | Tube | Active | Backplane | Header, Male Blades | Blade Power | 8 | All | - | 1 | - | Board Edge, Through Hole, Right Angle | Press-Fit | 8 Power | Board Guide | Gold or Gold-Palladium | - | Gray |
|
10052837-101LFCONN RCPT HIGH SPEED |
1,326 |
|
Datasheet |
Airmax VS® | Tube | Active | Daughtercard | Header, Male Pins | - | 96 | All | 0.079" (2.00mm) | 12 | 8 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | Gold | - | Natural |
|

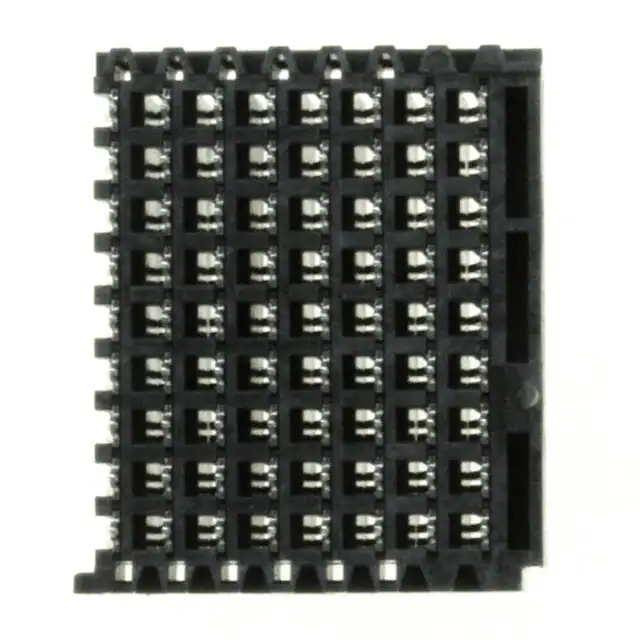

1410186-1CONN RCPT VITA 41/46 72POS PCB |
1,174 |
|
Datasheet |
MULTIGIG RT | Tube | Active | Backplane | Receptacle, Female Blade Sockets | VITA 41/46, Half, Left End | 72 | All | 0.071" (1.80mm) | 9 | 8 | Through Hole | Press-Fit | - | Board Guide | Gold | 50.0µin (1.27µm) | Black |
|

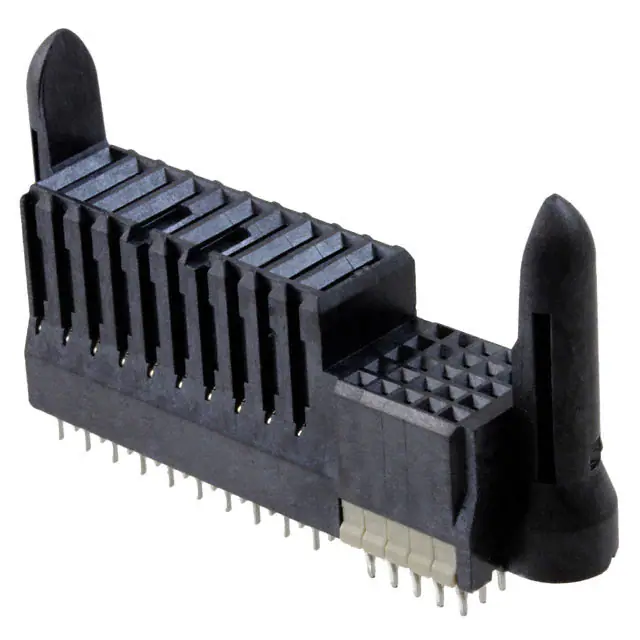

1892787-6CONN RCPT 35POS PCB |
2,716 |
|
Datasheet |
MINIPAK HDL | Bulk | Active | - | Receptacle, Female Sockets and Blade Sockets | - | 35 | All | - | - | - | Through Hole | Press-Fit, Solder | 25 Signal, 10 Power | Guide Pin | Gold or Gold-Palladium | 30.0µin (0.76µm) | Black |
|

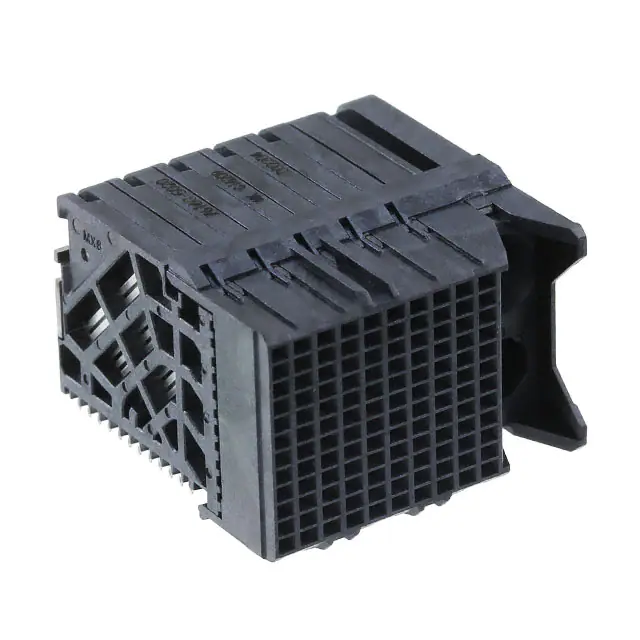

0761605020CONN RCPT IMPACT 120POS EDGE MNT |
422 |
|
Datasheet |
Impact 76160 | Tray | Active | - | Receptacle, Female Sockets | Impact, Guide Right | 120 | All | 0.053" (1.35mm) | 12 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | 40 Differential Pairs | Board Guide | Gold | 30.0µin (0.76µm) | Black |
|
6469074-1CONN HDR HIGH SPEED 120POS PCB |
1,034 |
|
Datasheet |
Z-PACK HM-Zd | Tube | Active | Backplane | Header, Male Pins and Blades | High Speed | 120 | All | 0.098" (2.50mm) | 8 | 10 | Through Hole | Press-Fit | 80 Single Signal, 40 Ground | - | Gold | 30.0µin (0.76µm) | - |
