| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
519-036-501-406519 SERIES RACK & PANEL CONNECTO |
8,392 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Panel Mount | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-520-406519 SERIES RACK & PANEL CONNECTO |
3,244 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Through Hole | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-500-406519 SERIES RACK & PANEL CONNECTO |
5,040 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Panel Mount | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
MMH23-020CONN RCPT RACK & PANEL 20P PCB |
5,472 |
|
Datasheet |
MM22 | Bulk | Active | - | Receptacle, Female Sockets | Rack and Panel | 20 | All | - | 3 | - | Through Hole | Solder | - | - | Gold | 30.0µin (0.76µm) | Green |
|
|
6651788-1CONNECTOR SOCKET RIGHT ANGLE SOL |
2,236 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
516-020-520-260516 SERIES RACK & PANEL CONNECTO |
8,770 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-020-500-250516 SERIES RACK & PANEL CONNECTO |
3,138 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-020-500-260516 SERIES RACK & PANEL CONNECTO |
3,382 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|

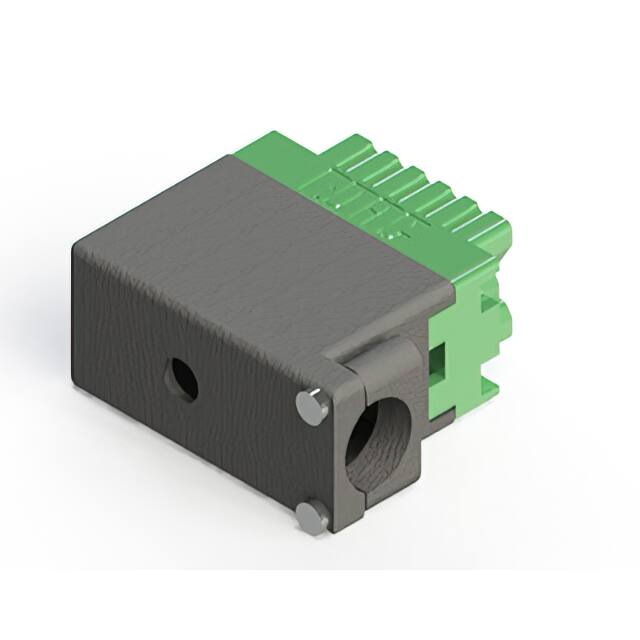

516-020-501-250516 SERIES RACK & PANEL CONNECTO |
5,498 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
10133137-001LFPWRMAX RA PLUG 4LP6HP24S |
7,344 |
|
Datasheet |
PWRMax® | Tray | Active | - | Plug | - | 34 | All | - | - | - | Through Hole, Right Angle | Solder | 24 Signal, 10 Power | Board Lock | - | - | Black |
|
|
120790-1CONN RCPT DUAL BEAM 100POS PCB |
2,226 |
|
Datasheet |
Z-PACK HS3 | Tube | Obsolete | Backplane | Receptacle, Female Sockets | Dual Beam, Center | 100 | All | 0.098" (2.50mm) | 10 | 10 | Through Hole, Right Angle | Press-Fit | - | - | Gold | 30.0µin (0.76µm) | - |
|
|
533288-7CONN HEADER HD 150POS PCB |
3,100 |
|
Datasheet |
HDI (High Density Interconnect) | Tube | Active | - | Header, Male Pins | High Density (HDC, HDI, HPC) | 150 | All | 0.100" (2.54mm) | 3 | - | Through Hole, Right Angle | Solder | - | Mating Guide | Gold | 30.0µin (0.76µm) | Black |
|
519-036-520-401519 SERIES RACK & PANEL CONNECTO |
6,822 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Panel Mount | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-501-401519 SERIES RACK & PANEL CONNECTO |
6,812 |
|
Datasheet |
519 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-038-501-401516 SERIES RACK & PANEL CONNECTO |
3,596 |
|
Datasheet |
516 | Bulk | Active | Backplane | Receptacle, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Mating Guide | Gold | 10.0µin (0.25µm) | Gray |
|

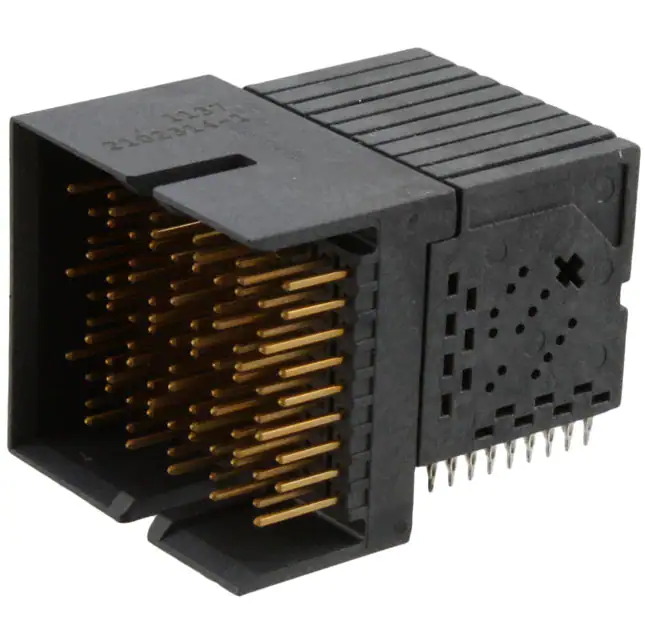

2102314-1CONN HEADER 90POS EDGE MNT |
3,544 |
|
Datasheet |
Fortis Zd | Tray | Discontinued at Digi-Key | Daughtercard | Header, Male Pins | - | 90 | All | - | 9 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | - | Shielded | Gold | 50.0µin (1.27µm) | Black |
|
519-036-542-302519 SERIES RACK & PANEL CONNECTO |
4,934 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Panel Mount | Wire Wrap | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-541-302519 SERIES RACK & PANEL CONNECTO |
4,040 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Panel Mount | Wire Wrap | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
|
2065668-1TIN MAN RECPT ASSY 3 PR16 COL RV |
3,396 |
|
- |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-223004-1CONN RCPT FUTUREBUS 330P EDGE MT |
2,862 |
|
Datasheet |
Z-PACK | Bulk | Active | - | Receptacle, Female Sockets | Futurebus | 330 | All | 0.079" (2.00mm) | 5 | - | Board Edge, Through Hole, Right Angle | Solder | - | Spacer | Gold | 30.0µin (0.76µm) | Natural |
