| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMA21-0341JUCONN PLUG RACK & PNL 34P PNL MT |
9,842 |
|
Datasheet |
MM22 | Bulk | Active | - | Plug, Male Pins | Rack and Panel | 34 | All | - | 4 | - | Panel Mount | Solder Cup | - | Screwlocks | Gold | 10.0µin (0.25µm) | Green |
|
|
HM1F59FDP461H6PMETRAL RCT RA PF 5X66 |
7,250 |
|
Datasheet |
Metral® | Tray | Active | - | Receptacle, Female Sockets | High Speed | - | - | - | - | - | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | - | - | - |
|
|
MMH21-0141K1CONN RCPT RACK & PNL 14P PNL MT |
4,730 |
|
Datasheet |
MM22 | Bulk | Active | - | Receptacle, Female Sockets | Rack and Panel | 14 | All | - | 3 | - | Panel Mount, Through Hole | Solder | - | Screwlocks | Gold | 10.0µin (0.25µm) | Green |
|
|
0765607607CONN HDR IMPACT 288POS EDGE MNT |
7,896 |
|
Datasheet |
Impact 76560 | Tray | Active | - | Header, Male Pins | Impact, Guide Left | 288 | All | 0.053" (1.35mm) | 18 | 16 | Board Edge, Through Hole, Right Angle | Press-Fit | 96 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
|
6450839-7CONN HEADER MULTI-BEAM 40POS PCB |
7,296 |
|
Datasheet |
MULTI-BEAM XLE | Tray | Active | - | Header, Male Pins and Blades | Multi-Beam | 40 | 38 | 0.100" (2.54mm) | 4 | - | Through Hole, Right Angle | Solder | 32 Signal, 8 Power | - | Gold | 30.0µin (0.76µm) | - |
|
|
MMB21-0341G1CONN PLUG RACK & PNL 34P PNL MT |
2,790 |
|
Datasheet |
MM22 | Bulk | Active | - | Plug, Male Pins | Rack and Panel | 34 | All | - | 4 | - | Panel Mount, Through Hole | Solder | - | Screwlocks | Gold | 10.0µin (0.25µm) | Green |
|

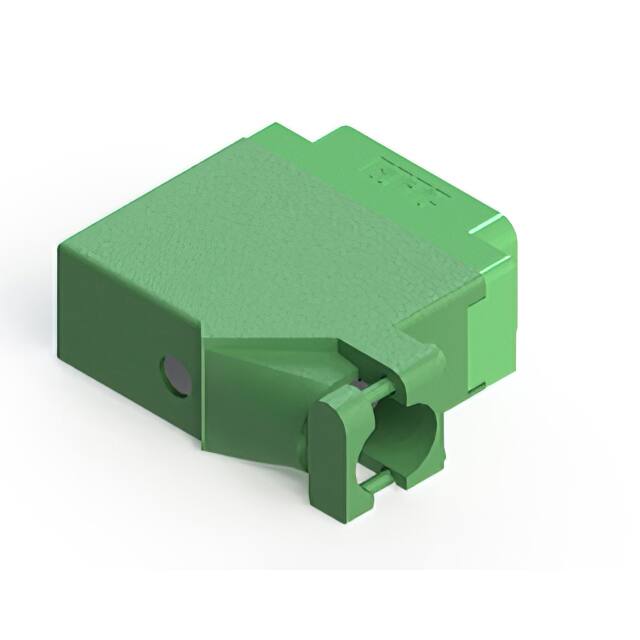

516-038-520-520516 SERIES RACK & PANEL CONNECTO |
6,066 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-038-520-320516 SERIES RACK & PANEL CONNECTO |
3,956 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-014-501-311519 SERIES RACK & PANEL CONNECTO |
7,582 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 14 | All | 0.150" (3.81mm) | 3 | 6 | Free Hanging (In-Line) | Solder | - | Jackscrew Socket, Mating Guide | Gold | 10.0µin (0.25µm) | Gray |
|
516-020-501-321516 SERIES RACK & PANEL CONNECTO |
8,044 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-014-500-321519 SERIES RACK & PANEL CONNECTO |
7,474 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 14 | All | 0.150" (3.81mm) | 3 | 6 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-020-501-511516 SERIES RACK & PANEL CONNECTO |
3,242 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-020-501-521516 SERIES RACK & PANEL CONNECTO |
7,786 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
519-036-501-310519 SERIES RACK & PANEL CONNECTO |
3,202 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-038-501-120516 SERIES RACK & PANEL CONNECTO |
6,660 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-038-501-310516 SERIES RACK & PANEL CONNECTO |
5,694 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
519-036-500-310519 SERIES RACK & PANEL CONNECTO |
6,486 |
|
Datasheet |
519 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 36 | All | 0.150" (3.81mm) | 5 | 9 | Free Hanging (In-Line) | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Gray |
|
516-038-501-510516 SERIES RACK & PANEL CONNECTO |
5,352 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-038-501-110516 SERIES RACK & PANEL CONNECTO |
5,302 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 38 | All | 0.150" (3.81mm) | 9 | 10 | Free Hanging (In-Line) | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
|
MMB25-0201G1CONN PLUG RACK & PNL 20P PNL MT |
8,454 |
|
Datasheet |
MM22 | Bulk | Active | - | Plug, Male Pins | Rack and Panel | 20 | All | - | 3 | - | Panel Mount, Through Hole | Solder | - | Screwlocks | Gold | 50.0µin (1.27µm) | Green |
