| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Connector Usage | Connector Type | Connector Style | Number of Positions | Number of Positions Loaded | Pitch | Number of Rows | Number of Columns | Mounting Type | Termination | Contact Layout, Typical | Features | Contact Finish | Contact Finish Thickness | Color | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0761458607CONN HEADER IMPACT 288POS PCB |
8,268 |
|
Datasheet |
Impact 76145 | Tray | Obsolete | - | Header, Male Pins | Impact, Guide Right | 288 | All | 0.053" (1.35mm) | 18 | 16 | Through Hole | Press-Fit | 96 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
|
0761458608CONN HEADER IMPACT 288POS PCB |
9,414 |
|
Datasheet |
Impact 76145 | Tray | Obsolete | - | Header, Male Pins | Impact, Guide Right | 288 | All | 0.053" (1.35mm) | 18 | 16 | Through Hole | Press-Fit | 96 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
|
0761603066CONN RCPT IMPACT |
4,270 |
|
Datasheet |
Impact 76160 | Tray | Active | - | Receptacle, Female Sockets | Impact, Guide Left | - | - | 0.053" (1.35mm) | - | - | - | - | - | Board Guide | - | - | - |
|

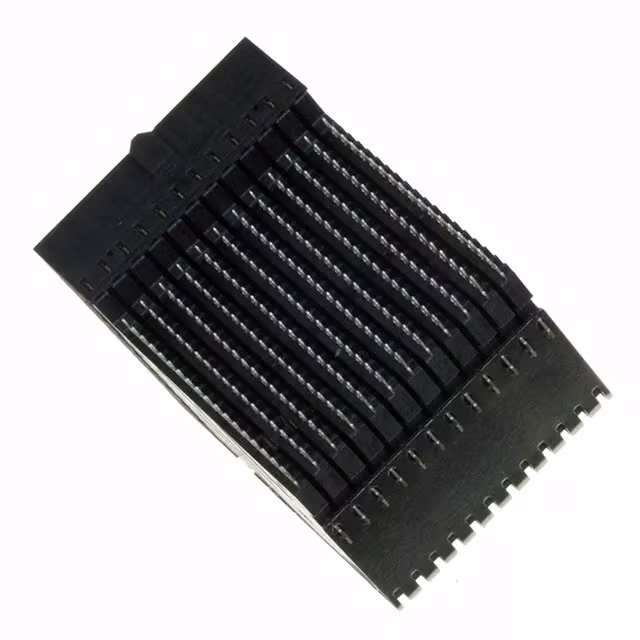

10076209-101LFCONN RCPT HD 216POS EDGE MNT |
8,000 |
|
Datasheet |
ZipLine™ | Bulk | Obsolete | Backplane, Orthogonal | Receptacle, Female Sockets | High Density (HDC, HDI, HPC) | 216 | All | 0.071" (1.80mm) | 18 | 12 | Board Edge, Through Hole, Right Angle | Press-Fit | 72 Signal Pairs, 72 Ground | - | Gold or Gold, GXT™ | 30.0µin (0.76µm) | Black |
|
|
0761456603CONN HEADER IMPACT 288POS PCB |
7,110 |
|
Datasheet |
Impact 76145 | Tray | Obsolete | - | Header, Male Pins | Impact, Guide Left | 288 | All | 0.053" (1.35mm) | 18 | 16 | Through Hole | Press-Fit | 96 Differential Pairs | - | Gold | 30.0µin (0.76µm) | Black |
|
|
89009-921PF VERT SIG HDR STD 96MM- 5 ROW |
4,740 |
|
Datasheet |
Metral® | Tube | Active | - | Header, Male Pins | High Speed | 240 | All | 0.079" (2.00mm) | 5 | - | Through Hole | Press-Fit | - | - | - | - | Natural |
|
|
10090081-101LFHEADER BERGSTIK |
8,370 |
|
Datasheet |
Metral® | Bulk | Active | Backplane | Receptacle, Female Sockets | - | 48 | 24 | - | 6 | 12 | Free Hanging (In-Line) | Crimp, IDC | - | 2 Modules, Board Guide | - | - | Natural |
|
|
2042257-2VERT.MALE, IEC PRE-POST 2X |
9,634 |
|
Datasheet |
Z-PACK Slim UHD | Box | Active | - | Header, Male Pins | - | 96 | All | - | 8 | 12 | Through Hole | Press-Fit | - | - | Tin | 20.0µin (0.51µm) | Natural |
|
516-020-500-102516 SERIES RACK & PANEL CONNECTO |
5,056 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Panel Mount | Solder Eyelet(s) | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
516-020-501-102516 SERIES RACK & PANEL CONNECTO |
2,380 |
|
Datasheet |
516 | Bulk | Active | Backplane | Plug, Hermaphroditic Contacts | Rack and Panel | 20 | All | 0.150" (3.81mm) | 4 | 10 | Panel Mount | Solder | - | Jackscrew, Guide Pin | Gold | 10.0µin (0.25µm) | Green |
|
|
74817-9012LFCONN HEADER HIGH SPEED 36POS PCB |
2,738 |
|
Datasheet |
Metral® 1000 | Tube | Active | - | Header, Male Pins | High Speed | 36 | All | 0.079" (2.00mm) | 5 | - | Through Hole | Press-Fit | 30 Signal, 6 Ground | Shielded | Gold | 30.0µin (0.76µm) | Natural |
|
|
74817-9013LFCONN HEADER HIGH SPEED 36POS PCB |
4,546 |
|
Datasheet |
Metral® 1000 | Tube | Active | - | Header, Male Pins | High Speed | 36 | All | 0.079" (2.00mm) | 5 | - | Through Hole | Press-Fit | 30 Signal, 6 Ground | Shielded | Gold | 30.0µin (0.76µm) | Natural |
|
|
74977-301013LFCONN HEADER HIGH SPEED 36POS PCB |
4,522 |
|
Datasheet |
Metral® 2000 | Tube | Active | - | Header, Male Pins | High Speed | 36 | All | 0.079" (2.00mm) | 5 | - | Through Hole | Press-Fit | 30 Signal, 6 Ground | - | Gold | 51.2µin (1.30µm) | Natural |
|
|
98122-3001LFMET STD SIG HDR |
6,966 |
|
Datasheet |
- | Bulk | Active | - | Header, Male Pins | - | 30 | All | 0.079" (2.00mm) | 5 | 6 | Through Hole | Press-Fit | - | - | - | - | - |
|
|
74817-2038LFM1000 SIG HDR |
3,270 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
533903-8CONN PLUG HD 100POS PCB |
9,452 |
|
Datasheet |
HDI (High Density Interconnect) | Bulk | Active | - | Plug, Male Pins | High Density (HDC, HDI, HPC) | 100 | All | 0.100" (2.54mm) | 2 | - | Through Hole | Solder | - | Mating Guide | Gold | 50.0µin (1.27µm) | Natural |
|
|
MMD21-0071R1CONN RCPT RACK&PNL 7P FREE HANG |
3,454 |
|
Datasheet |
MM22 | Bulk | Active | - | Receptacle, Female Sockets | Rack and Panel | 7 | All | - | 2 | - | Free Hanging (In-Line) | Solder Cup | - | Screwlocks | Gold | 10.0µin (0.25µm) | Green |
|
|
10127789-11JLFCONN RCPT EXAMAX 200POS EDGE MNT |
2,914 |
|
Datasheet |
ExaMAX® | Bulk | Active | Daughtercard | Receptacle | ExaMax® Guide Right | 200 | All | - | 20 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | - | - | Black |
|
|
10127789-12JLFCONN RCPT EXAMAX 200POS EDGE MNT |
2,212 |
|
Datasheet |
ExaMAX® | Bulk | Active | Daughtercard | Receptacle | ExaMax® Guide Left | 200 | All | - | 20 | 10 | Board Edge, Through Hole, Right Angle | Press-Fit | - | - | - | - | Black |
|
6367580-3CONN PLUG HIGH SPEED 96POS PCB |
8,316 |
|
Datasheet |
Z-DOK+ | Tube | Active | - | Plug, Male Pins and Blades | High Speed | 96 | All | - | - | - | Through Hole, Right Angle | Solder | 24 Differential Pairs, 24 Ground, 4 Utility | Board Lock, Guide Pin | Gold | 30.0µin (0.76µm) | Natural |
