Backplane Connector Housings
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Connector Style | Number of Positions | Pitch | Number of Rows | Mounting Type | Connector Usage | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
533236-5CONN SHROUD DIN 41612 96POS GRY |
2,628 |
|
Datasheet |
Eurocard | Bulk | Active | Shroud for Male Pins | DIN 41612, Type C, Type R | 96 | 0.100" (2.54mm) | 3 | Through Hole | - | - | Gray |
|
100745-3CONN PLUG HSG HARD METRIC 6P GRY |
280 |
|
Datasheet |
Z-PACK | Bulk | Active | Housing for Male Pins | Hard Metric, Type L | 6 (Fiber Optics or Power) | - | 1 | Through Hole | Plug | Board Guide | Gray |
|
1600798-7CONN RCPT HSG MULTI-BEAM 2POS |
1,144 |
|
Datasheet |
MULTI-BEAM XLE | Tube | Active | Housing for Female Blade Sockets | Multi-Beam | 2 (Power) | - | 1 | Free Hanging (In-Line) | Receptacle | Latch Lock | - |
|
PLB3W3M1000/AABACKPLANE |
556 |
|
Datasheet |
PLB | Tray | Active | Housing for Male Pins | Power | 3 | 0.197" (5.00mm) | 2 | Panel Mount | Plug | - | Blue |
|
PLB16M0000/AABACKPLANE |
284 |
|
Datasheet |
PLB | Tray | Active | Housing for Male Pins | Power | 16 | 0.197" (5.00mm) | 2 | Free Hanging (In-Line) | Plug | - | Blue |
|
PLB16F0000/AABACKPLANE |
262 |
|
Datasheet |
PCS | Tray | Active | Housing for Female Sockets | Power | 16 | 0.197" (5.00mm) | 2 | Free Hanging (In-Line) | Receptacle | - | Blue |
|
1-533236-0CONN SHROUD DIN 41612 96POS GRY |
640 |
|
Datasheet |
Eurocard | Bulk | Active | Shroud for Male Pins | DIN 41612, Type C, Type R | 96 | 0.100" (2.54mm) | 3 | Through Hole | - | - | Gray |
|
PLC30F0000/AABACKPLANE |
292 |
|
Datasheet |
PLC | Tray | Active | Housing for Female Sockets | Power | 30 | 0.197" (5.00mm) | 2 | Free Hanging (In-Line) | Receptacle | - | Blue |
|
PLC30M0000/AABACKPLANE |
214 |
|
Datasheet |
PLC | Tray | Active | Housing for Male Pins | Power | 30 | 0.197" (5.00mm) | 2 | Free Hanging (In-Line) | Plug | - | Blue |
|
035LDAPPOWER DRAWER HSG.LOW.DRAW.PIN #1 |
2,374 |
|
Datasheet |
Power Drawer® | Tray | Active | Housing for Male Pins | Drawer | 29 (21 + 8 Power) | - | 3 | Panel Mount | Plug | Guide Pin | Black |
|
1-292186-2CONN RCPT HSG MIN-DRAWER 18P BLK |
456 |
|
Datasheet |
- | Tray | Active | Housing for Female Sockets | Mini-Drawer | 18 (12 + 6 Power) | - | 2 | Panel Mount | Receptacle | - | Black |
|
200346-2CONN 20POS BLACK PNL MNT |
810 |
|
Datasheet |
M | Bulk | Active | - | - | 20 | 0.150" (3.81mm) | 3 | Panel Mount | Receptacle | - | Black |
|

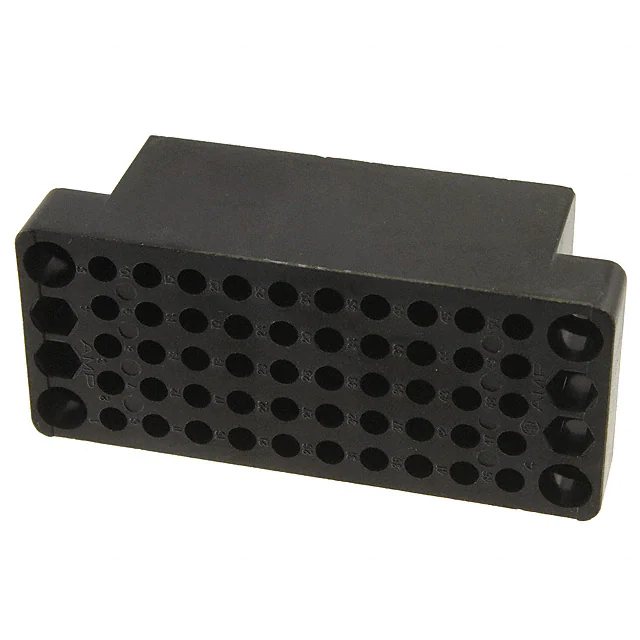

203622-2CONN RCPT HSG 50POS BLK PNL MNT |
498 |
|
Datasheet |
M | Bulk | Active | Housing for Female Sockets | - | 50 | 0.200" (5.08mm) | 5 | Panel Mount | Plug | Jackscrew Socket | Black |
|
201297-1CONN PLUG HSG 14POS BLK PNL MNT |
320 |
|
Datasheet |
M | Bulk | Active | Housing for Male Pins | - | 14 | 0.150" (3.81mm) | 3 | Panel Mount | Plug | - | Black |
|
202515-1CONN PLUG HSG 42POS BLK PNL MNT |
650 |
|
Datasheet |
M | Bulk | Active | Housing for Male Pins | - | 42 (36 + 6 Power) | - | 5 | Panel Mount | Plug | - | Black |
|

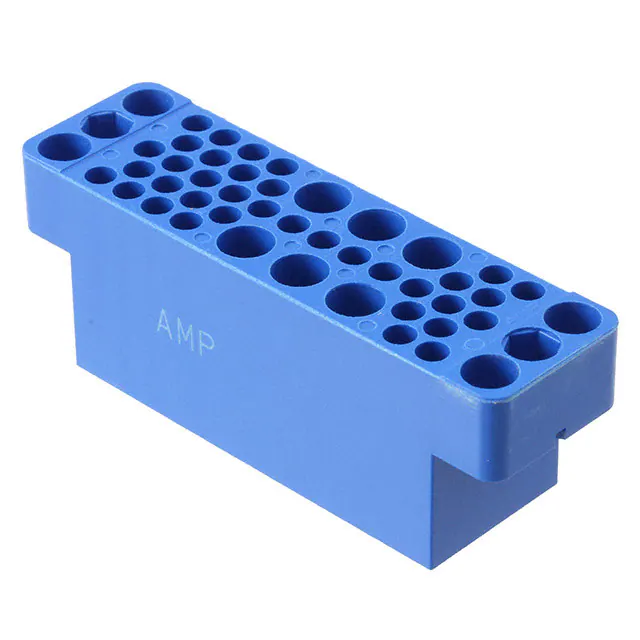

202516-3CONN RCPT HSG 42POS BLUE PNL MNT |
294 |
|
Datasheet |
M | Bulk | Active | Housing for Female Sockets | - | 42 (36 + 6 Power) | - | 5 | Panel Mount | Receptacle | - | Blue |
|

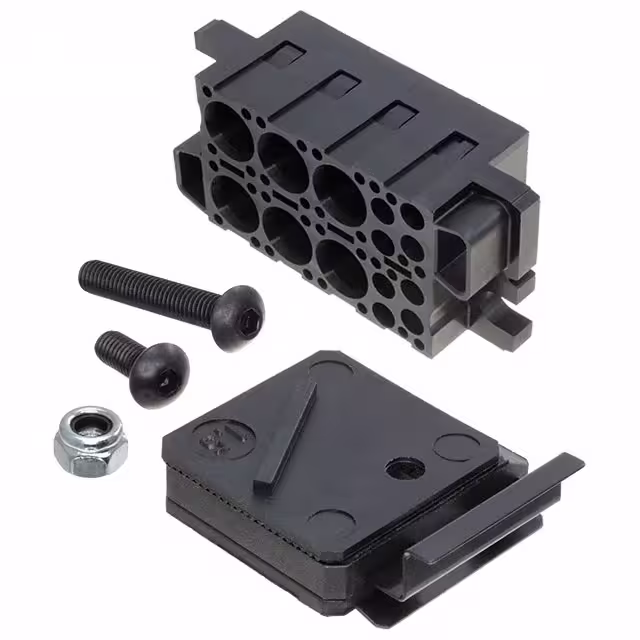

2212367-1FORGE, ASSY PIN, 0/0-6/4-0/8-2/1 |
218 |
|
Datasheet |
FORGE | Bulk | Active | Housing for Male Pins | - | 14 (Power) | - | 2 | Panel Mount | Plug | Mating Guide | Black |
|
1648552-1CONN PLUG HSG DRAWER 39POS BLK |
3,760 |
|
Datasheet |
ELCON | Bulk | Active | Housing for Male Pins | Drawer | 39 (24 + 15 Power) | - | - | Panel Mount | Plug | - | Black |
|
2212243-1FORGE, ASSY PIN, 0/0-4/4-0/8-0/1 |
576 |
|
Datasheet |
FORGE | Bulk | Active | Housing for Male Pins | - | 4 (Power) | - | 2 | Panel Mount | Plug | Mating Guide | Black |
|
2212245-1FORGE, ASSY SCKT, 0/0-4/4-0/8-0/ |
672 |
|
Datasheet |
FORGE | Bulk | Active | Housing for Female Sockets | - | 4 (Power) | - | 2 | Panel Mount | Receptacle | Guide Pin | Black |
