Backplane Connector Housings
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Connector Style | Number of Positions | Pitch | Number of Rows | Mounting Type | Connector Usage | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
516-090-540-261516 SERIES RACK & PANEL CONNECTO |
5,940 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 90 | 0.150" (3.81mm) | 13 | Free Hanging (In-Line) | Receptacle | Backshell, Jackscrew, Mating Guide | Green |
|
516-090-541-251516 SERIES RACK & PANEL CONNECTO |
4,300 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 90 | 0.150" (3.81mm) | 13 | Free Hanging (In-Line) | Receptacle | Backshell, Jackscrew, Mating Guide | Green |
|
516-090-541-651516 SERIES RACK & PANEL CONNECTO |
9,684 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 90 | 0.150" (3.81mm) | 13 | Free Hanging (In-Line) | Receptacle | Backshell, Jackscrew, Mating Guide | Green |
|
516-090-540-661516 SERIES RACK & PANEL CONNECTO |
9,518 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 90 | 0.150" (3.81mm) | 13 | Free Hanging (In-Line) | Receptacle | Backshell, Jackscrew, Mating Guide | Green |
|
516-120-541-361516 SERIES RACK & PANEL CONNECTO |
8,538 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 120 | 0.150" (3.81mm) | 17 | Free Hanging (In-Line) | Plug | Backshell, Jackscrew, Guide Pin | Gray |
|
516-120-542-251516 SERIES RACK & PANEL CONNECTO |
4,138 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 120 | 0.150" (3.81mm) | 17 | Free Hanging (In-Line) | Receptacle | Backshell, Jackscrew, Mating Guide | Green |
|
516-120-541-351516 SERIES RACK & PANEL CONNECTO |
9,080 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 120 | 0.150" (3.81mm) | 17 | Free Hanging (In-Line) | Plug | Backshell, Jackscrew, Guide Pin | Gray |
|
516-120-541-261516 SERIES RACK & PANEL CONNECTO |
6,986 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 120 | 0.150" (3.81mm) | 17 | Free Hanging (In-Line) | Receptacle | Backshell, Jackscrew, Mating Guide | Green |
|
171332-1CONN RCPT HSG 104POS BLK PNL MNT |
5,692 |
|
- |
M | Bulk | Active | Housing for Female Sockets | - | 104 | - | - | Panel Mount | Receptacle | - | Black |
|
202799-2CONN 160POS BLACK PNL MNT |
5,504 |
|
Datasheet |
M | Bulk | Active | - | - | 160 | - | 13 | Panel Mount | Plug | Jackscrew | Black |
|
|
171328-2CONN RCPT HSG 75POS BLK PNL MNT |
8,446 |
|
- |
M | Bulk | Active | Housing for Female Sockets | - | 75 | - | 6 | Panel Mount | Receptacle | - | Black |
|

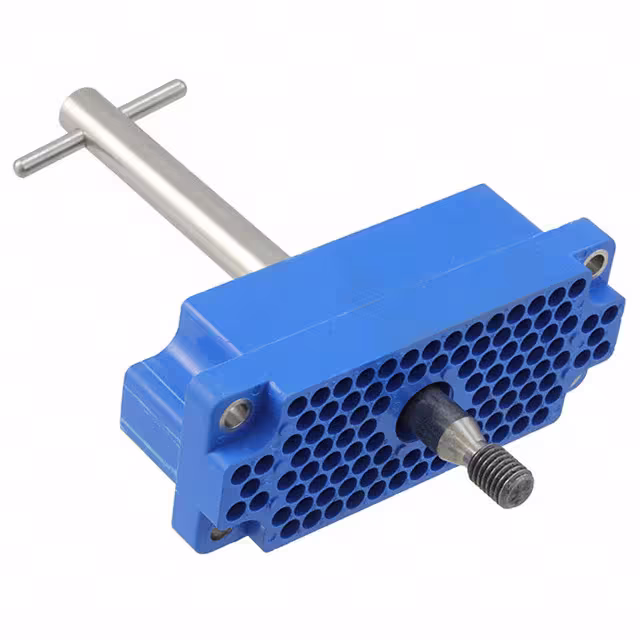

201692-3CONN 104POS BLUE PNL MNT |
7,718 |
|
Datasheet |
M | Bulk | Active | - | - | 104 | 0.150" (3.81mm) | 8 | Panel Mount | Plug | Jackscrew | Blue |
|
|
171327-8CONN PLUG HSG 75POS BLK PNL MNT |
3,252 |
|
- |
M | Bulk | Active | Housing for Male Pins | - | 75 | - | 6 | Panel Mount | Plug | - | Black |
|
|
MS50PM157GE00CONN PLUG HSG 50POS BLK IN-LINE |
7,106 |
|
Datasheet |
MS-M | Bulk | Active | Housing for Male Contacts | - | 50 | - | 4 | Free Hanging (In-Line) | - | Backshell, Jackscrew | Black |
|
|
171834-1CONN RCPT HSG 28POS PNL MNT |
7,774 |
|
- |
M | Bulk | Active | Housing for Female Sockets | - | 28 | - | - | Panel Mount | Receptacle | - | - |
|
|
204734-2CONN RCPT HSG 48POS PNL MNT |
7,554 |
|
Datasheet |
HDR (High Density Rectangular) | Bulk | Active | Housing for Female Sockets | - | 48 | 0.100" (2.54mm) | 3 | Panel Mount | Receptacle | Jackscrew | - |
|
|
1738949-2ASY,RECPT,PWB MOUNT,4 POS |
4,446 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - |
|
|
DPDMA-B28-33S-1LRP DPD CRIMP PLUG |
5,568 |
|
- |
DPDMA | Bulk | Active | Housing for Female Sockets | Rack and Panel | 28 | - | - | Free Hanging (In-Line) | - | - | - |
|
QR/P8-12P-C(01)CONN PLUG HSG RACK & PNL 12P BLK |
4,502 |
|
Datasheet |
QR/P8 | Bulk | Obsolete | Housing for Male Pins | Rack and Panel | 12 | 0.079" (2.00mm) | 2 | Panel Mount | Plug | Guide Pin | Black |
|
352130-2CONN SHROUD HARD METRIC 154P GRY |
3,810 |
|
Datasheet |
Z-PACK | Bulk | Obsolete | Shroud for Male Pins | Hard Metric, Type B22 | 154 | 0.079" (2.00mm) | 5 + 2 | Through Hole | - | - | Gray |
