Backplane Connector Housings
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Connector Style | Number of Positions | Pitch | Number of Rows | Mounting Type | Connector Usage | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
516-056-000-636516 SERIES RACK & PANEL CONNECTO |
9,154 |
|
Datasheet |
516 | Box | Active | Housing for Non-Gendered Contacts | Rack and Panel | 56 | 0.150" (3.81mm) | 9 | Free Hanging (In-Line) | Receptacle | Backshell, Jackscrew Socket | Green |
|
516-090-000-201CONN HSG RACK & PANEL 90POS GRN |
5,728 |
|
Datasheet |
516 | Bulk | Active | Housing for Non-Gendered Contacts | Rack and Panel | 90 | 0.150" (3.81mm) | 13 | - | Receptacle | Jackscrew, Mating Guide | Green |
|
516-056-000-131CONN HSG RACK & PANEL 56POS GRN |
9,386 |
|
Datasheet |
516 | Bulk | Active | Housing for Non-Gendered Contacts | Rack and Panel | 56 | 0.150" (3.81mm) | 9 | Free Hanging (In-Line) | Plug | Backshell, Jackscrew, Guide Pin | Green |
|
208626-2CONN RCPT HSG 62POS PNL MNT |
8,872 |
|
Datasheet |
Metrimate | Bulk | Active | Housing for Female Sockets | - | 62 | - | 5 | Panel Mount | Receptacle | Jackscrew Socket | - |
|
1648555-1295-0052-01100(SEE DBL DWR CAT) |
4,854 |
|
Datasheet |
ELCON | Bulk | Active | Housing for Male Pins | Drawer | 39 | - | - | Panel Mount | Plug | Guide Pin | Black |
|
516-056-000-651CONN HSG RACK & PANEL 56POS GRN |
2,618 |
|
Datasheet |
516 | Bulk | Active | Housing for Non-Gendered Contacts | Rack and Panel | 56 | 0.150" (3.81mm) | 9 | Free Hanging (In-Line) | Receptacle | Backshell, Jackscrew, Mating Guide | Green |
|
2212174-1FORGE, ASSY PIN, 0#0-2#4-0#8-3#1 |
4,636 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - |
|
|
2212173-1FORGE, ASSY SCKT, 0#0-2#4-0#8-3# |
4,504 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - |
|

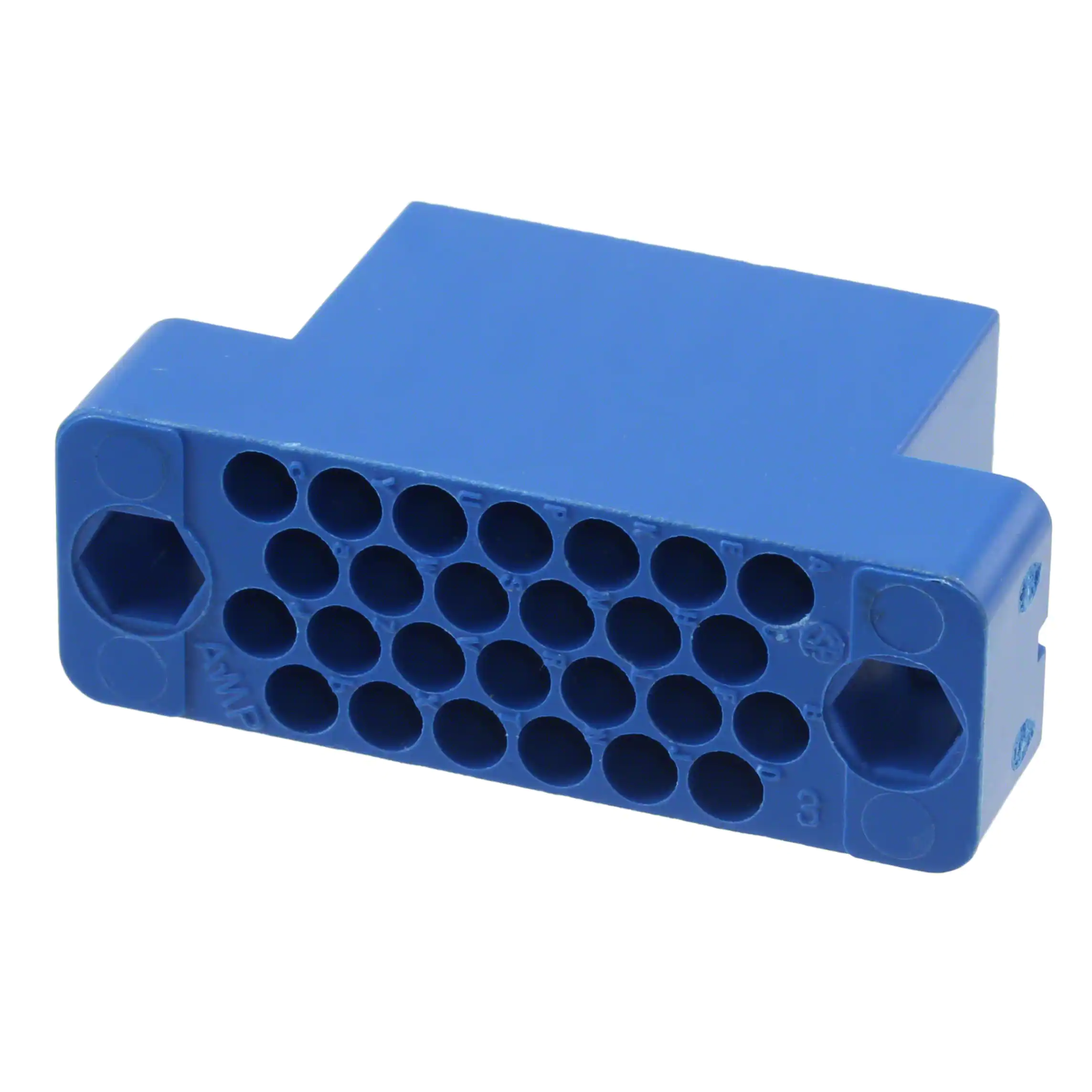

200512-3CONN 26POS BLUE PNL MNT |
5,314 |
|
Datasheet |
M | Bulk | Active | - | - | 26 | 0.150" (3.81mm) | 4 | Panel Mount | Receptacle | - | Blue |
|
|
2212303-1FORGE, ASSY SCKT, 4#0-0#4-4#8-0# |
6,618 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - |
|
1648152-1CONN PLUG HSG DRAWER 40POS BLK |
7,888 |
|
Datasheet |
ELCON | Bulk | Active | Housing for Male Pins | Drawer, Middle | 40 (32 + 8 Power) | - | - | Panel Mount | Plug | Guide Pin | Black |
|
202800-2CONN 160POS BLACK PNL MNT |
4,356 |
|
Datasheet |
M | Bulk | Active | - | - | 160 | - | 13 | Panel Mount | Receptacle | Jackscrew Socket | Black |
|
10164742-002LFMILLIPACS PLUS CENTRE GUIDE MODU |
500 |
|
Datasheet |
Millipacs® | Bulk | Active | Housing for Male Pins | - | - | 0.079" (2.00mm) | 5 | Free Hanging (In-Line) | Header | Mating Guide | - |
|
10164742-003LFMILLIPACS PLUS LEFT END GUIDE MO |
500 |
|
Datasheet |
Millipacs® | Bulk | Active | Housing for Male Pins | - | - | 0.079" (2.00mm) | 5 | Free Hanging (In-Line) | Header | Mating Guide | - |
|
10164742-001LFMILLIPACS PLUS RIGHT END GUIDE M |
500 |
|
Datasheet |
Millipacs® | Bulk | Active | Housing for Male Pins | - | - | 0.079" (2.00mm) | 5 | Free Hanging (In-Line) | Header | Mating Guide | - |
|
10164743-002LFMILLIPACS PLUS CENTRE GUIDE SOCK |
500 |
|
Datasheet |
Millipacs® | Bulk | Active | Housing for Female Sockets | - | - | 0.079" (2.00mm) | 5 | Free Hanging (In-Line) | Receptacle | Mating Guide | - |
|
10164743-003LFMILLIPACS PLUS LEFT END GUIDE SO |
500 |
|
Datasheet |
Millipacs® | Bulk | Active | Housing for Female Sockets | - | - | 0.079" (2.00mm) | 5 | Free Hanging (In-Line) | Receptacle | Mating Guide | - |
|
10164743-001LFMILLIPACS PLUS RIGHT END GUIDE S |
500 |
|
Datasheet |
Millipacs® | Bulk | Active | Housing for Female Sockets | - | - | 0.079" (2.00mm) | 5 | Free Hanging (In-Line) | Receptacle | Mating Guide | - |
|
17700002004CONN SHROUD B25 175POS |
6,802 |
|
Datasheet |
har-bus® HM | Bulk | Active | Shroud for Male Pins | B 25 | 175 | 0.079" (2.00mm) | 7 | - | - | - | - |
|
QR/P6-12P-C(21)CONN PLUG HSG RACK & PNL 12P BLK |
7,086 |
|
Datasheet |
QR/P6 | Bag | Active | Housing for Male Pins | Rack and Panel | 12 | 0.100" (2.54mm) | 2 | Panel Mount | Plug | Guide Pin | Black |
