Backplane Connector Contacts
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Pin or Socket | Contact Termination | Wire Gauge | Contact Finish | Contact Finish Thickness | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1766193-1CONTACT PIN POWER 12AWG SILVER |
37,718 |
|
Datasheet |
ELCON | Bulk | Active | Power | Pin | Crimp | 12 AWG | Silver | 200.0µin (5.08µm) | - | - |
|
170313-1CONTACT NON-GEND SGNL 20-24AWG |
22,594 |
|
Datasheet |
- | Bulk | Active | Signal | Non-Gendered | Crimp | 20-24 AWG | Gold | - | - | - |
|
030-2259-000RACK & PANEL |
34,966 |
|
Datasheet |
600 BKA | Bulk | Active | Signal | Pin | Crimp | 22-26 AWG | Gold | - | - | - |
|
170485-1CONTACT NON-GEND SGNL 16-20AWG |
12,562 |
|
Datasheet |
- | Bulk | Active | Signal | Non-Gendered | Crimp | 16-20 AWG | Gold | - | - | - |
|
030-2493-001CONTACT NON-GEND SGNL 18-20AWG |
19,528 |
|
Datasheet |
DL | Bulk | Active | Signal | Non-Gendered | Crimp | 18-20 AWG | Gold | 50.0µin (1.27µm) | - | - |
|
1766194-1CONTACT PIN POWER 16AWG SILVER |
1,348 |
|
Datasheet |
ELCON | Bulk | Active | Power | Pin | Crimp | 16 AWG | Silver | 200.0µin (5.08µm) | - | - |
|
030-7380-001CONTACT NON-GEND SGNL 18-30AWG |
28,098 |
|
Datasheet |
DL | Bulk | Active | Signal | Non-Gendered | Quick Connect or Solder | 18-30 AWG | Gold | 20.0µin (0.51µm) | - | - |
|
RM300-000-581-0000CRIMP REMOVABLE CONTACTS, RECTAN |
426 |
|
Datasheet |
R | Bag | Active | - | Socket | Crimp | 24-26 AWG | Gold | - | - | - |
|
1766192-1CONTACT PIN POWER 8AWG SILVER |
4,446 |
|
Datasheet |
ELCON | Bulk | Active | Power | Pin | Crimp | 8 AWG | Silver | 200.0µin (5.08µm) | - | - |
|
1650162-2CONTACT PIN POWER 20AWG GOLD |
5,550 |
|
Datasheet |
ELCON | Bulk | Active | Power | Pin | Crimp | 20 AWG | Gold | 10.0µin (0.25µm) | - | - |
|
M39029/11-144CONTACT PIN SIGNAL 22-26AWG GOLD |
8,184 |
|
Datasheet |
- | Bulk | Active | Signal | Pin | Crimp | 22-26 AWG | Gold | 50.0µin (1.27µm) | Military | MIL-C-39029 |
|
208264-2CONTACT SCKT SGNL 22-26AWG GOLD |
1,516 |
|
Datasheet |
ARINC | Bulk | Active | Signal | Socket | Crimp | 22-26 AWG | Gold | 50.0µin (1.27µm) | - | - |
|
SC12-SNPOWER DRAWER CONTACT#12 SOCKET C |
368 |
|
Datasheet |
Power Drawer® | Bulk | Active | Power | Socket | Crimp | 12 AWG | Silver | - | - | - |
|

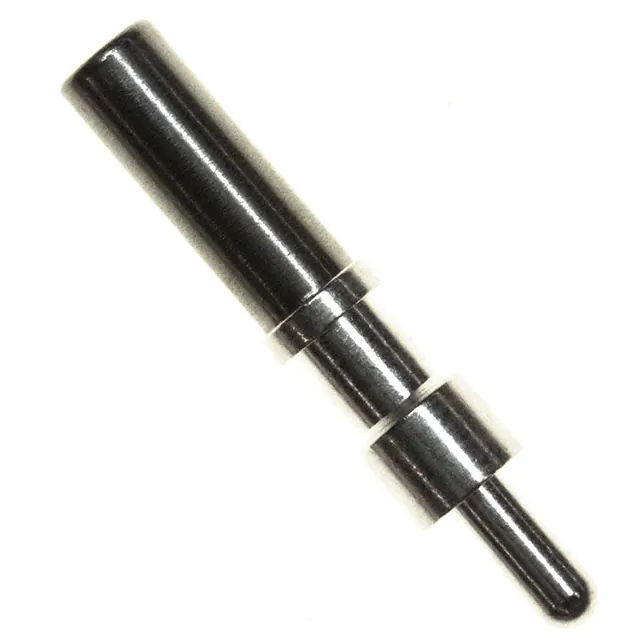

6648374-1CONTACT SOCKET POWER GOLD |
6,626 |
|
Datasheet |
ELCON | Bulk | Active | Power | Socket | Solder, PCB | - | Gold | 30.0µin (0.76µm) | - | - |
|
8-192044-1CONTACT FEMALE BAND POWER GOLD |
28,336 |
|
Datasheet |
Louvertac, LAV | Bulk | Active | Power | Female Band | - | - | Gold | 20.0µin (0.51µm) | - | - |
|
M39029/12-148CONTACT SCKT SGNL 22-26AWG GOLD |
9,818 |
|
Datasheet |
- | Bulk | Active | Signal | Socket | Crimp | 22-26 AWG | Gold | - | Military | MIL-C-39029 |
|
3-192047-7CONTACT FEMALE BAND POWER GOLD |
6,860 |
|
Datasheet |
Louvertac, LAVI | Bulk | Active | Power | Female Band | - | - | Gold | 20.0µin (0.51µm) | - | - |
|
1-1393589-8CONN PIN COAX GOLD SOLDER |
1,318 |
|
Datasheet |
Eurocard | Tray | Active | Power | Pin | Solder, PCB | - | - | 39.4µin (1.00µm) | - | - |
|
4-192038-9CONTACT FEMALE BAND POWER GOLD |
9,774 |
|
Datasheet |
Louvertac, LAIII | Bulk | Active | Power | Female Band | - | - | Gold | 10.0µin (0.25µm) | - | - |
|
09030006127DIN-SIGNAL HIGH CURRENT M 40A S |
320 |
|
Datasheet |
DIN 41612 | Tube | Active | Power | Pin | Solder | - | - | - | - | - |
