Backplane Connector Contacts
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Pin or Socket | Contact Termination | Wire Gauge | Contact Finish | Contact Finish Thickness | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1766263-1CONTACT PIN POWER SILVER |
9,104 |
|
Datasheet |
ELCON | Bulk | Active | Power | Pin | Solder, PCB | - | Silver | 200.0µin (5.08µm) | - | - |
|
|
124A14029XCONN 20A FML PC POWER CONTACT |
7,530 |
|
- |
- | Bulk | Active | Power | Socket | - | - | - | - | - | - |
|
|
1-192047-9CONTACT FEMALE BAND POWER GOLD |
8,342 |
|
Datasheet |
Louvertac, LAVI | Bulk | Active | Power | Female Band | - | - | Gold | 20.0µin (0.51µm) | - | - |
|
|
1650201-3707-0138-02109=CONTACT,PIN,#12 |
9,118 |
|
Datasheet |
ELCON | Bag | Active | - | Pin | - | - | - | - | - | - |
|
533082-9CONTACT PIN POWER GOLD |
2,568 |
|
Datasheet |
HDI (High Density Interconnect) | Bulk | Obsolete | Power | Pin | Screw Mount | - | Gold | 30.0µin (0.76µm) | - | - |
|
|
SP12-SNPOWER DRAWER CONT.#12 SOC.PCB |
7,488 |
|
Datasheet |
Power Drawer® | Bulk | Active | Power | Socket | Solder, PCB | 12 AWG | Silver | - | - | - |
|
|
SS12-SNPOWER DRAWER CONT.#12 SOC. SOLDE |
3,734 |
|
Datasheet |
Power Drawer® | Bulk | Active | Power | Socket | Solder Cup | 12 AWG | Silver | - | - | - |
|
|
DWR23A014G02BPDWR23A014G02- ELEMENTS SOCKET, A |
2,210 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - |
|
1766188-1CONTACT PIN PWR 12-14AWG SILVER |
5,844 |
|
Datasheet |
- | Bulk | Active | Power | Pin | Crimp | 12-14 AWG | Silver | 200.0µin (5.08µm) | - | - |
|
1766160-1CONTACT PIN POWER SILVER |
4,594 |
|
Datasheet |
ICCON, Elcon | Bulk | Obsolete | Power | Pin | Crimp | - | Silver | 200.0µin (5.08µm) | - | - |
|
|
PS08SSNPOW.DRAW.CONT.#8 SOLDER, STD.MAT |
3,438 |
|
- |
Power Drawer® | Bulk | Active | Power | Pin | Solder | 8 AWG | Silver | - | - | - |
|
|
211431-8CONTACT SOCKET SIGNAL 22AWG GOLD |
9,408 |
|
Datasheet |
ARINC 600 | Tray | Active | Signal | Socket | Solder | 22 AWG | Gold | 50.0µin (1.27µm) | - | - |
|

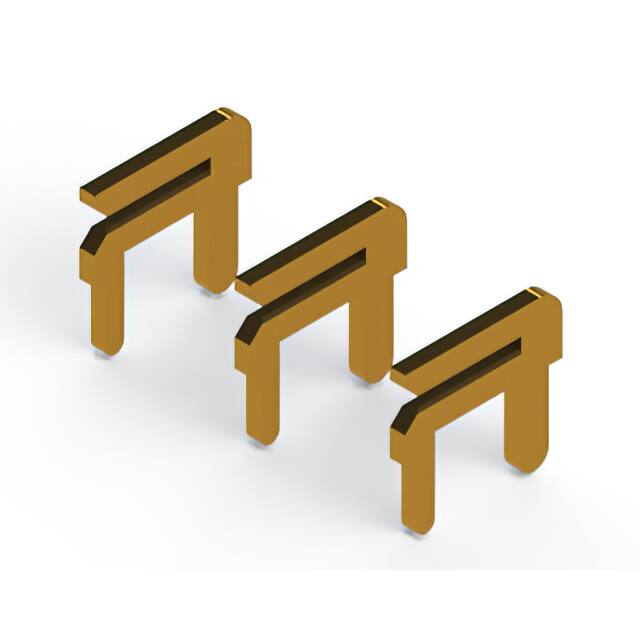

105-003-208-200105 SERIES CONTACT STRIP WITH 3 |
2,732 |
|
Datasheet |
516 | Strip | Active | Signal | Non-Gendered | Solder | - | Gold | - | - | - |
|
103-004-250-200103 SERIES CONTACT STRIP WITH 4 |
7,434 |
|
Datasheet |
103 | Strip | Active | Signal | Non-Gendered | Solder | - | Gold | - | - | - |
|
106-004-253-100106 SERIES CONTACT STRIP WITH 4 |
2,978 |
|
Datasheet |
106 | Strip | Active | Signal | Non-Gendered | Solder | - | Gold | - | - | - |
|
106-004-251-200106 SERIES CONTACT STRIP WITH 4 |
6,592 |
|
Datasheet |
106 | Strip | Active | Signal | Non-Gendered | Solder | - | Gold | - | - | - |
|
106-004-253-200106 SERIES CONTACT STRIP WITH 4 |
6,020 |
|
Datasheet |
106 | Strip | Active | Signal | Non-Gendered | Solder | - | Gold | - | - | - |
|
103-004-253-200103 SERIES CONTACT STRIP WITH 4 |
8,326 |
|
Datasheet |
103 | Strip | Active | Signal | Non-Gendered | Solder | - | Gold | - | - | - |
|
106-004-250-200106 SERIES CONTACT STRIP WITH 4 |
5,570 |
|
Datasheet |
106 | Strip | Active | Signal | Non-Gendered | Solder | - | Gold | - | - | - |
|
103-004-253-100103 SERIES CONTACT STRIP WITH 4 |
8,878 |
|
Datasheet |
103 | Strip | Active | Signal | Non-Gendered | Solder | - | Gold | - | - | - |
