Backplane Connector Contacts
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Pin or Socket | Contact Termination | Wire Gauge | Contact Finish | Contact Finish Thickness | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QR/P1-SC2A-211(12)CONTACT SCKT SGNL 24-28AWG GOLD |
19,300 |
|
Datasheet |
QR/P1 | Tape & Reel (TR) | Active | Signal | Socket | Crimp | 24-28 AWG | Gold | - | - | - |
|
QR/P1-PC2A-211(12)CONTACT PIN SIGNAL 24-28AWG GOLD |
9,240 |
|
Datasheet |
QR/P1 | Tape & Reel (TR) | Active | Signal | Pin | Crimp | 24-28 AWG | Gold | - | - | - |
|
09060006481310CONTACT SOCKET SIGNAL 20-26AWG |
25,000 |
|
- |
DIN 41612 | Tape & Reel (TR) | Active | Signal | Socket | Crimp | 20-26 AWG | - | - | - | - |
|
|
09060006482310CONTACT SOCKET SIGNAL 16-20AWG |
12,990 |
|
- |
DIN 41612 | Tape & Reel (TR) | Active | Signal | Socket | Crimp | 16-20 AWG | - | - | - | - |
|
QR/P1-SC1A-211(12)CONTACT SOCKET PWR 18-24AWG GOLD |
9,420 |
|
Datasheet |
QR/P1 | Tape & Reel (TR) | Active | Power | Socket | Crimp | 18-24 AWG | Gold | - | - | - |
|
QR/P1-SC2B-221(12)CONTACT SCKT SGNL 14-16AWG GOLD |
9,500 |
|
Datasheet |
QR/P1 | Tape & Reel (TR) | Active | Signal | Socket | Crimp | 14-16 AWG | Gold | - | - | - |
|
QR/P1-PC2B-221(12)CONTACT PIN SIGNAL 20-24AWG GOLD |
9,820 |
|
Datasheet |
QR/P1 | Tape & Reel (TR) | Active | Signal | Pin | Crimp | 20-24 AWG | Gold | - | - | - |
|
09060006461CONTACT SOCKET SIGNAL 20-26AWG |
4,186 |
|
Datasheet |
DIN 41612 | Bulk | Active | Signal | Socket | Crimp | 20-26 AWG | - | - | - | - |
|
030-2494-001DL |
20,230 |
|
Datasheet |
DL | Bulk | Active | Signal | Non-Gendered | Crimp | 28-31 AWG | Gold | 50.0µin (1.27µm) | - | - |
|
SC20-GNPOWER DRAWER CONT.#20 SOC.CRIMP |
928 |
|
Datasheet |
Power Drawer® | Bulk | Active | Power | Socket | Crimp | 20 AWG | Gold | - | - | - |
|
2-192039-1CONN MALE 16 LOUVERS BRIDGE |
9,802 |
|
Datasheet |
Louvertac, LAIIIS | Bulk | Active | Power | Male Band | - | - | Silver | 200.0µin (5.08µm) | - | - |
|
031-1352-001RP BKAF 22 CONT MOD SB |
1,998 |
|
Datasheet |
KPT | Bulk | Active | Power | Socket | Crimp | 22 AWG | Gold | - | - | - |
|
030-2273-000RACK & PANEL |
994 |
|
Datasheet |
600 BKA | Bulk | Active | Signal | Pin | Crimp | 20-22 AWG | Gold | - | - | - |
|
031-1046-002RACK & PANEL |
1,900 |
|
Datasheet |
DPX | Bulk | Active | Signal | Socket | Crimp | 20-24 AWG | Gold | - | - | - |
|
030-9083-001CON 16 PIN CRIMP ARINC |
1,700 |
|
Datasheet |
KPT | Bulk | Active | Power | Socket | Crimp | 16-20 AWG | Gold | - | - | - |
|

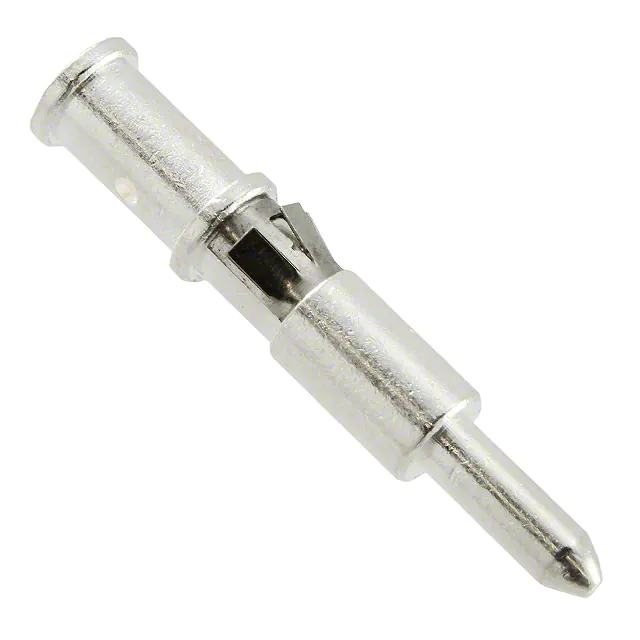

194189-8CONTACT PIN POWER 10AWG SILVER |
1,850 |
|
Datasheet |
Ampower | Bulk | Active | Power | Pin | Crimp | 10 AWG | Silver | - | - | - |
|

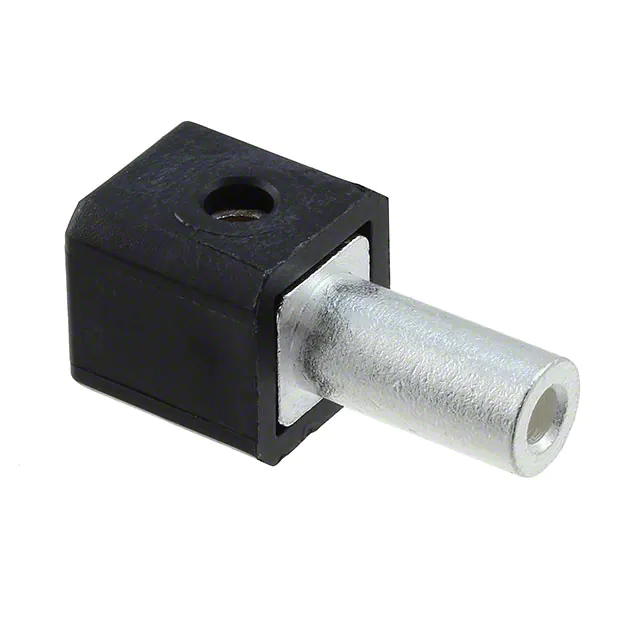

6648237-1CONTACT SOCKET POWER 12AWG GOLD |
1,830 |
|
Datasheet |
Rapid Lock, Elcon | Bulk | Active | Power | Socket | Crimp | 12 AWG | Gold | 30.0µin (0.76µm) | - | - |
|
2361493-1ICCON INSERT SIZE 8.0MM PIN |
904 |
|
Datasheet |
- | Box | Active | Power | Pin | Screw Mount | - | Silver | - | - | - |
|
192004-8CONN CONT FMALE LOUVERTAC 15DEG |
5,002 |
|
Datasheet |
Louvertac, LAIA | Bulk | Active | Power | Female Band | - | - | Silver | 200.0µin (5.08µm) | - | - |
|
249-1634-003DPXMEA152RG174USHL |
400 |
|
Datasheet |
DPX | - | Active | - | - | - | - | - | - | - | - |
