Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
827ULR6R3MGHCAP ALUM POLY 820UF 20% 6.3V TH |
5,272 |
|
Datasheet |
ULR | Bulk | Active | Polymer | 820 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | 332 mA @ 120 Hz | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

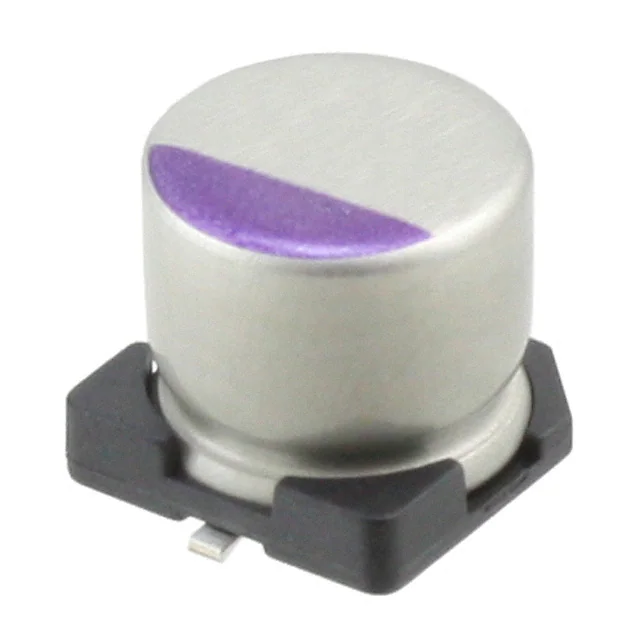

94SVP226X0025F8CAP ALUM POLY 22UF 20% 25V SMD |
5,956 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
94SVP336X0025E12CAP ALUM POLY 33UF 20% 25V SMD |
3,968 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.98 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
94SVP685X0025C6CAP ALUM POLY 6.8UF 20% 25V SMD |
7,972 |
|
Datasheet |
94SVP | Bulk | Obsolete | Polymer | 6.8 µF | ±20% | 25 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
94SVP106X0025E7CAP ALUM POLY 10UF 20% 25V SMD |
9,952 |
|
Datasheet |
94SVP | Bulk | Obsolete | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
686XMPL010MG28CAP ALUM POLY 68UF 20% 10V SMD |
7,848 |
|
Datasheet |
XMPL | Bulk | Active | Polymer | 68 µF | ±20% | 10 V | 40mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | Surface Mount |
|
35PZA100M10X10CAP ALUM POLY 100UF 20% 35V TH |
7,386 |
|
Datasheet |
PZA | Bulk | Obsolete | Polymer | 100 µF | ±20% | 35 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 120 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
35PZA22M6.3X8CAP ALUM POLY 22UF 20% 35V TH |
3,388 |
|
Datasheet |
PZA | Bulk | Obsolete | Polymer | 22 µF | ±20% | 35 V | 64mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 45 mA @ 120 Hz | 900 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole |
|
|
63PZA10M8X8CAP ALUM POLY 10UF 20% 63V TH |
8,784 |
|
Datasheet |
PZA | Bulk | Obsolete | Polymer | 10 µF | ±20% | 63 V | 75mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 50 mA @ 120 Hz | 1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.374" (9.50mm) | - | Through Hole |
|
EEF-CX0D271RCAP ALUM POLY 270UF 20% SMD |
7,760 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | - | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CX0D331XRCAP ALUM POLY 330UF 20% 2V SMD |
2,444 |
|
Datasheet |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-SX0D151ERCAP ALUM POLY 150UF 20% 2V SMD |
2,944 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 2 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-SX0E331E4CAP ALUM POLY 330UF 20% 2.5V SMD |
5,386 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-SX0E391E4CAP ALUM POLY 390UF 20% 2.5V SMD |
8,102 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-SX0G221E7CAP ALUM POLY 220UF 20% 4V SMD |
6,348 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ECG-SE0G221RCAP ALUM POLY |
5,436 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECG-SE0J181RCAP ALUM POLY |
6,136 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECG-UD0J151ERCAP ALUM POLY |
4,374 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EEF-CD0D151XRCAP ALUM POLY 150UF 20% 2V SMD |
9,462 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-CD0D181RCAP ALUM POLY 180UF 20% 2V SMD |
8,190 |
|
Datasheet |
SP-Cap CD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
