Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700X227M006ATE0107280CAP ALUM POLY 220UF 20% 6.3V SMD |
7,768 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 10mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

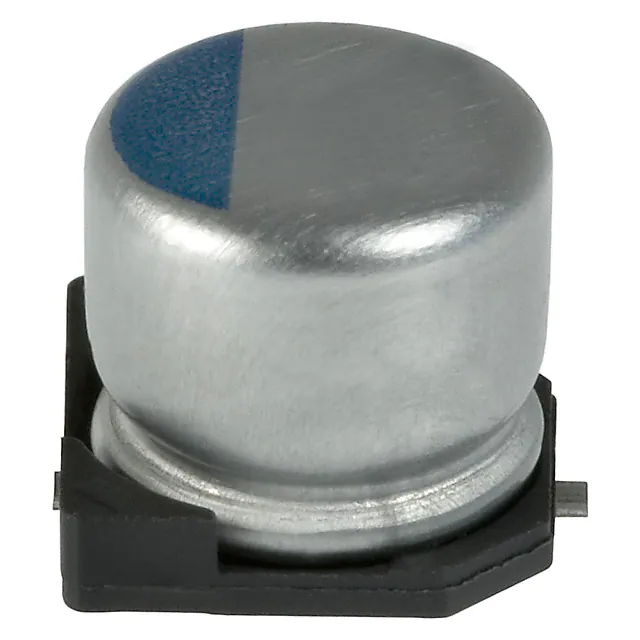

APXA160ARA390MF55GCAP ALUM POLY 39UF 20% 16V SMD |
3,060 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 39 µF | ±20% | 16 V | 37mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXA6R3ARA820MF55GCAP ALUM POLY 82UF 20% 6.3V SMD |
6,000 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 6.3 V | 27mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
2.5SXE100MCAP ALUM POLY 100UF 20% 2.5V SMD |
2,816 |
|
Datasheet |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
MAL218497315E3CAP ALUM POLY 2200UF 20% 6.3V |
2,082 |
|
- |
184 CPNS | Box | Active | Polymer | 2200 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
PLV1E271MDL1CAP ALUM POLY 270UF 20% 25V TH |
7,962 |
|
Datasheet |
PLV | Bulk | Obsolete | Polymer | 270 µF | ±20% | 25 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
SPA121M06BCAP ALUM POLY 120UF 20% 6.3V SMD |
7,562 |
|
Datasheet |
SPA | Bulk | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
94SVP475X0010A5CAP ALUM POLY 4.7UF 20% 10V SMD |
3,928 |
|
Datasheet |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 4.7 µF | ±20% | 10 V | 260mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 660 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
APXH100ARA151MH70GCAP ALUM POLY 150UF 20% 10V SMD |
2,958 |
|
Datasheet |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 35mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCF0G681MCL1GSCAP ALUM POLY 680UF 20% 4V SMD |
9,006 |
|
Datasheet |
PCF | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 4 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HTK-35V271MH10E-R2CAP ALUMHYB 270UF 20% 35V SMD |
2,160 |
|
- |
HTK | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
ECASD40E337M009KA0CAP ALUM POLY 330UF 20% 2.5V SMD |
5,782 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
HBV101M1HTR-1010SCAP ALUM HYB 100UF 20% 50V SMD |
4,426 |
|
Datasheet |
HBV | Active | Hybrid | 100 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | 28 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
2.5SXB82MCAP ALUM POLY 82UF 20% 2.5V SMD |
2,790 |
|
Datasheet |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCX1E560MCL1GSCAP ALUM POLY 56UF 20% 25V SMD |
6,674 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 25 V | 35mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.319" (8.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
MAL218697556E3CAP ALUM POLY 330UF 20% 20V SMD |
6,994 |
|
- |
186 CPNT | Box | Active | Polymer | 330 µF | ±20% | 20 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
PCR2A330MCL1GSCAP ALUM POLY 33UF 20% 100V SMD |
4,956 |
|
Datasheet |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 100 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
MAL218497612E3CAP ALUM POLY 270UF 20% 25V SMD |
9,800 |
|
- |
184 CPNS | Box | Active | Polymer | 270 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
875115560003CAP ALUM POLY 82UF 20% 25V SMD |
8,132 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.343" (8.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
ECASD31C476M040KH0CAP ALUM POLY 47UF 20% 16V SMD |
9,260 |
|
Datasheet |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 16 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
