Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL218497418E3CAP ALUM POLY 1000UF 20% 10V SMD |
7,156 |
|
- |
184 CPNS | Box | Active | Polymer | 1000 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
A700X107M008ATE0157280CAP ALUM POLY 100UF 20% 8V SMD |
8,986 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 8 V | 15mOhm | - | - | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PLS0G561MCO6TDCAP ALUM POLY 560UF 20% 4V TH |
3,566 |
|
Datasheet |
PLS | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

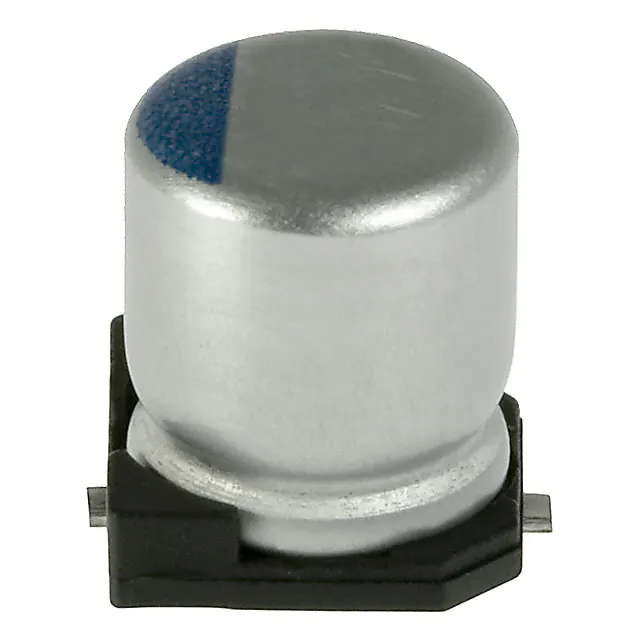

APXC6R3ARA101ME60GCAP ALUM POLY 100UF 20% 6.3V SMD |
5,464 |
|
Datasheet |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 35mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.78 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
PCR1K680MCSCNAGSCAP ALUM POLY 18UF 20% 50V SMD |
6,362 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F862FN225K310ZV054V136CAP ALUM POLY 100UF 20% 6.3V SMD |
5,420 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AHA1012820M050RCAP ALUM HYBRID 82UF 20% 50V SMD |
6,014 |
|
Datasheet |
AHA | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 50 V | 19mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 100 Hz | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
RCHVL561M1TFK5002CAP ALUMHYB 560UF 20% 25V SMD |
3,812 |
|
Datasheet |
HVL | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 18mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 1.5 A @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
RSHVX101M4EFK5002XCAP ALUMHYB 100UF 20% 63V SMD |
7,022 |
|
Datasheet |
HVX | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 26mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | - | General Purpose | Anti-Vibration | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
EEF-HL0G680RCAP ALUM POLY 68UF 20% 4V SMD |
5,676 |
|
Datasheet |
SP-Cap HL | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 4 V | 18mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HL0J470RCAP ALUM POLY 47UF 20% 6.3V SMD |
5,316 |
|
Datasheet |
SP-Cap HL | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 6.3 V | 18mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
870235374003CAP ALUM POLY 180UF 20% 16V TH |
7,552 |
|
Datasheet |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 255 mA @ 120 Hz | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
A720V107M016APE040CAP ALUM POLY 100UF 20% 16V SMD |
3,816 |
|
Datasheet |
AO-Cap A720 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
|
APZ0811220M100RCAP ALUM POLY 22UF 20% 100V SMD |
2,418 |
|
Datasheet |
APZ | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 100 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 30 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218697407E3CAP ALUM POLY 820UF 20% 10V SMD |
6,650 |
|
Datasheet |
186 CPNT | Box | Active | Polymer | 820 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|
|
AHA1012221M035RCAP ALUMHYB 220UF 20% 35V SMD |
7,994 |
|
Datasheet |
AHA | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 17mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
ESRD680M08BCAP ALUM POLY 68UF 20% 8V SMD |
2,022 |
|
Datasheet |
ESRD | Bulk | Obsolete | Polymer | 68 µF | ±20% | 8 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
AHA1012121M040RCAP ALUMHYB 120UF 20% 40V SMD |
8,132 |
|
Datasheet |
AHA | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 40 V | 18mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 100 Hz | 2.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
UPC1A102MNN0811UCAP ALUM POLY 1000UF 20% 10V TH |
8,590 |
|
Datasheet |
UPC | Active | Polymer | 1000 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
RPA1D561MCN1GSCAP ALUM POLY 560UF 20% 20V SMD |
8,556 |
|
Datasheet |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 310 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
