Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A750MV158M1CAAE010CAP ALUM POLY 1500UF 20% 16V TH |
3,144 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 1500 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
|
870575873001CAP ALUM HYBRID 10UF 20% 63V TH |
5,546 |
|
Datasheet |
WCAP-HTG5 | Cut Tape (CT) | Active | Hybrid | 10 µF | ±20% | 63 V | 100mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 106 mA @ 100 Hz | 1.06 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
A750MS477M1EAAE015CAP ALUM POLY 470UF 20% 25V TH |
5,394 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 470 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 245 mA @ 120 Hz | 4.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
870025575007CAP ALUM POLY 220UF 20% 25V TH |
2,812 |
|
Datasheet |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 245 mA @ 120 Hz | 4.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
875115252003CAP ALUM POLY 470UF 20% 10V SMD |
2,732 |
|
Datasheet |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.343" (8.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
50PZE68M8X9CAP ALUM HYBRID 68UF 20% 50V TH |
2,422 |
|
Datasheet |
PZE | Bulk | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
20SVPK150MCAP ALUM POLY 150UF 20% 20V SMD |
930 |
|
Datasheet |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 50.5 mA @ 120 Hz | 1.01 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

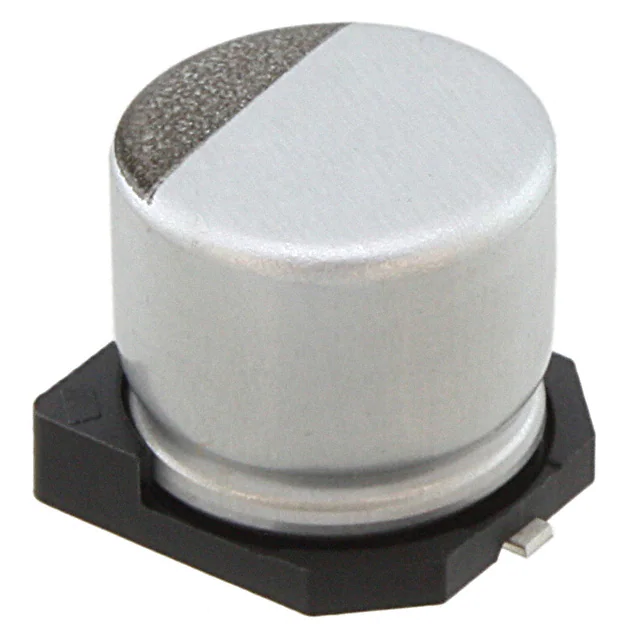

HHXA350ARA470MF61GCAP ALUM HYBRID 47UF 20% 35V SMD |
34,884 |
|
Datasheet |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RSA1C221MCN1GSCAP ALUM POLY 220UF 20% 16V SMD |
4,708 |
|
Datasheet |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 350 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXF250ARA221MHA0GCAP ALUMHYB 220UF 20% 25V SMD |
950 |
|
Datasheet |
HXF | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 18mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 390 mA @ 120 Hz | 3.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RHS1A151MCN1GSCAP ALUM POLY 150UF 20% 10V SMD |
23,204 |
|
Datasheet |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLF1E100MCL7TPCAP ALUM POLY 10UF 20% 25V TH |
20,378 |
|
Datasheet |
PLF | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 25 V | 65mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|

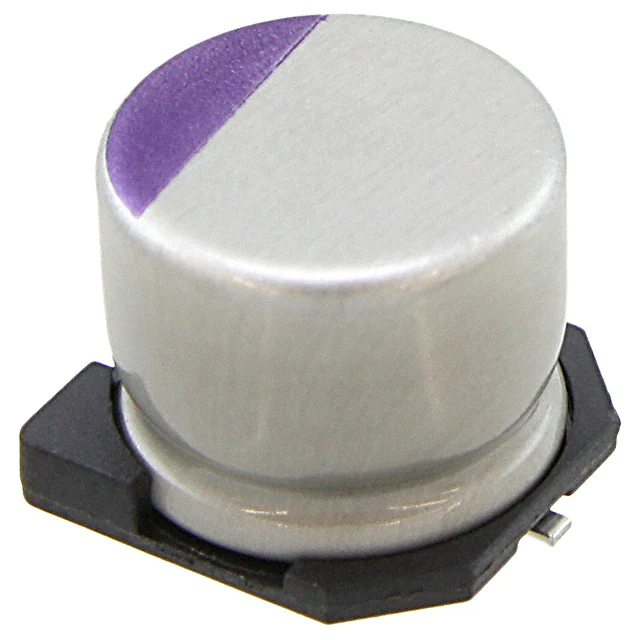

16SVPC150MCAP ALUM POLY 150UF 20% 16V SMD |
7,920 |
|
Datasheet |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
20SEP47M+TSSCAP ALUM POLY 47UF 20% 20V TH |
4,416 |
|
Datasheet |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 94.5 mA @ 120 Hz | 1.89 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
|
A750MV187M1HAAE022CAP ALUM POLY 180UF 20% 50V TH |
2,596 |
|
Datasheet |
A750 | Bulk | Active | Polymer | 180 µF | ±20% | 50 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
|
|
HHXC800ARA470MJA0GCAP ALUM HYBRID 47UF 20% 80V SMD |
1,462 |
|
Datasheet |
HXC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 80 V | 33mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.393" L x 0.433" W (10.00mm x 11.00mm) | 0.413" (10.50mm) | - | Surface Mount |
|
|
A780KS107M1HLAS031CAP ALUMHYB 100UF 20% 50V SMD |
316 |
|
Datasheet |
A780 | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 31mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 352 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZA1H330XVCAP ALUM HYBRID 33UF 20% 50V SMD |
1,108 |
|
Datasheet |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 160 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXB500ARA330MF80GCAP ALUM HYBRID 33UF 20% 50V SMD |
93,062 |
|
Datasheet |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

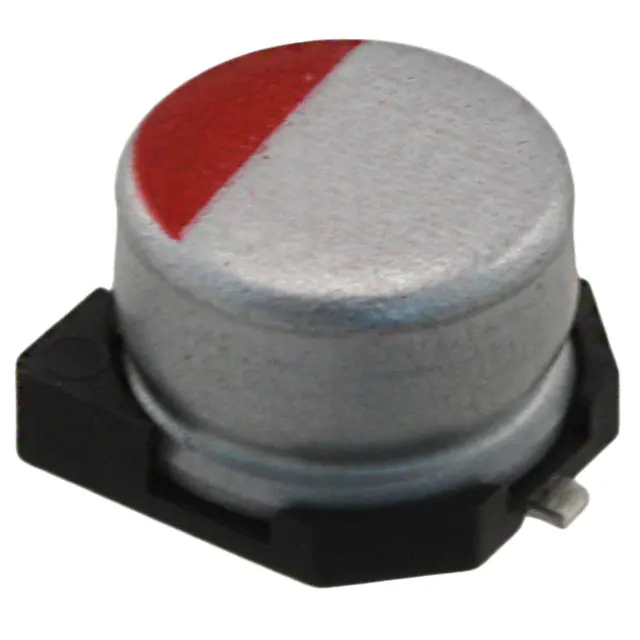

RSL0J101MCN1GBCAP ALUM POLY 100UF 20% 6.3V SMD |
7,430 |
|
Datasheet |
FPCAP, RSL | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 320 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.165" (4.20mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
