Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700X107M008ATE012CAP ALUM POLY 100UF 20% 8V SMD |
2,374 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 8 V | 12mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
16SVPG820MCAP ALUM POLY 820UF 20% 16V SMD |
1,608 |
|
Datasheet |
OS-CON™, SVPG | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 16 V | 9mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 285 mA @ 120 Hz | 5.7 A @ 100 kHz | - | - | - | - | - | Surface Mount |
|
PCV1J470MCL1GSCAP ALUM POLY 47UF 20% 63V SMD |
7,638 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PLV1K100MCL1CAP ALUM POLY 10UF 20% 80V TH |
218 |
|
Datasheet |
PLV | Bulk | Not For New Designs | Polymer | 10 µF | ±20% | 80 V | 40mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PCV1E271MCL1GSCAP ALUM POLY 270UF 20% 25V SMD |
1,916 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 25 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
106XMPL035MG19CAP ALUM POLY 10UF 20% 35V SMD |
3,982 |
|
Datasheet |
XMPL | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Decoupling | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
|
PCV1D331MCL1GSCAP ALUM POLY 330UF 20% 20V SMD |
1,600 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 20 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

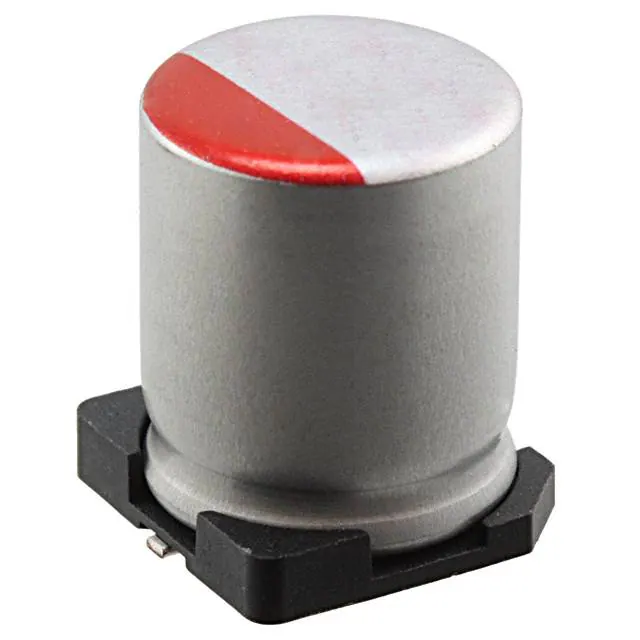

RPS1H820MCN1GSCAP ALUM POLY 82UF 20% 50V SMD |
2,080 |
|
Datasheet |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 50 V | 23mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

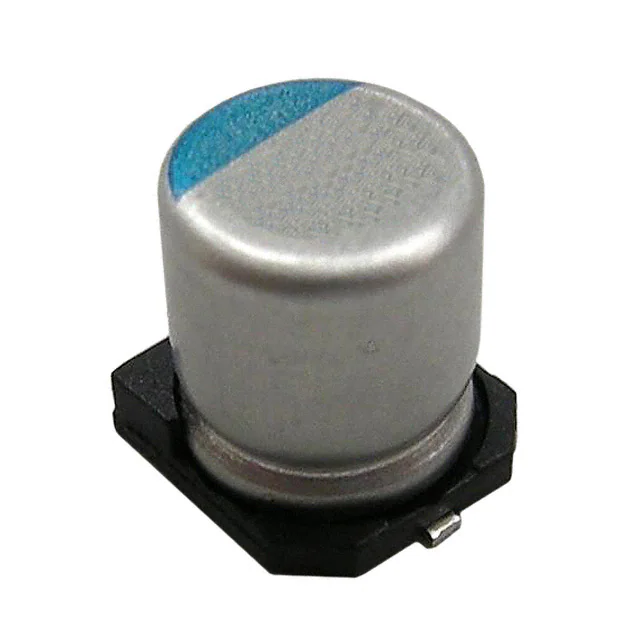

PCZ1V181MCL1GSCAP ALUM POLY 180UF 20% 35V SMD |
1,000 |
|
Datasheet |
PCZ | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXJ160ARA391MH70GCAP ALUM POLY 390UF 20% 16V SMD |
3,728 |
|
Datasheet |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 16 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A700D227M004ATE009CAP ALUM POLY 220UF 20% 4V SMD |
4,000 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCX1C391MCL1GSCAP ALUM POLY 390UF 20% 16V SMD |
4,634 |
|
Datasheet |
PCX | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
72SXE82MCAP ALUM POLY 82UF 20% 72V TH |
524 |
|
Datasheet |
OS-CON™, SXE | Bulk | Active | Polymer | 82 µF | ±20% | 72 V | 28mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 49 mA @ 120 Hz | 980 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PCV1V151MCL1GSCAP ALUM POLY 150UF 20% 35V SMD |
8,730 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 35 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
870135775004CAP ALUM POLY 47UF 20% 50V TH |
530 |
|
Datasheet |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 50 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
72SXV82MCAP ALUM POLY 82UF 20% 72V SMD |
420 |
|
Datasheet |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 72 V | 28mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 49 mA @ 120 Hz | 980 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXA100ARA471MJC0GCAP ALUM POLY 470UF 20% 10V SMD |
2,186 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
A700X127M010ATE010CAP ALUM POLY 120UF 20% 10V SMD |
2,776 |
|
Datasheet |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 4.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
APXA6R3ARA821MJC0GCAP ALUM POLY 820UF 20% 6.3V SMD |
1,480 |
|
Datasheet |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1V121MCL7GSCAP ALUM POLY 120UF 20% 35V SMD |
5,618 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 35 V | 23mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
